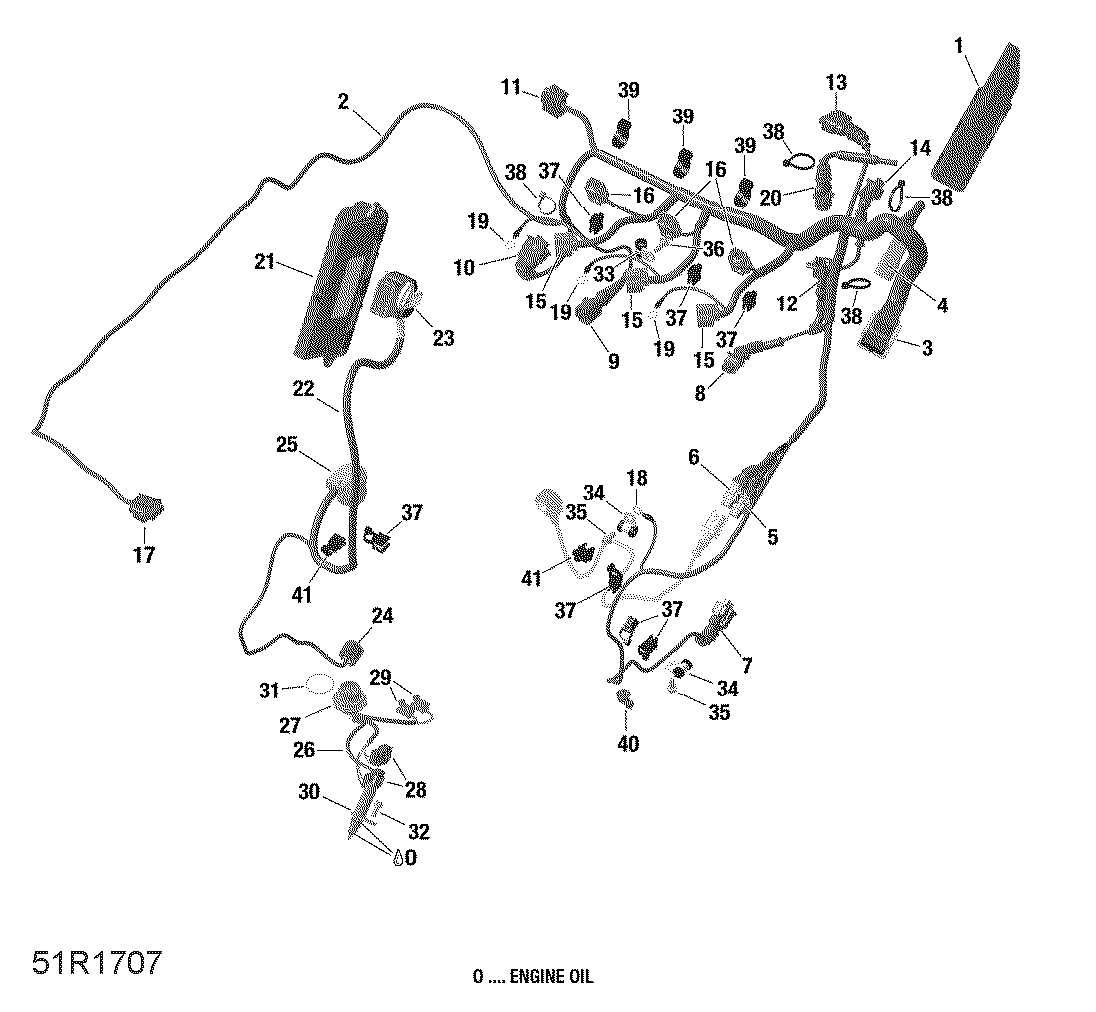

10- Engine Harness and Electronic Module - SM6 для BRP F3 - 2017
-
№АртикулНазвание
-
1420666711 ECM, Engine Controle Module. Built Before Aug 1rst 2016 North America VersionECM, Engine Controle Module. Built Before Aug 1rst 2016 North America Version
-
1420666719 ECM, Engine Controle Module. Built Before Aug 1rst 2016 North Except America VersionECM, Engine Controle Module. Built Before Aug 1rst 2016 North Except America Version
-
1420464232 ECM, Engine Controle Module. Built Aug 1rst 2016 And Up, North America VersionECM, Engine Controle Module. Built Aug 1rst 2016 And Up, North America Version
-
1420666286 ECM, Engine Controle Module. Built Aug 1rst 2016 And Up, Except North America VersionECM, Engine Controle Module. Built Aug 1rst 2016 And Up, Except North America Version
-
2>20420266786 Engine Wiring HarnessEngine Wiring Harness
-
20420666780 Connector CSVConnector CSV
-
21420851493 Cable ClampCable Clamp
-
22420853414 Clamp 5/M6Clamp 5/M6
-
22420851494 Clamp 15/M6Clamp 15/M6
-
23420440147 Flanged Hex. Screw M6 X 12Flanged Hex. Screw M6 X 12
-
24420641588 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
25420951650 Cable ClampCable Clamp
-
26420866714 Tie RapTie Rap
-
27420866716 Tie-RapTie-Rap
-
28420951341 Tie-Rap With MountTie-Rap With Mount
-
29420651810 Tie-Rap With MountTie-Rap With Mount
