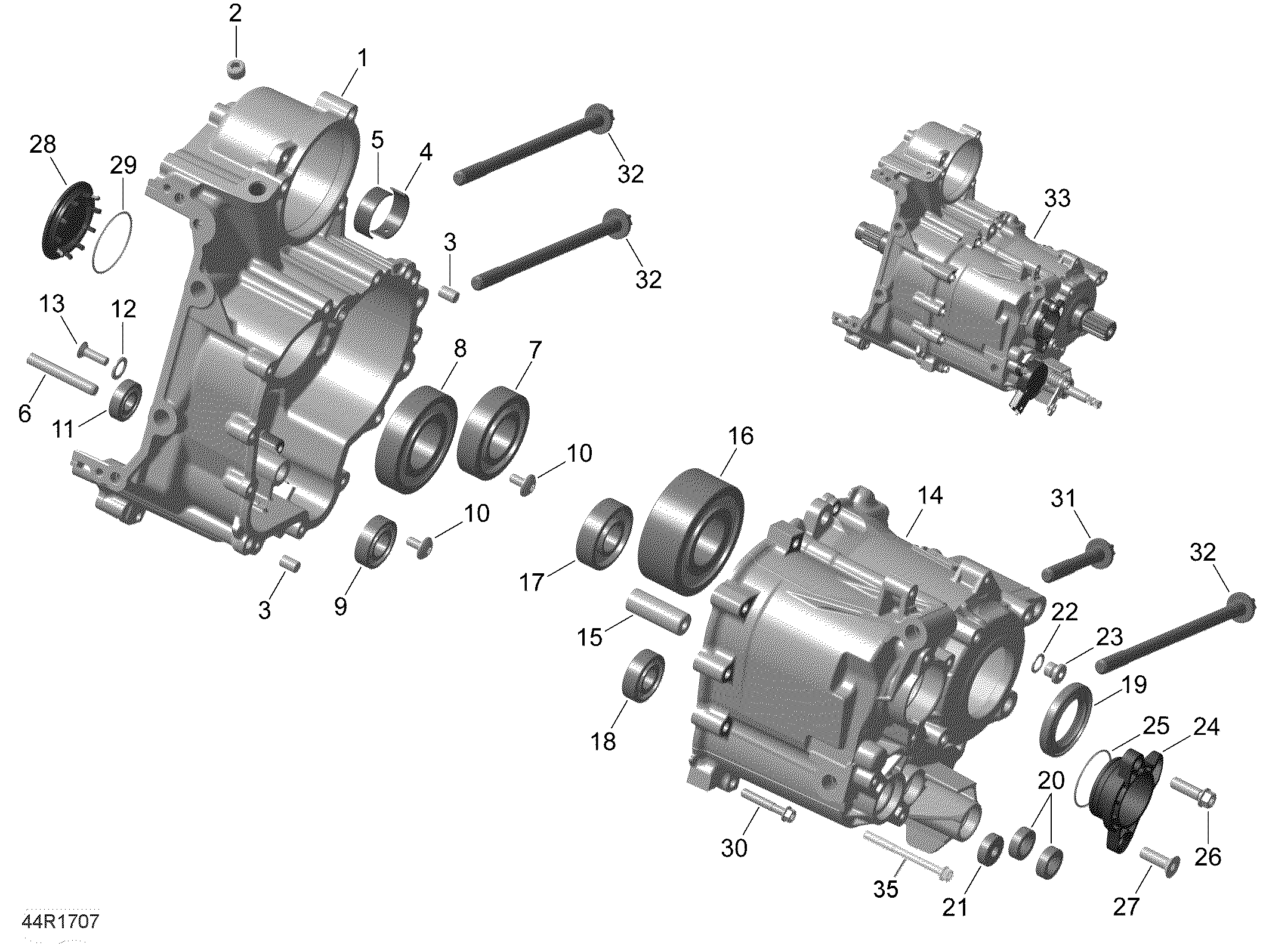

01- Gearbox Housing - SE6 для BRP F3 - 2017
-
№АртикулНазвание
-
1420212693 Gear Housing Ass'y, Clutch Side. Includes 1 to 13Gear Housing Ass'y, Clutch Side. Includes 1 to 13
-
2420840657 Plug Screw M12 X 1.5Plug Screw M12 X 1.5
-
3420632010 Center Pin 8 X 12Center Pin 8 X 12
-
6420229384 Pin 8, M6 X 55Pin 8, M6 X 55
-
7420232782 Ball BearingBall Bearing
-
8420832232 Ball BearingBall Bearing
-
9420232625 Ball BearingBall Bearing
-
10420241535 Hex. Screw M6 X 13Hex. Screw M6 X 13
-
11420232402 Ball BearingBall Bearing
-
12420227085 WasherWasher
-
13420941436 Screw M6 X 20Screw M6 X 20
-
14420212683 Gear Housing Ass'y, PTO Side. Includes 14 to 19. Built Before Aug 1rst 2016Gear Housing Ass'y, PTO Side. Includes 14 to 19. Built Before Aug 1rst 2016
-
15420249050 BoltBolt
-
16420632830 Ball Bearing. Built Before Aug 1rst 2016Ball Bearing. Built Before Aug 1rst 2016
-
16420632832 Ball Bearing. Built Aug 1rst 2016 And UpBall Bearing. Built Aug 1rst 2016 And Up
-
16a420227085 Washer. Not Illustrated Built Aug 1rst 2016 And UpWasher. Not Illustrated Built Aug 1rst 2016 And Up
-
16b420441415 Screw M6 X 12. Not Illustrated Built Aug 1rst 2016 And UpScrew M6 X 12. Not Illustrated Built Aug 1rst 2016 And Up
-
17420932677 Ball BearingBall Bearing
-
18420932290 Ball BearingBall Bearing
-
19420831185 Oil SealOil Seal
-
20420250455 Oil SealOil Seal
-
21420631910 Oil SealOil Seal
-
22420230150 Oil SealOil Seal
-
23420641733 Plug Screw M10 X 1Plug Screw M10 X 1
-
24420211240 Cover SupportCover Support
-
25420230035 O-RingO-Ring
-
26420440209 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
27420941436 Screw M6 X 20Screw M6 X 20
-
28420201050 CoverCover
-
29420831160 O-RingO-Ring
-
30420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
31420441521 Torx Screw M10 X 65Torx Screw M10 X 65
-
32420640136 Torx Screw M10 X 175Torx Screw M10 X 175
-
33420686475 Gearbox. Built Before Aug 1rst 2016Gearbox. Built Before Aug 1rst 2016
-
33420686481 Gearbox. Built Aug 1rst 2016 And UpGearbox. Built Aug 1rst 2016 And Up
-
35420440602 Flanged Torx Screw M6 X 65Flanged Torx Screw M6 X 65
