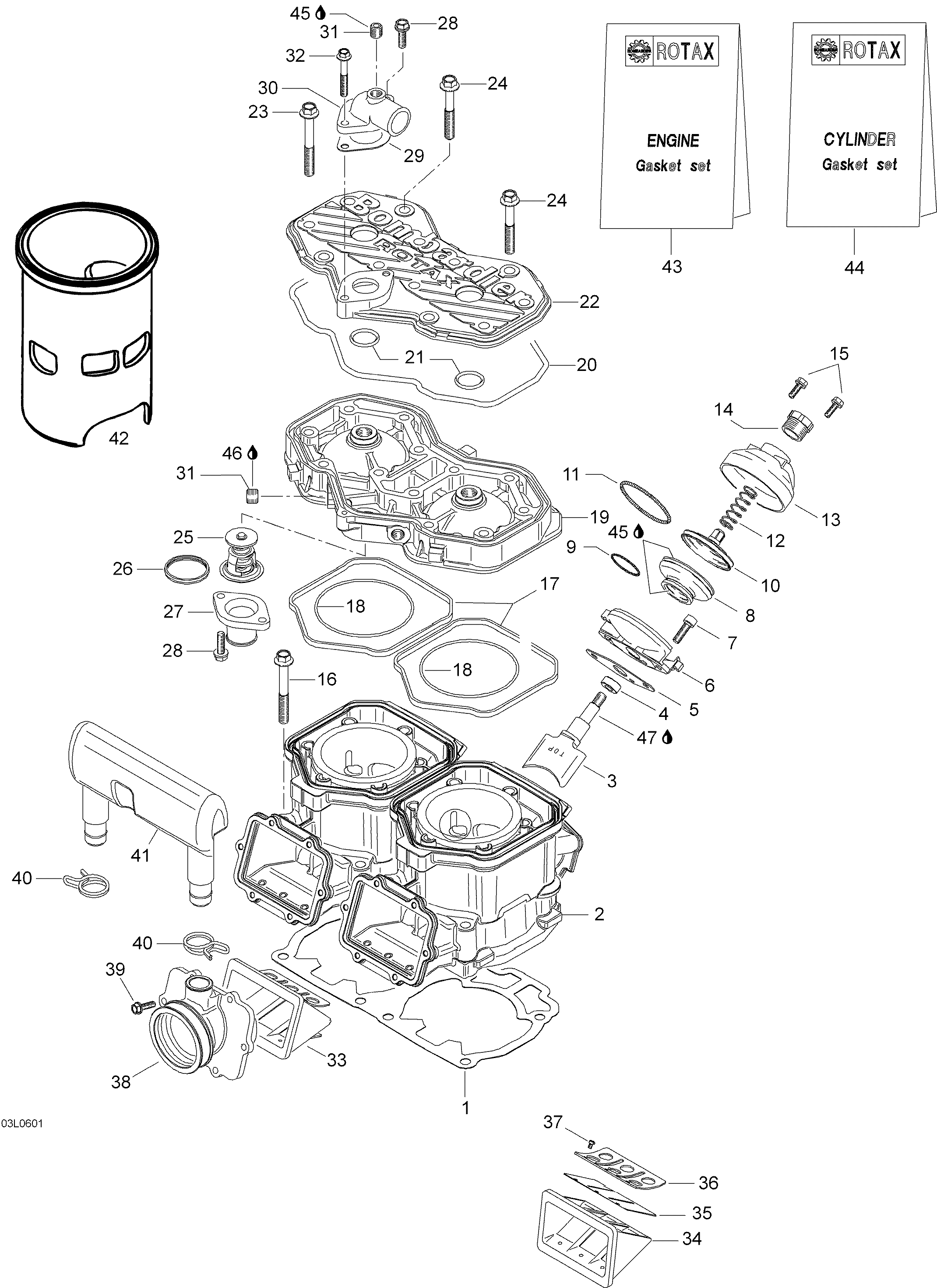

01- Cylinder для BRP Lynx Ranger 600 - 2006
-
№АртикулНазвание
-
1420931581 Base gasket 0.4 mmBase gasket 0.4 mm
-
1420931583 Base gasket 0.5 mmBase gasket 0.5 mm
-
1420931582 Base gasket 0.6 mmBase gasket 0.6 mm
-
1420931962 Base gasket 0.7 mmBase gasket 0.7 mm
-
1420931584 Base gasket 0.8 mmBase gasket 0.8 mm
-
2420613627 Cylinder with sleeveCylinder with sleeve
-
3420854370 Exhaust valveExhaust valve
-
4420950730 Oil sealOil seal
-
5420250239 GasketGasket
-
6420854266 Valve rod housingValve rod housing
-
7205062044 Socket head screw M6 x 20Socket head screw M6 x 20
-
8420260723 BellowsBellows
-
9420838255 Spring clampSpring clamp
-
10420854449 Exhaust valveExhaust valve
-
11420939280 Hose springHose spring
-
12420239944 Spring, brownSpring, brown
-
13420911552 Valve coverValve cover
-
14420241220 Adjuster screwAdjuster screw
-
15420841555 Taptite screw M5 x 20Taptite screw M5 x 20
-
16420640951 Hex. screw M8 x 68.5Hex. screw M8 x 68.5
-
17420931590 Rubber ringRubber ring
-
18420850540 O-ringO-ring
-
19420923454 Cylinder headCylinder head
-
20420950320 O-ringO-ring
-
21420430782 O-ringO-ring
-
22420923460 Cylinderhead cover (silver)Cylinderhead cover (silver)
-
23420841306 Hex. collar screw M8 x 65Hex. collar screw M8 x 65
-
24420941621 Hex. collar screw M8 x 56.5Hex. collar screw M8 x 56.5
-
25420922519 ThermostatThermostat
-
26420931272 Sealing ringSealing ring
-
27420922025 Bent outlet socketBent outlet socket
-
28420941250 Taptite screw M6 x 20Taptite screw M6 x 20
-
29420850338 GasketGasket
-
30420922062 Bent outlet socketBent outlet socket
-
31420240480 Plug screw 1/8-27 NPTPlug screw 1/8-27 NPT
-
32420941451 Hex. Collar screw M6 x 40Hex. Collar screw M6 x 40
-
33420924519 Reed vale ass'y. Includes 33 to 37Reed vale ass'y. Includes 33 to 37
-
35420924532 Pedal reedPedal reed
-
36420924539 Reed pedal stopReed pedal stop
-
37420941215 Screw M3 x 5Screw M3 x 5
-
38420867882 Carburetor socketCarburetor socket
-
39420941925 Screw M5 x 16Screw M5 x 16
-
40420851440 ClampClamp
-
41420867817 Intake resonatorIntake resonator
-
42420923443 Cylinder sleeveCylinder sleeve
-
43420888584 Engine gasket setEngine gasket set
-
44420888588 Cylinder gasket setCylinder gasket set
-
45413707000 Molykote 111Molykote 111
-
46420899785 Loctite 221, 10ccLoctite 221, 10cc
-
47420297433 Molykote G-N slide pasteMolykote G-N slide paste
