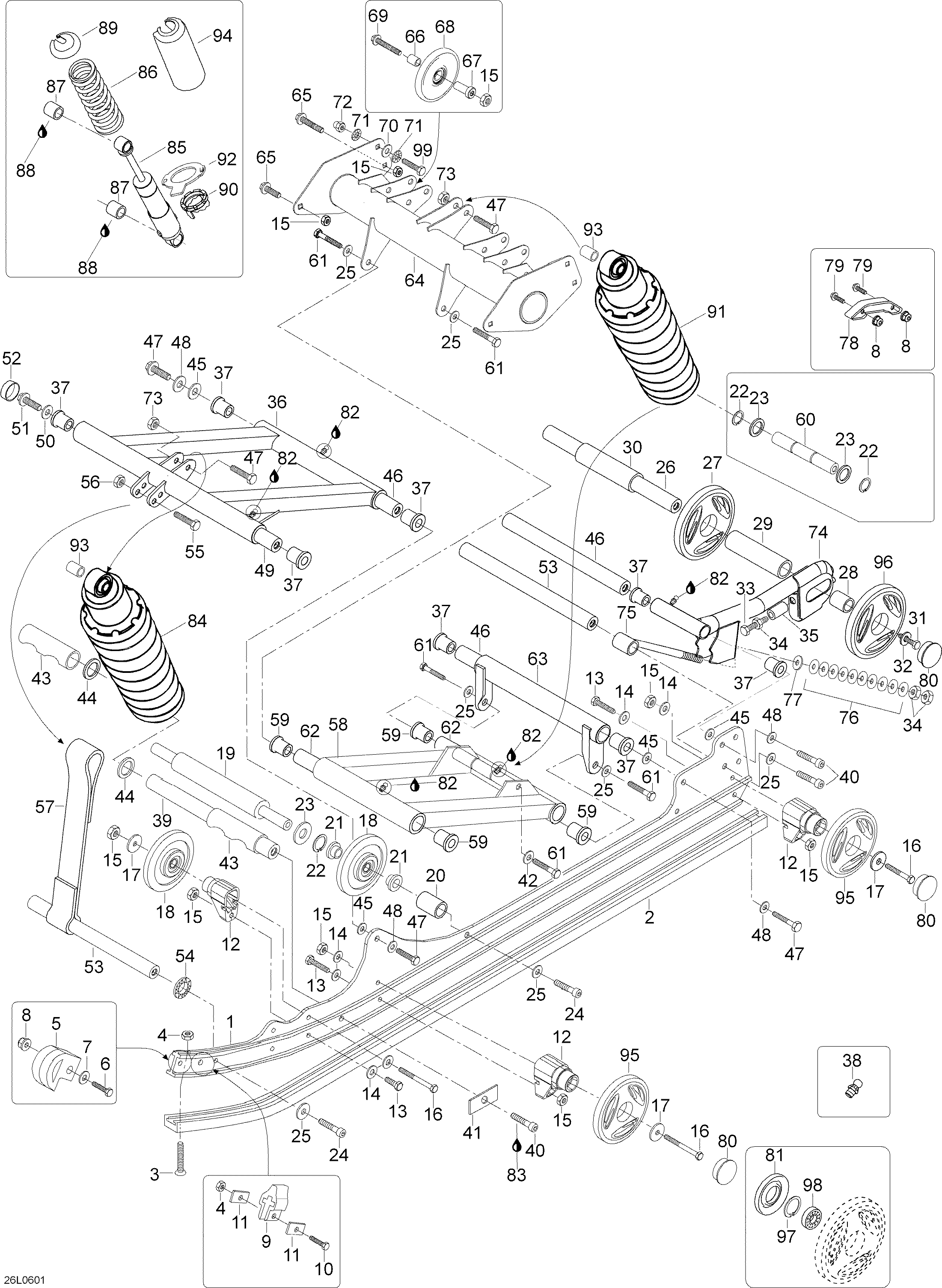

08- Rear Suspension для BRP Lynx Ranger 600 - 2006
-
№АртикулНазвание
-
1605253573 RunnerRunner
-
25347724 Runner shoeRunner shoe
-
340059 Allen screw M6 x 60Allen screw M6 x 60
-
433010 Elastic stop nut M6Elastic stop nut M6
-
5605348954 Runner protectorRunner protector
-
640031 Screw M6 x 25Screw M6 x 25
-
720003 WasherWasher
-
833200 Elastic flanged nut M8Elastic flanged nut M8
-
95442328 Rubber StopperRubber Stopper
-
1040032 Screw M6 x 30Screw M6 x 30
-
11548470 Support plateSupport plate
-
12605450182 SupportSupport
-
1340037 Screw M8 x 25Screw M8 x 25
-
1420104 Washer, hardened M8Washer, hardened M8
-
1533011 Nut elastic M8Nut elastic M8
-
1640089 Screw M8 x 75Screw M8 x 75
-
17503183100 Washer, hardened M8Washer, hardened M8
-
18503191029 Wheel 135/blackWheel 135/black
-
195347949 ShaftShaft
-
205447951 SleeveSleeve
-
21503189534 InsertInsert
-
2231007 CirclipCirclip
-
2331091 ShimShim
-
2440134 Socket head screw M10 x 45Socket head screw M10 x 45
-
2520105 Washer, hardened M10Washer, hardened M10
-
265445986 Rear shaftRear shaft
-
27503189478 Idler Wheel 165/BlackIdler Wheel 165/Black
-
285444098 SpacerSpacer
-
295444096 SpacerSpacer
-
305444097 SpacerSpacer
-
3140050 Hex. screw M10 x 35Hex. screw M10 x 35
-
32503183300 Washer, hardened M10Washer, hardened M10
-
3340239 Hex. screw M10 x 100Hex. screw M10 x 100
-
3433004 Nut M10Nut M10
-
35605452332 SleeveSleeve
-
365145588 Front armFront arm
-
3731024 CushionCushion
-
3834011 Crease nippleCrease nipple
-
395347633 Shaft, shockShaft, shock
-
4040536 Allen screw M10 x 45Allen screw M10 x 45
-
415447940 Support plateSupport plate
-
4220068 Lock washer D10Lock washer D10
-
435346649 LimiterLimiter
-
4431013 ShimShim
-
4520116 WasherWasher
-
465346900 ShaftShaft
-
4740016 Hex. screw M10 x 45Hex. screw M10 x 45
-
48512056700 Lock washerLock washer
-
495346135 ShaftShaft
-
5020090 Lock washerLock washer
-
5140243 Hex. screw M12 x 60Hex. screw M12 x 60
-
525448025 capcap
-
535343471 ShaftShaft
-
544181158 Snapp ringSnapp ring
-
5540008 Hex. screw M8 x 45Hex. screw M8 x 45
-
5633011 Elastic stop nut M8Elastic stop nut M8
-
575447919 Stopper strapStopper strap
-
58605349313 Rear arm weldedRear arm welded
-
5931027 CushionCushion
-
60605451897 ShaftShaft
-
6140014 Hex. screw M10 x 40Hex. screw M10 x 40
-
625346865 ShaftShaft
-
635345535 Rear arm weldedRear arm welded
-
64605249274 Upper armUpper arm
-
6540058 Locking screw M8 x 20Locking screw M8 x 20
-
665447945 SleeveSleeve
-
675447946 SleeveSleeve
-
6846027 Idler wheelIdler wheel
-
6940264 Hex. screw M8 x 90Hex. screw M8 x 90
-
7020077 Washer A8,4Washer A8,4
-
7120072 Lock washerLock washer
-
7233044 Nut M8Nut M8
-
7333012 Elastic stop nut M10Elastic stop nut M10
-
74605251780 R.H. ExtensionR.H. Extension
-
74605251779 L.H. ExtensionL.H. Extension
-
755447373 Eye bolt adjusterEye bolt adjuster
-
7625004 PlatePlate
-
7720011 WasherWasher
-
785343191 ProtectorProtector
-
7940064 Locking screw M6 x 40Locking screw M6 x 40
-
80570063600 ProtectorProtector
-
81572089000 Labyrinth sealLabyrinth seal
-
82293550033 Synthetic greaseSynthetic grease
-
83293800060 Loctite 243, 10mlLoctite 243, 10ml
-
84605348905 Shock assy, front. Includes 84 to 90Shock assy, front. Includes 84 to 90
-
8523159 Shock assy, frontShock assy, front
-
8523160 Shock assy, rearShock assy, rear
-
8625058 Spring, centerSpring, center
-
8625063 Spring, rearSpring, rear
-
8731094 CushionCushion
-
88320006 Loctite 641, 50mlLoctite 641, 50ml
-
89230076 Spring seatSpring seat
-
90230078 Adjusting camAdjusting cam
-
91605348907 Shock assy, rear. Includes 84 to 90 and 92Shock assy, rear. Includes 84 to 90 and 92
-
92605348748 Adjuster camAdjuster cam
-
935446652 SleeveSleeve
-
945346754 ProtectorProtector
-
95503190797 Idler wheel 135/Full MoonIdler wheel 135/Full Moon
-
96503190856 Idler wheel 165/Full MoonIdler wheel 165/Full Moon
-
98503190795 Ball bearingBall bearing
-
9940118 Screw M8 x 25Screw M8 x 25
