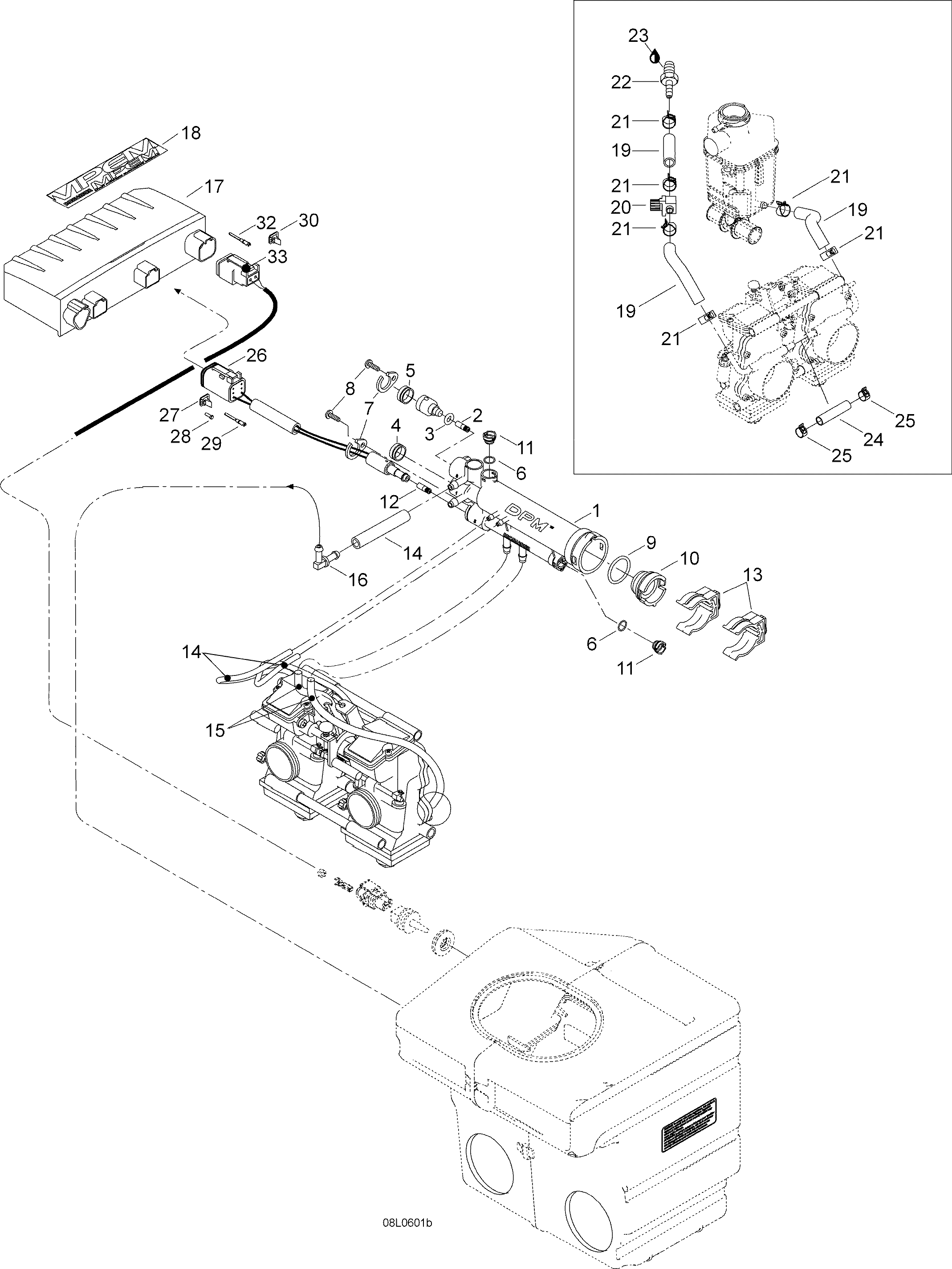

01- DPM для BRP Lynx Ranger 600 - 2006
-
№АртикулНазвание
-
1512059496 Pressure manifold assy. Includes 1 to 12Pressure manifold assy. Includes 1 to 12
-
3512059558 O-ringO-ring
-
4512058982 CapCap
-
5512059557 CapCap
-
6512058925 O-ringO-ring
-
7415061600 Solenoid lockSolenoid lock
-
8241140060 Screw K40 x 10Screw K40 x 10
-
9512058950 O-ringO-ring
-
10512058949 CapCap
-
11512058921 CapCap
-
12404161825 Starter jetStarter jet
-
13512058919 Support (to pressure manifold)Support (to pressure manifold)
-
1439004 HoseHose
-
1539030 HoseHose
-
16414580600 Male connectorMale connector
-
17605353164 Calibration moduleCalibration module
-
18516000245 Decal, MPEMDecal, MPEM
-
19509000093 HoseHose
-
20512059324 VentilVentil
-
21414655700 ClampClamp
-
22293710082 Straight fittingStraight fitting
-
23293800018 Loctite 592, 50mlLoctite 592, 50ml
-
24404161956 HoseHose
-
26515175673 Female connector housingFemale connector housing
-
27515175678 LockLock
-
28293000052 PlugPlug
-
29278000632 Female connectorFemale connector
-
30515175706 Female lockFemale lock
-
31515175670 Female connector housingFemale connector housing
-
32278000632 Female terminalFemale terminal
