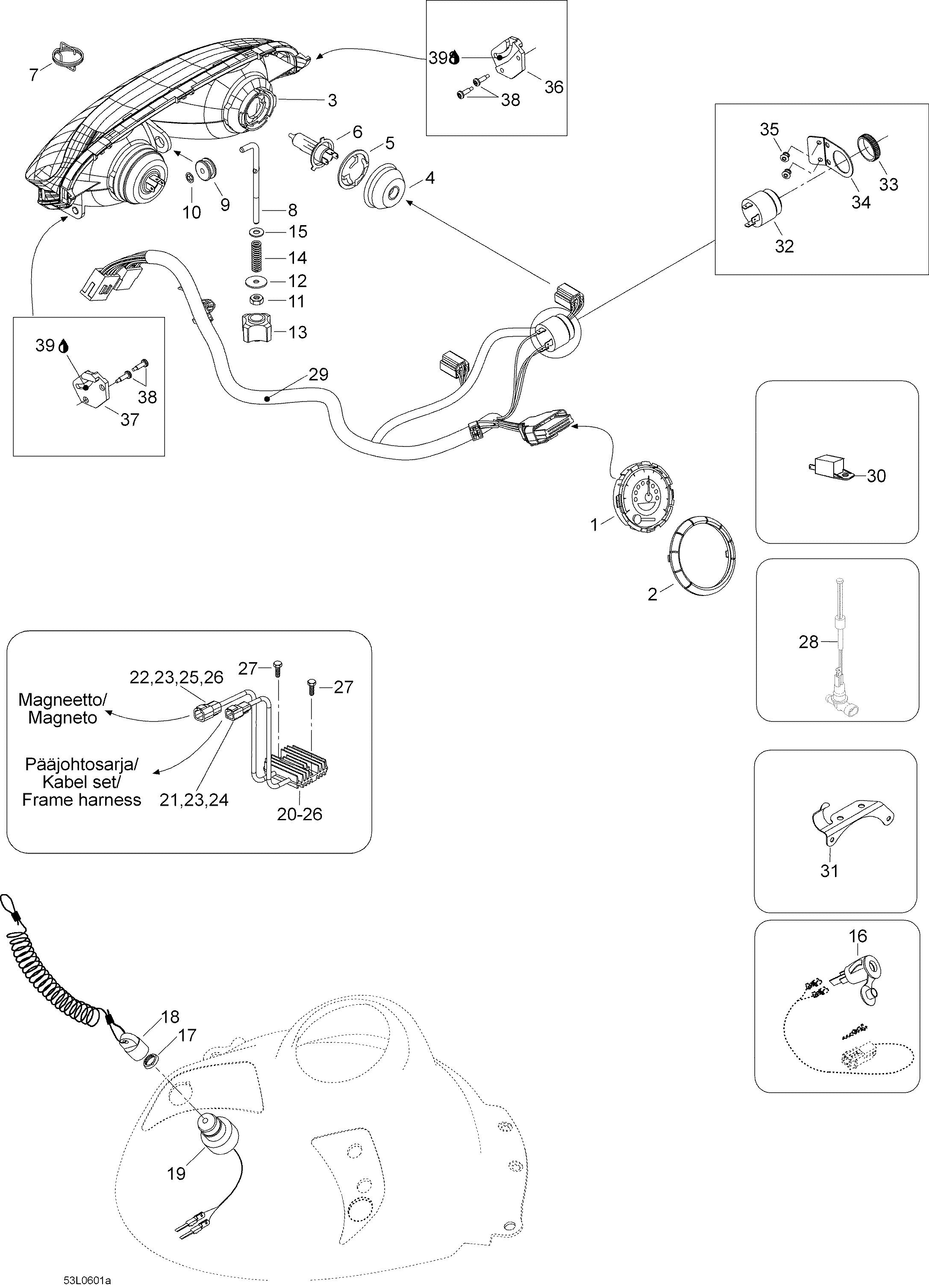

10- Electrical Acessories для BRP Lynx Ranger 600 - 2006
-
№АртикулНазвание
-
1515176301 Speedometer, whiteSpeedometer, white
-
2515175651 RingRing
-
3515176273 Halogen headlamp ass'y. Includes 3 to 6Halogen headlamp ass'y. Includes 3 to 6
-
4410607100 CoverCover
-
5410608300 Bulb holderBulb holder
-
6410504401 Halogen bulb 60/55WHalogen bulb 60/55W
-
75447238 SpringSpring
-
8517295800 Adjuster RodAdjuster Rod
-
9415100800 GrommetGrommet
-
10732610072 Nut PushNut Push
-
11515175548 HandleHandle
-
1220038 WasherWasher
-
1333010 Elastic stop nut M6Elastic stop nut M6
-
14415100600 SpringSpring
-
1520003 Washer A6,4Washer A6,4
-
1642026 Flush mounted socket1Flush mounted socket1
-
17278000508 NutNut
-
18515166900 Cap ass'y, DESSCap ass'y, DESS
-
19515175797 D.E.S.S. SwitchD.E.S.S. Switch
-
20515175968 Voltage regulator. Includes 20 to 26Voltage regulator. Includes 20 to 26
-
21278001477 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
22278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
23515175568 Female TerminalFemale Terminal
-
24278001478 Male Lock, 4 CircuitMale Lock, 4 Circuit
-
25278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
26293000052 Sealing CapSealing Cap
-
2740867 Self taapping screw M6 x 30Self taapping screw M6 x 30
-
28605452095 SensorSensor
-
29605348931 Wiring harness, headlampWiring harness, headlamp
-
30410113200 RelayRelay
-
31515175254 Cable supportCable support
-
32515176035 DC-hornDC-horn
-
33414805101 Ring nutRing nut
-
345447941 BracketBracket
-
3536005 RivetRivet
-
36517289300 R.H. Headlamp supportR.H. Headlamp support
-
37517289400 L.H. headlamp supportL.H. headlamp support
-
3840177 Screw B4,8 x 16Screw B4,8 x 16
-
39413707500 Grease, 400gGrease, 400g
