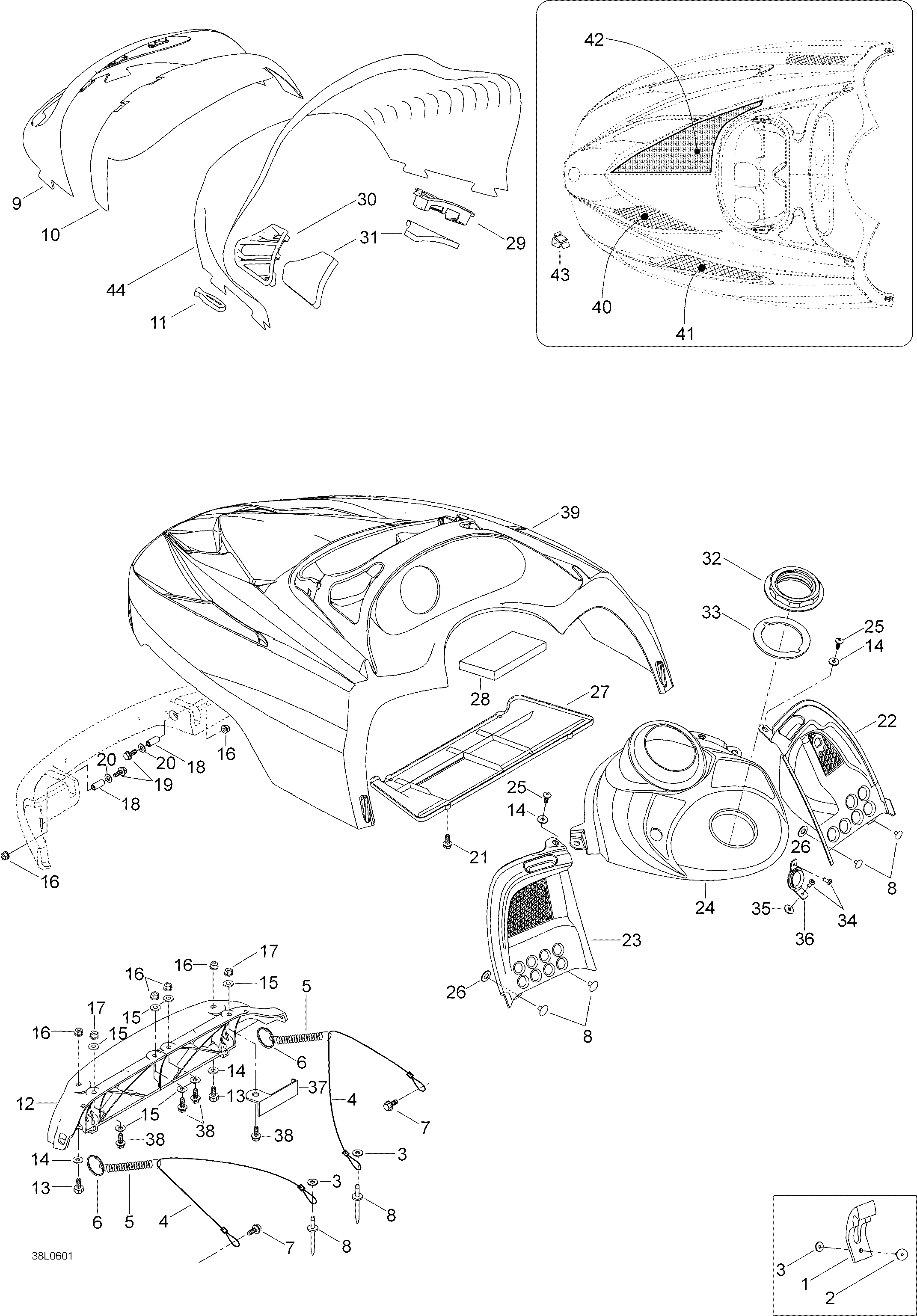

09- Hood для BRP Lynx Ranger 600 - 2006
-
№АртикулНазвание
-
1570027100 LatchLatch
-
236037 RivetRivet
-
320008 Washer A5,3Washer A5,3
-
4549882 Retainer cableRetainer cable
-
5415043300 SpringSpring
-
6415058300 RingRing
-
740177 Screw B4,8 x 16Screw B4,8 x 16
-
836036 RivetRivet
-
9517302158 Moulding Head LampMoulding Head Lamp
-
10517302003 Windshield supportWindshield support
-
11570023800 LatchLatch
-
12517302631 Hinge halfHinge half
-
1340381 Socket head screw M6 x 20Socket head screw M6 x 20
-
1420117 WasherWasher
-
1520009 Washer A6,4Washer A6,4
-
1633200 Elastic flanged nut M6Elastic flanged nut M6
-
1733010 Elastic stop nut M6Elastic stop nut M6
-
18517302179 BushingBushing
-
1940003 Hex. screw M6 x 35Hex. screw M6 x 35
-
2020003 Washer A6,4Washer A6,4
-
21243141640 Screw, Plastite M4.8 x 16Screw, Plastite M4.8 x 16
-
22517302005 R.H. ConsolR.H. Consol
-
23517302006 L.H. ConsolL.H. Consol
-
24517302729 ConsolConsol
-
25732600030 ScrewScrew
-
2620002 Washer A5,3Washer A5,3
-
27517302836 Air intake plateAir intake plate
-
28605350268 FilterFilter
-
29517302024 R.H. Grill-air intakeR.H. Grill-air intake
-
30517302025 L.H. Grill-air intakeL.H. Grill-air intake
-
31605450267 FilterFilter
-
32517302043 NutNut
-
335447116 GasketGasket
-
3436002 RivetRivet
-
35517302286 Rubber stopperRubber stopper
-
36517302129 Rope guideRope guide
-
375448263 R.H. Support plateR.H. Support plate
-
375448264 L.H. Support plateL.H. Support plate
-
3840030 Hex. screw M6 x 20Hex. screw M6 x 20
-
39605152624 Hood, pre ass'y, Earth Grey Metallic. Includes 39 to 43Hood, pre ass'y, Earth Grey Metallic. Includes 39 to 43
-
405346887 L.H. Front grillL.H. Front grill
-
405346888 R.H. Front grillR.H. Front grill
-
415346889 L.H. Rear grillL.H. Rear grill
-
415346890 R.H. Rear grillR.H. Rear grill
-
43517302785 ClampClamp
-
44605151153 Windshield, extra highWindshield, extra high
-
48605349179 Heat protectorHeat protector
