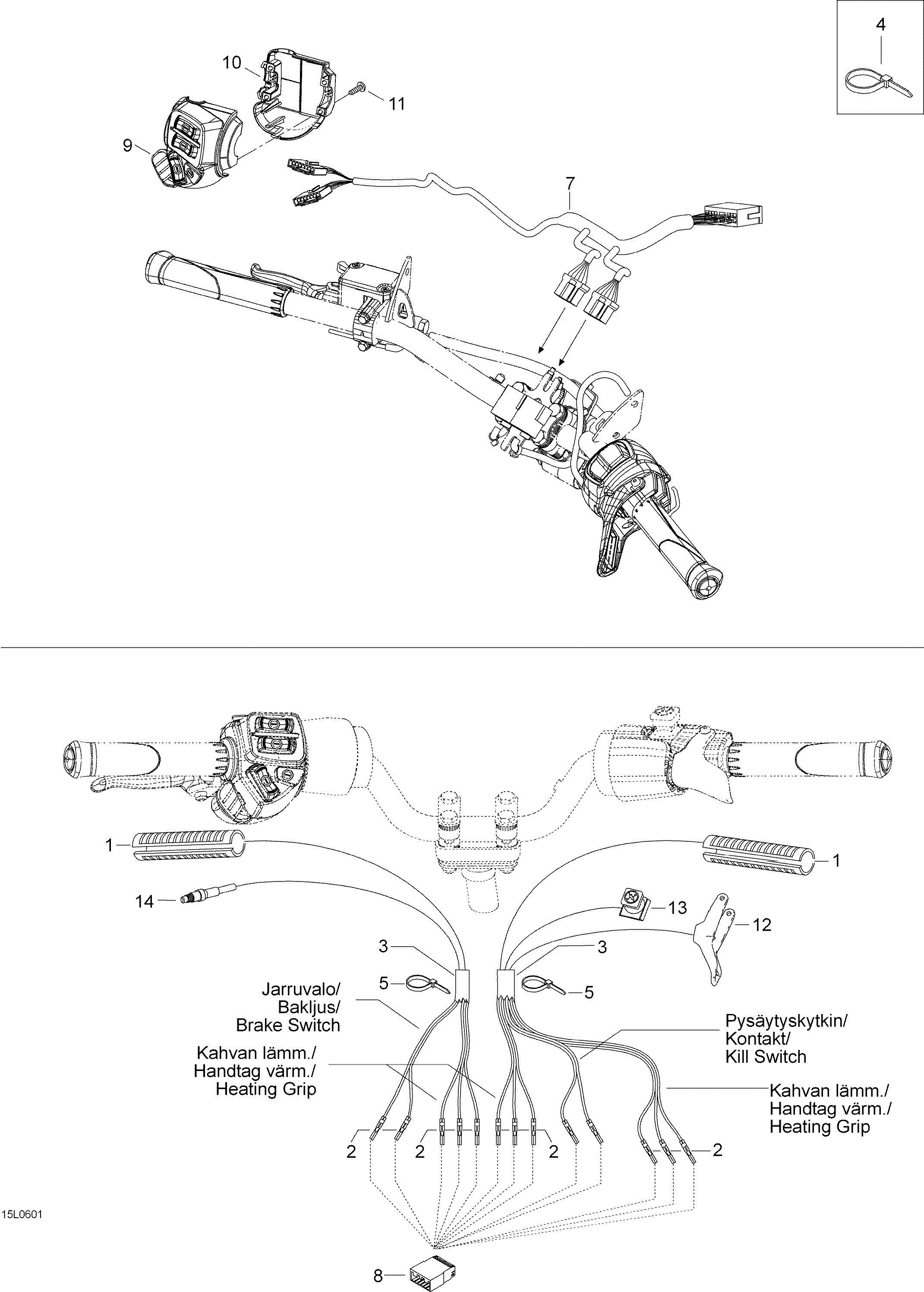

10- Steering Harness для BRP Lynx Ranger 600 - 2006
-
№АртикулНазвание
-
1515175657 HeaterHeater
-
2605642628 ConnectorConnector
-
339023 TubingTubing
-
427010 Tie-rap 98mmTie-rap 98mm
-
527100 Tie-rap 363mmTie-rap 363mm
-
6605353217 Wiring harness. Not shown in this pictureWiring harness. Not shown in this picture
-
7
-
842617 Male connector housing (15 circuits)Male connector housing (15 circuits)
-
9515176062 Brake housingBrake housing
-
10515175926 CoverCover
-
1140903 Plastofast-screw 3.5 x 25Plastofast-screw 3.5 x 25
-
12512059107 Throttle handleThrottle handle
-
13515175410 Switch killSwitch kill
-
14507032366 Microswitch ass'yMicroswitch ass'y
