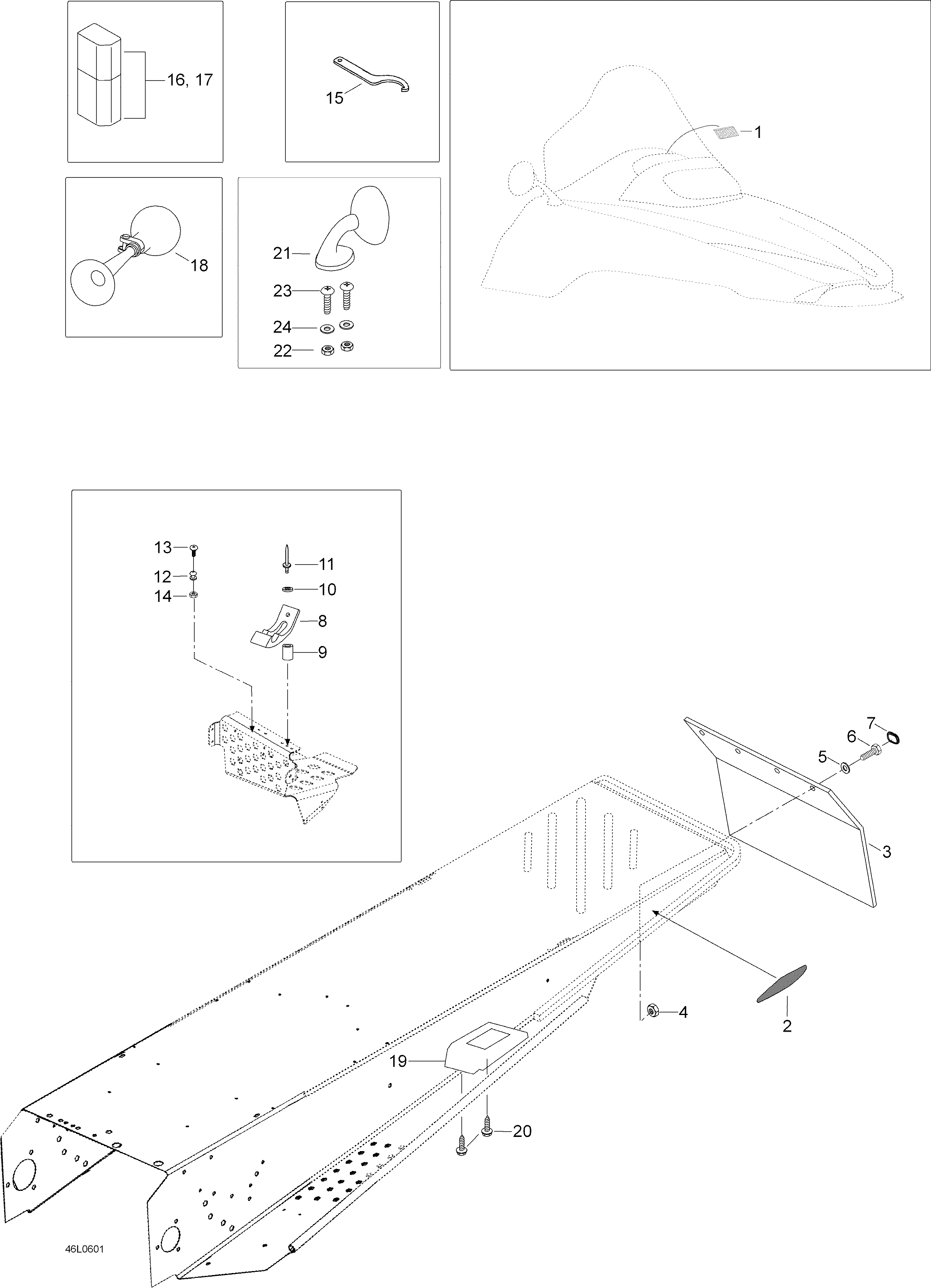

09- Utilities для BRP Lynx Ranger 600 - 2006
-
№АртикулНазвание
-
121060 Reflector, brightReflector, bright
-
221135 Reflector, yellowReflector, yellow
-
35246860 Snow quardSnow quard
-
433200 Elastic flanged nut M6Elastic flanged nut M6
-
520009 Washer A6,4Washer A6,4
-
640078 Screw M6 x 22Screw M6 x 22
-
7415073300 CapCap
-
8531955 LatchLatch
-
9543417 SleeveSleeve
-
10543392 WasherWasher
-
1136072 RivetRivet
-
12605449087 Counter rollCounter roll
-
1340168 Screw M4 x 25Screw M4 x 25
-
1433008 Elastic stop nut M4Elastic stop nut M4
-
15529032900 Wrench adjustWrench adjust
-
16605350525 Tool setTool set
-
17572036310 Tool boxTool box
-
1821003 HornHorn
-
19572088700 R.H. GT SE Foot RestR.H. GT SE Foot Rest
-
19572088800 L.H. GT SE Foot RestL.H. GT SE Foot Rest
-
2040870 ScrewScrew
-
21414971910 R.H. MirrorR.H. Mirror
-
21414972010 L.H. MirrorL.H. Mirror
-
2233008 Elastic stop nut M4Elastic stop nut M4
-
2340167 Screw M4 x 16Screw M4 x 16
-
2420001 Washer A4,3Washer A4,3
