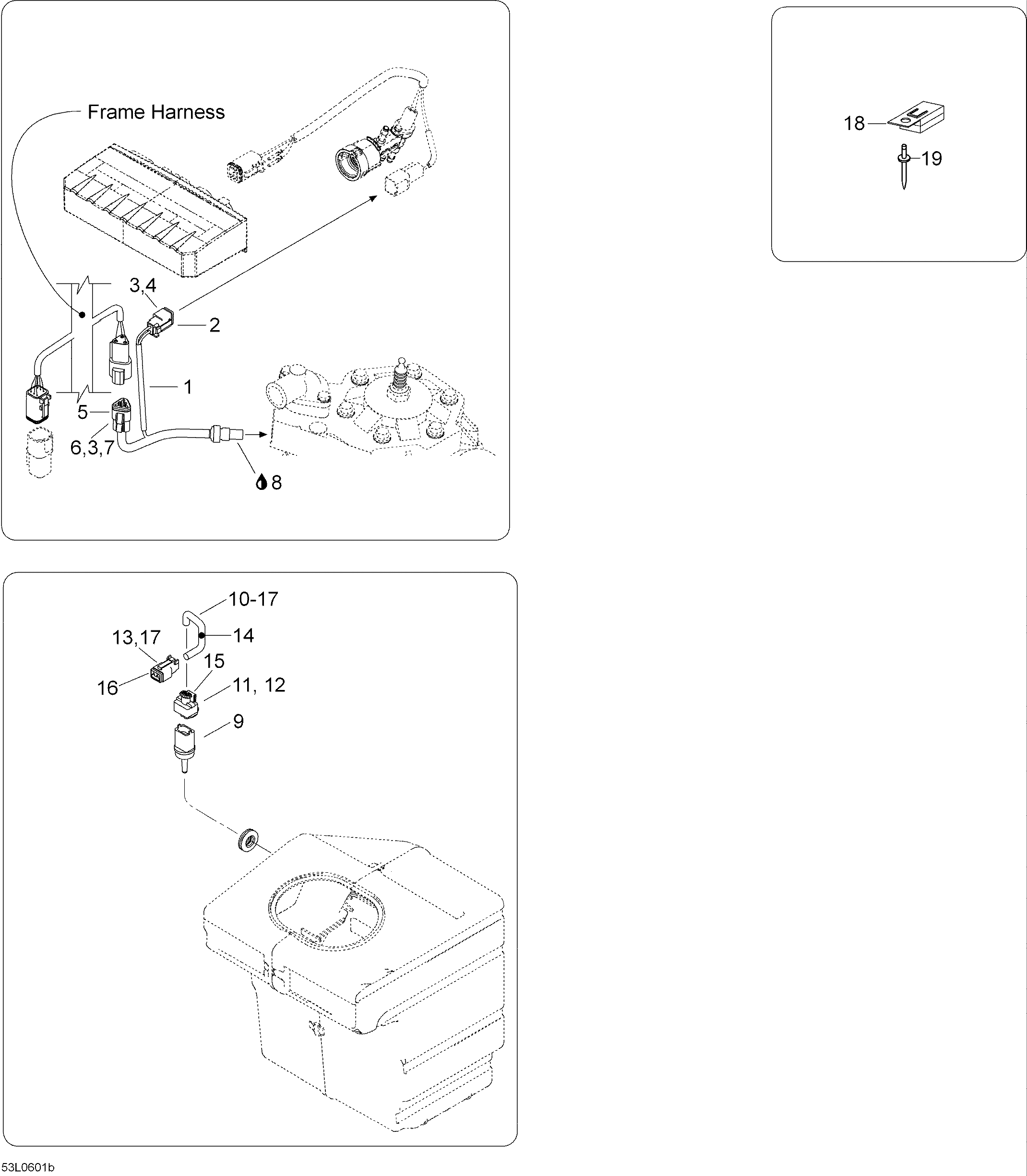

10- Electrical Acessories для BRP Lynx Ranger 600 - 2006
-
№АртикулНазвание
-
1515176041 SenderSender
-
2515175670 Female termina housing (2-circuits)Female termina housing (2-circuits)
-
3278000632 Female terminalFemale terminal
-
4515175675 Female lock (2-circuits)Female lock (2-circuits)
-
5515175671 Female terminal housing (3-circuits)Female terminal housing (3-circuits)
-
6515175676 Female terminal (3-circuits)Female terminal (3-circuits)
-
7293000052 PlugPlug
-
8293800018 Loctite 592, 50mlLoctite 592, 50ml
-
9270600000 Air sensorAir sensor
-
10515175703 Wiring harness ass'y. Includes 10 to 17Wiring harness ass'y. Includes 10 to 17
-
11278000998 Female terminalFemale terminal
-
12278000999 SealSeal
-
13278000632 Female terminalFemale terminal
-
14515175332 TubingTubing
-
15515175588 Female terminal housing (2-circuits)Female terminal housing (2-circuits)
-
16515175670 Female terminal housing (2-circuits)Female terminal housing (2-circuits)
-
17515175706 Female lock (2-circuits)Female lock (2-circuits)
-
1842272 Fuse holderFuse holder
-
1936491 RivetRivet
