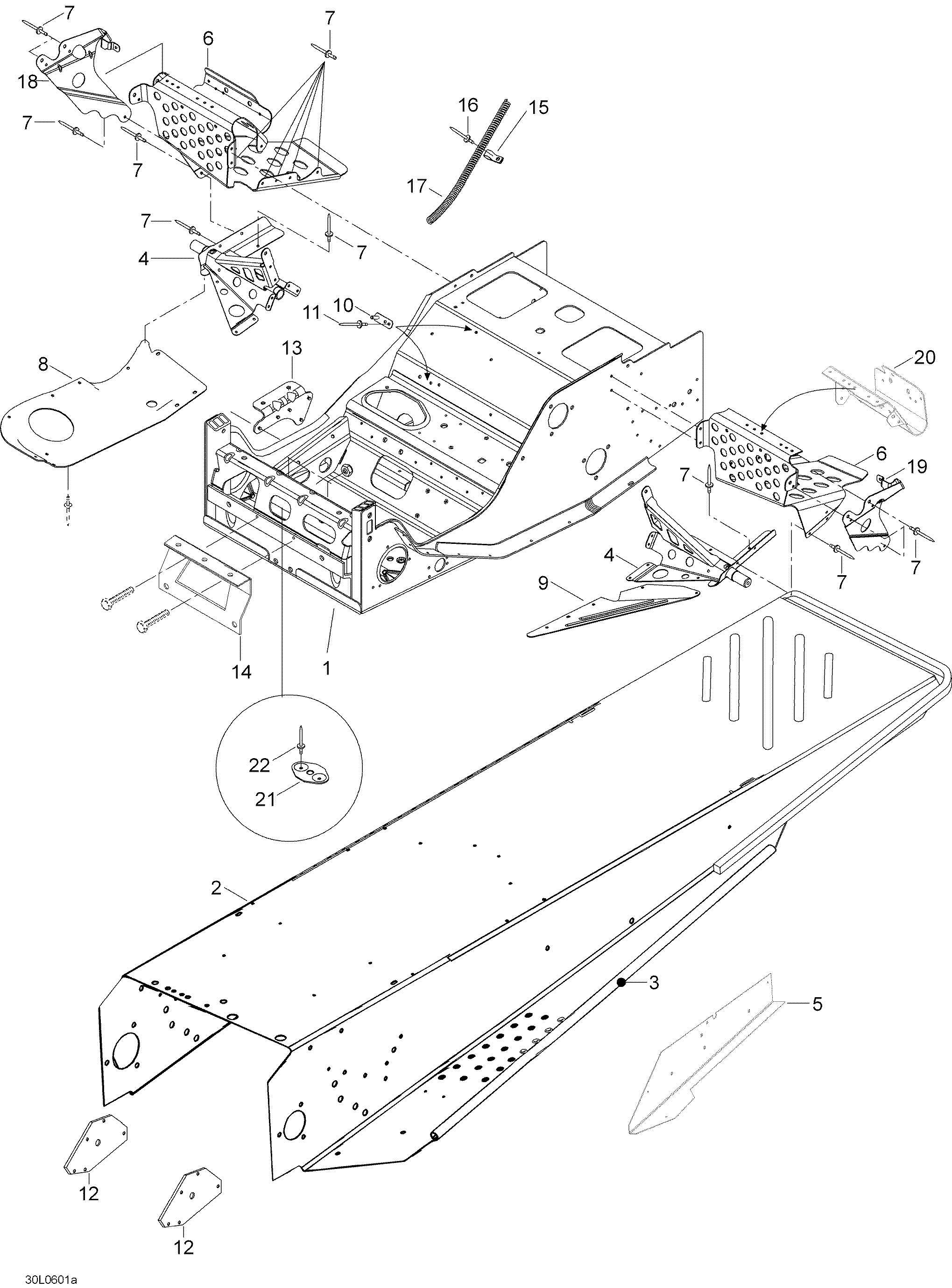

09- Frame для BRP Lynx Ranger 600 - 2006
-
№АртикулНазвание
-
1605152340 Frame ass'yFrame ass'y
-
4605151358 R.H. supportR.H. support
-
4605151359 L.H. supportL.H. support
-
5605350426 L.H. SupportL.H. Support
-
5605350427 R.H.SupportR.H.Support
-
6605250239 R.H. front footrestR.H. front footrest
-
6605250240 L.H. front footrestL.H. front footrest
-
736083 RivetRivet
-
8518319760 R.H. bottom pan plateR.H. bottom pan plate
-
9605349267 L.H. reinf. plateL.H. reinf. plate
-
10518319728 Double bracketDouble bracket
-
1136489 RivetRivet
-
125348321 SupportSupport
-
13518322635 BracketBracket
-
145346111 Support plateSupport plate
-
1527092 ClampClamp
-
1636036 RivetRivet
-
17518321569 Rope guideRope guide
-
185146912 R.H. footrest reinforcem.R.H. footrest reinforcem.
-
195146913 L.H. footrest reinforcem.L.H. footrest reinforcem.
-
205146917 R.H. toe holdR.H. toe hold
-
205146918 R.H. toe holdR.H. toe hold
-
21518201307 BracketBracket
-
2236489 RivetRivet
