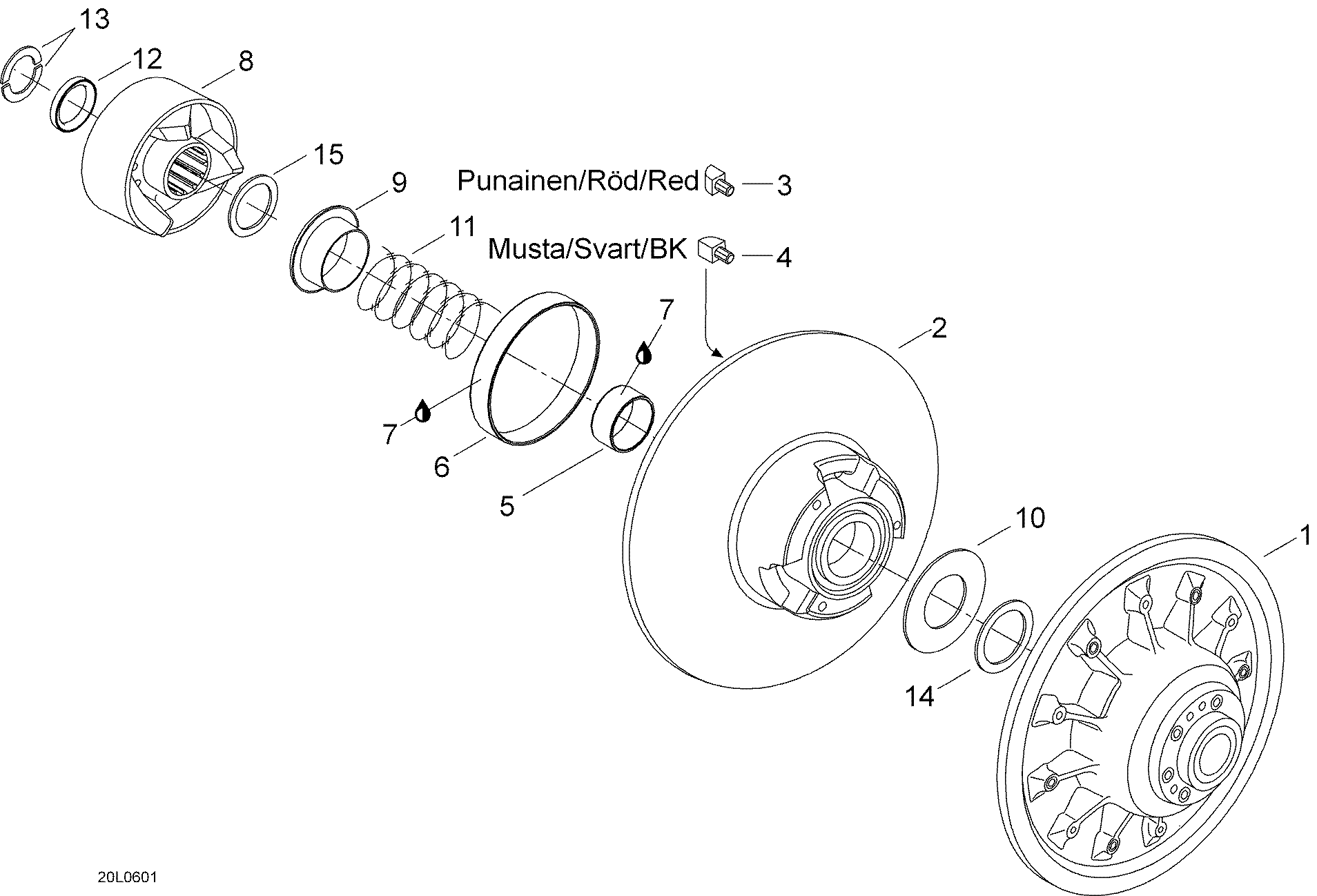

05- Driven Pulley для BRP Lynx Ranger 600 - 2006
-
№АртикулНазвание
-
1417126527 Fixed flange assyFixed flange assy
-
2417126318 Sliding pulley. Includes 2 to 7Sliding pulley. Includes 2 to 7
-
3417126373 Front cam shoe slide, RDFront cam shoe slide, RD
-
4417126374 Front cam shoe slide, BKFront cam shoe slide, BK
-
5414978200 BushingBushing
-
6414978100 BushingBushing
-
7413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
8417126577 Cam 47Cam 47
-
9415006000 GuardGuard
-
10504099600 Stopper washerStopper washer
-
11414978300 Spring, violetSpring, violet
-
12417126375 SpacerSpacer
-
13371911000 Half keyHalf key
-
14504112300 ShimShim
-
15417126322 SwivelSwivel
