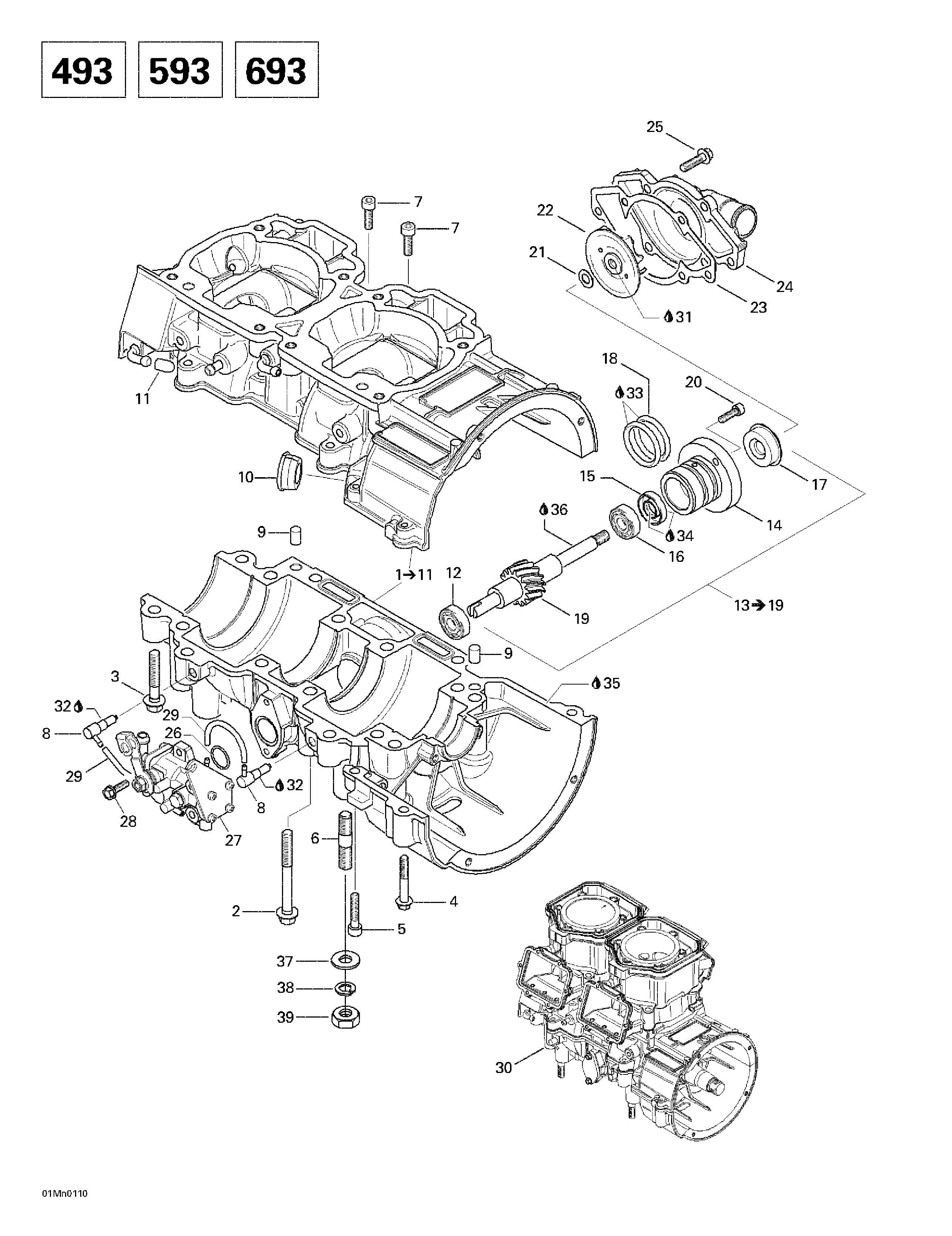

01- Crankcase, Water Pump And Oil Pump для BRP Ski-Doo MX Z 500/600/700 - 2001

№

Артикул

Название
1

420888761 Crankcase Ass'y (500). Includes 1 - 11. MX-Z 500.

Crankcase Ass'y (500). Includes 1 - 11. MX-Z 500.

0 ₽
420888761 Crankcase Ass'y (600). MX-Z 600.

Crankcase Ass'y (600). MX-Z 600.

0 ₽
420888275 Crankcase Ass'y (700). MX-Z 700.

Crankcase Ass'y (700). MX-Z 700.

0 ₽
2

420640836 Hex. Collar Screw M8 x 75

Hex. Collar Screw M8 x 75

990 ₽
3

420640431 Hex. Collar Screw M8 x 45

Hex. Collar Screw M8 x 45

0 ₽
4

420640311 Hex. Collar Screw M6 x 45

Hex. Collar Screw M6 x 45

370 ₽
5

205063044 Socket Head Screw M6 x 30

Socket Head Screw M6 x 30

550 ₽
6

420941644 Stud M10 x 23

Stud M10 x 23

350 ₽
7

205062044 Socket Screw M6 x 20

Socket Screw M6 x 20

120 ₽
8

420956510 Check Valve

Check Valve

3 130 ₽
9

420632010 Dowel Pin

Dowel Pin

1 450 ₽
10

420860965 Cable Grommet

Cable Grommet

1 150 ₽
11

420960770 Cap

Cap

380 ₽
12

420232100 Ball Bearing

Ball Bearing

10 030 ₽
13

420837421 Water Pump/Oil Pump Ass'y. Includes 13 - 19.

Water Pump/Oil Pump Ass'y. Includes 13 - 19.

112 000 ₽
15

420230195 Oil Seal

Oil Seal

5 600 ₽
16

420232100 Ball Bearing

Ball Bearing

10 030 ₽
17

420650370 Rotary Seal

Rotary Seal

25 480 ₽
18

420950890 O-Ring

O-Ring

1 540 ₽
20

420840511 Socket Head Screw M5 x 16

Socket Head Screw M5 x 16

670 ₽
21

420227945 Washer

Washer

1 450 ₽
22

420222505 Water Impeller

Water Impeller

6 480 ₽
23

420931810 Gasket

Gasket

4 520 ₽
24

420922630 Water Pump Housing

Water Pump Housing

5 020 ₽
25

420240031 Hex. Screw M6 x 25

Hex. Screw M6 x 25

280 ₽
26

420230400 O-Ring

O-Ring

0 ₽
27

420888260 Oil Pump Ass'y (500). MX-Z 500.

Oil Pump Ass'y (500). MX-Z 500.

37 720 ₽
420888425 Oil Pump Ass'y (600). MX-Z 600.

Oil Pump Ass'y (600). MX-Z 600.

24 960 ₽
420888422 Oil Pump Ass'y (700). MX-Z 700.

Oil Pump Ass'y (700). MX-Z 700.

24 960 ₽
28

420941925 Screw M5 x 16

Screw M5 x 16

180 ₽
29

414413800 Oil Line

Oil Line

300 ₽
30

420049302 Short Block Ass'y (500). MX-Z 500.

Short Block Ass'y (500). MX-Z 500.

0 ₽
420059303 Short Block Ass'y (600). MX-Z 600.

Short Block Ass'y (600). MX-Z 600.

0 ₽
420069305 Short Block Ass'y (700). MX-Z 700.

Short Block Ass'y (700). MX-Z 700.

0 ₽
31

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
32

413711400 Loctite 648, 10 ml

Loctite 648, 10 ml

3 420 ₽
33

413707000 Molykote 111

Molykote 111

7 550 ₽
34

420899271 Petamo Grease, GHY133N, 400 g

Petamo Grease, GHY133N, 400 g

8 190 ₽
35

420297906 Sealing Compound, 30 ml

Sealing Compound, 30 ml

3 950 ₽
36

413802900 Injection Oil (12 x 1 liter)

Injection Oil (12 x 1 liter)

1 050 ₽
37

234001410 Flat Washer 10 mm

Flat Washer 10 mm

420 ₽
38

234100602 Lock Spring Washer 10 mm

Lock Spring Washer 10 mm

130 ₽
39

232006414 Hex. Nut M10

Hex. Nut M10

460 ₽
