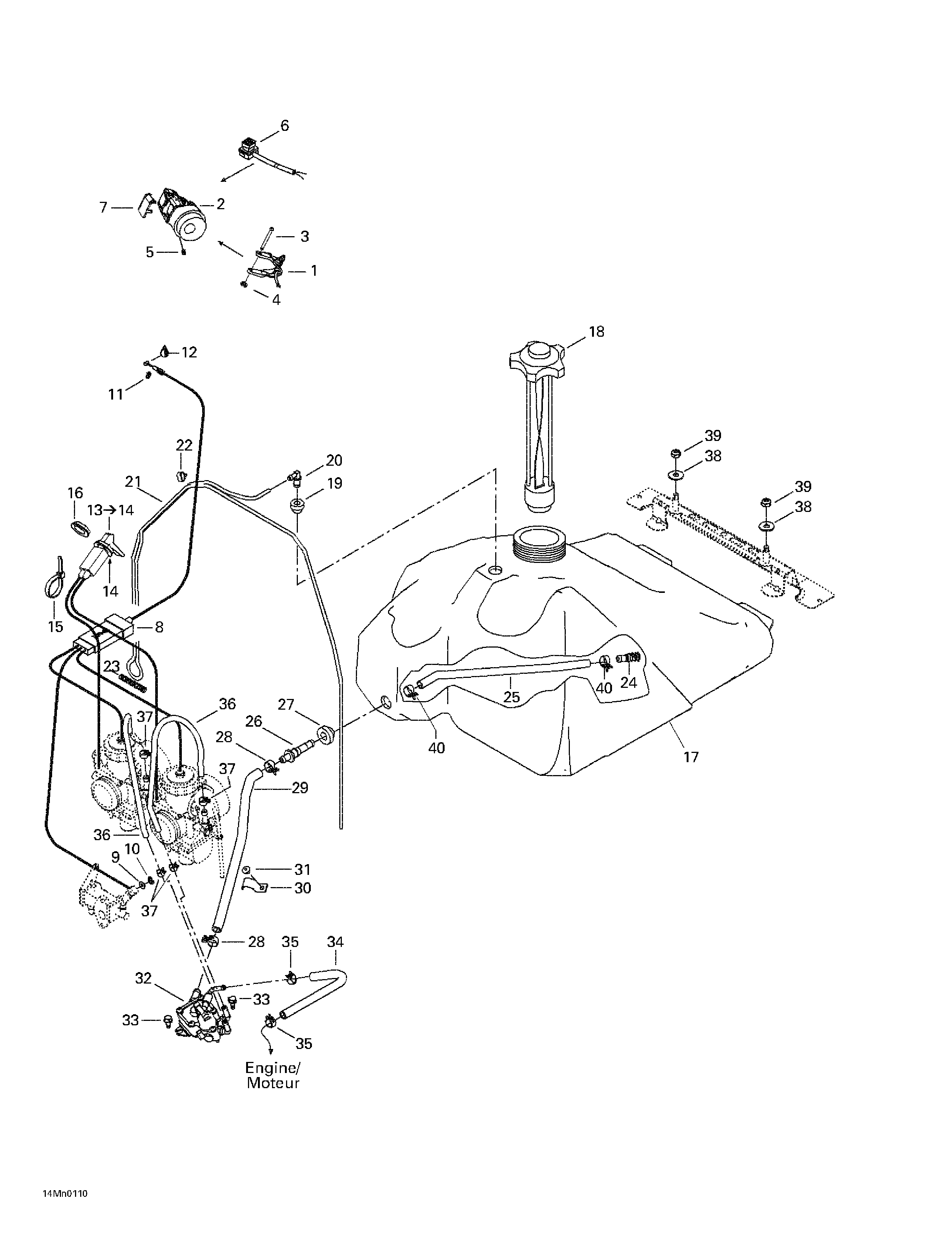

02- Fuel System для BRP Ski-Doo MX Z 500/600/700 - 2001
-
№АртикулНазвание
-
1512059153 Handle Ass'y 38 mm. MX-Z 500.Handle Ass'y 38 mm. MX-Z 500.
-
2572100900 Throttle Handle Housing. MX-Z 500.Throttle Handle Housing. MX-Z 500.
-
3414438700 Lever Pin. MX-Z 500.Lever Pin. MX-Z 500.
-
4414439000 Circlip. MX-Z 500.Circlip. MX-Z 500.
-
5414440800 Set Screw M8 x 10. MX-Z 500.Set Screw M8 x 10. MX-Z 500.
-
6515175410 Kill Switch. MX-Z 500.Kill Switch. MX-Z 500.
-
7572100901 Switch Cover. MX-Z 500.Switch Cover. MX-Z 500.
-
8512059111 Throttle Cable. MX-Z 500.Throttle Cable. MX-Z 500.
-
9414753300 Washer. MX-Z 500.Washer. MX-Z 500.
-
10414753500 Circlip. MX-Z 500.Circlip. MX-Z 500.
-
11414274500 Circlip. MX-Z 500.Circlip. MX-Z 500.
-
12293550004 Dielectric Grease, 150 g. MX-Z 500.Dielectric Grease, 150 g. MX-Z 500.
-
13512059203 Choke Cable. Includes 13 - 14. MX-Z 500.Choke Cable. Includes 13 - 14. MX-Z 500.
-
14394103300 Interior Tooth Lock Washer. MX-Z 500.Interior Tooth Lock Washer. MX-Z 500.
-
15515175220 Tie Rap 94 mm. MX-Z 500.Tie Rap 94 mm. MX-Z 500.
-
16512059094 Plastic Nut. MX-Z 500.Plastic Nut. MX-Z 500.
-
17513032987 Fuel Tank. MX-Z 500.Fuel Tank. MX-Z 500.
-
18513032901 Fuel Tank Cap. MX-Z 500.Fuel Tank Cap. MX-Z 500.
-
19513032908 Grommet. MX-Z 500.Grommet. MX-Z 500.
-
20414814100 Male Connector. MX-Z 500.Male Connector. MX-Z 500.
-
21415080100 Primer Line. MX-Z 500.Primer Line. MX-Z 500.
-
22513032923 Tube Clamp. MX-Z 500.Tube Clamp. MX-Z 500.
-
23414818200 Spring. MX-Z 500.Spring. MX-Z 500.
-
24414872100 Fuel Filter. MX-Z 500.Fuel Filter. MX-Z 500.
-
25415005700 Hose. MX-Z 500.Hose. MX-Z 500.
-
26414872700 Male Connector. MX-Z 500.Male Connector. MX-Z 500.
-
27570273900 Grommet. MX-Z 500.Grommet. MX-Z 500.
-
28513032979 Spring Clamp. MX-Z 500.Spring Clamp. MX-Z 500.
-
29513032903 Formed Hose. MX-Z 500.Formed Hose. MX-Z 500.
-
30415018200 Clip. MX-Z 500.Clip. MX-Z 500.
-
31390406500 Pop Rivet 3/16. MX-Z 500.Pop Rivet 3/16. MX-Z 500.
-
32403901800 Fuel Pump. MX-Z 500.Fuel Pump. MX-Z 500.
-
33210361280 Hex. Screw M6 x 12. MX-Z 500.Hex. Screw M6 x 12. MX-Z 500.
-
34415079800 Rubber Hose. MX-Z 500.Rubber Hose. MX-Z 500.
-
35414415200 Spring Clamp. MX-Z 500.Spring Clamp. MX-Z 500.
-
36415117800 Formed Tube. MX-Z 500.Formed Tube. MX-Z 500.
-
37414420700 Spring Clamp. MX-Z 500.Spring Clamp. MX-Z 500.
-
38234082410 Flat Washer 8 mm. MX-Z 500.Flat Washer 8 mm. MX-Z 500.
-
39232581414 Elastic Stop Nut M8. MX-Z 500.Elastic Stop Nut M8. MX-Z 500.
-
40513033010 Clamp. MX-Z 500.Clamp. MX-Z 500.
