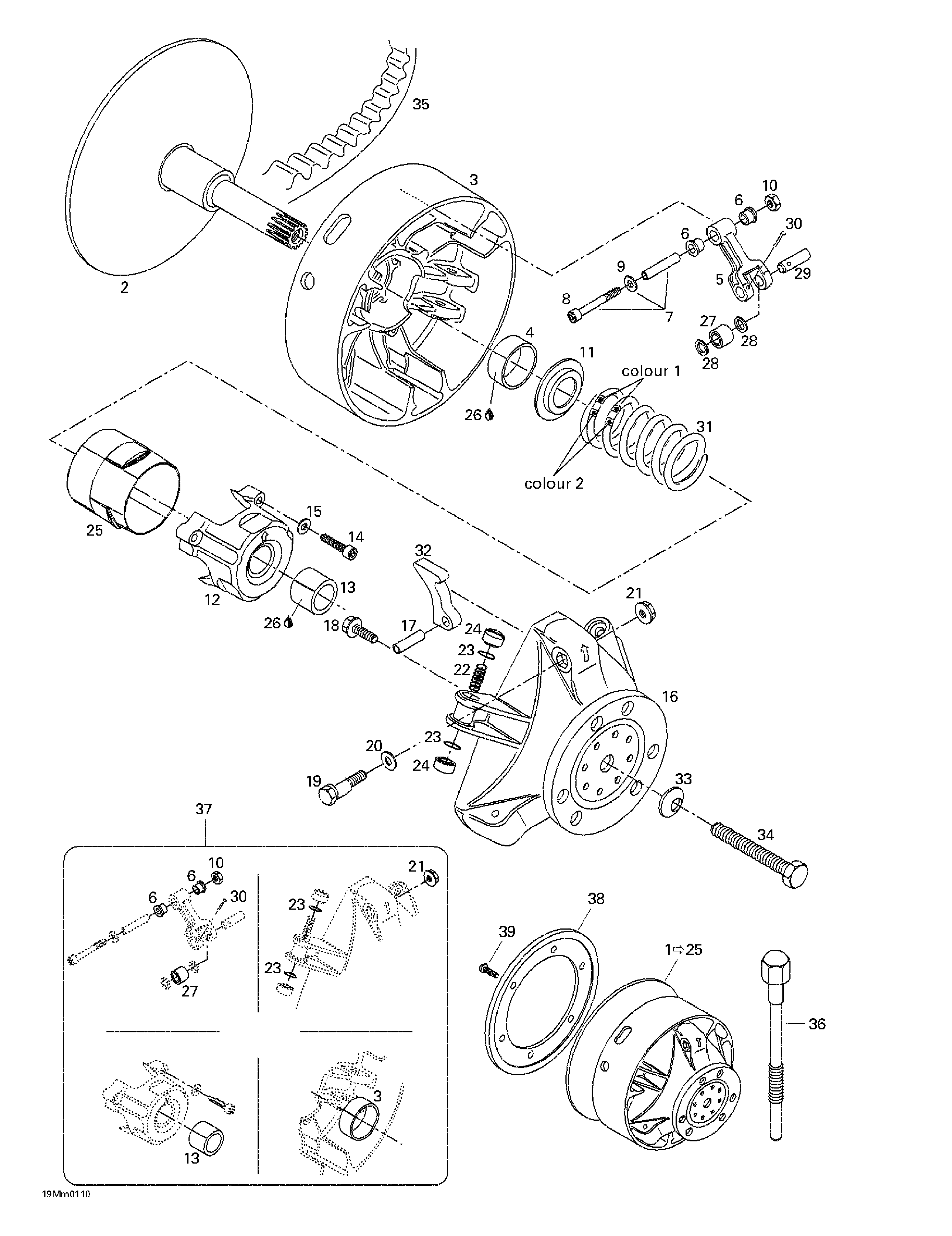

05- Drive Pulley для BRP Ski-Doo MX Z 500/600/700 - 2001
-
№АртикулНазвание
-
1417222369 Drive Pulley Ass'y. Includes 1 - 25.Drive Pulley Ass'y. Includes 1 - 25.
-
2417222248 Fixed FlangeFixed Flange
-
3417222241 Sliding Flange Ass'y. Includes 3 - 4.Sliding Flange Ass'y. Includes 3 - 4.
-
4417004201 BushingBushing
-
5417222383 Lever Ass'y. Includes 5 - 6.Lever Ass'y. Includes 5 - 6.
-
6417004305 BushingBushing
-
7417004800 Screw Ass'y. Includes 7 - 9.Screw Ass'y. Includes 7 - 9.
-
8205065044 Socket Head Screw M6 x 50Socket Head Screw M6 x 50
-
9234061410 Flat Washer 6 mmFlat Washer 6 mm
-
10232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
11417222044 Spring SeatSpring Seat
-
12417222304 Spring Cover Ass'y. Includes 12 - 13.Spring Cover Ass'y. Includes 12 - 13.
-
13417004501 BushingBushing
-
14250000038 Socket Head Screw M6 x 40Socket Head Screw M6 x 40
-
15420245370 WasherWasher
-
16417222081 Governor CupGovernor Cup
-
17732804009 Rolled Pin M8 x 24Rolled Pin M8 x 24
-
18210361890 Hex. Screw M6 x 18Hex. Screw M6 x 18
-
19417005500 Calibration ScrewCalibration Screw
-
20417005600 WasherWasher
-
21233061414 Flange Nut M6Flange Nut M6
-
22417005700 SpringSpring
-
23732401030 O-RingO-Ring
-
24417005800 Slider ShoeSlider Shoe
-
25417222176 Guard. MX-Z 600. MX-Z 700.Guard. MX-Z 600. MX-Z 700.
-
26413703100 Loctite 609, 10 c.cLoctite 609, 10 c.c
-
27417003900 Roller Ass'yRoller Ass'y
-
28417004302 Stronght WasherStronght Washer
-
29417004308 PinPin
-
30732958001 Cotter PinCotter Pin
-
31414768200 Spring (Green/Blue). MX-Z 500.Spring (Green/Blue). MX-Z 500.
-
417222371 Spring (Green/White). MX-Z 600.Spring (Green/White). MX-Z 600.
-
414762800 Spring (Green/Violet). MX-Z 700.Spring (Green/Violet). MX-Z 700.
-
32417005281 Ramp 281. MX-Z 500.Ramp 281. MX-Z 500.
-
417005293X Ramp 293. MX-Z 600.Ramp 293. MX-Z 600.
-
417222381 Ramp 300. MX-Z 700.Ramp 300. MX-Z 700.
-
33250200006 Conical Spring WasherConical Spring Washer
-
34417120000 Drive Pulley BoltDrive Pulley Bolt
-
35414860700 Drive Belt. MX-Z 500. MX-Z 600.Drive Belt. MX-Z 500. MX-Z 600.
-
417300127 Drive Belt. MX-Z 700.Drive Belt. MX-Z 700.
-
36529022400 Puller Inner HalfPuller Inner Half
-
37417006100 Clutch Repair KitClutch Repair Kit
-
38417222399 Flywheel. 600Flywheel. 600
-
39236281684 Screw M8 x 16Screw M8 x 16
