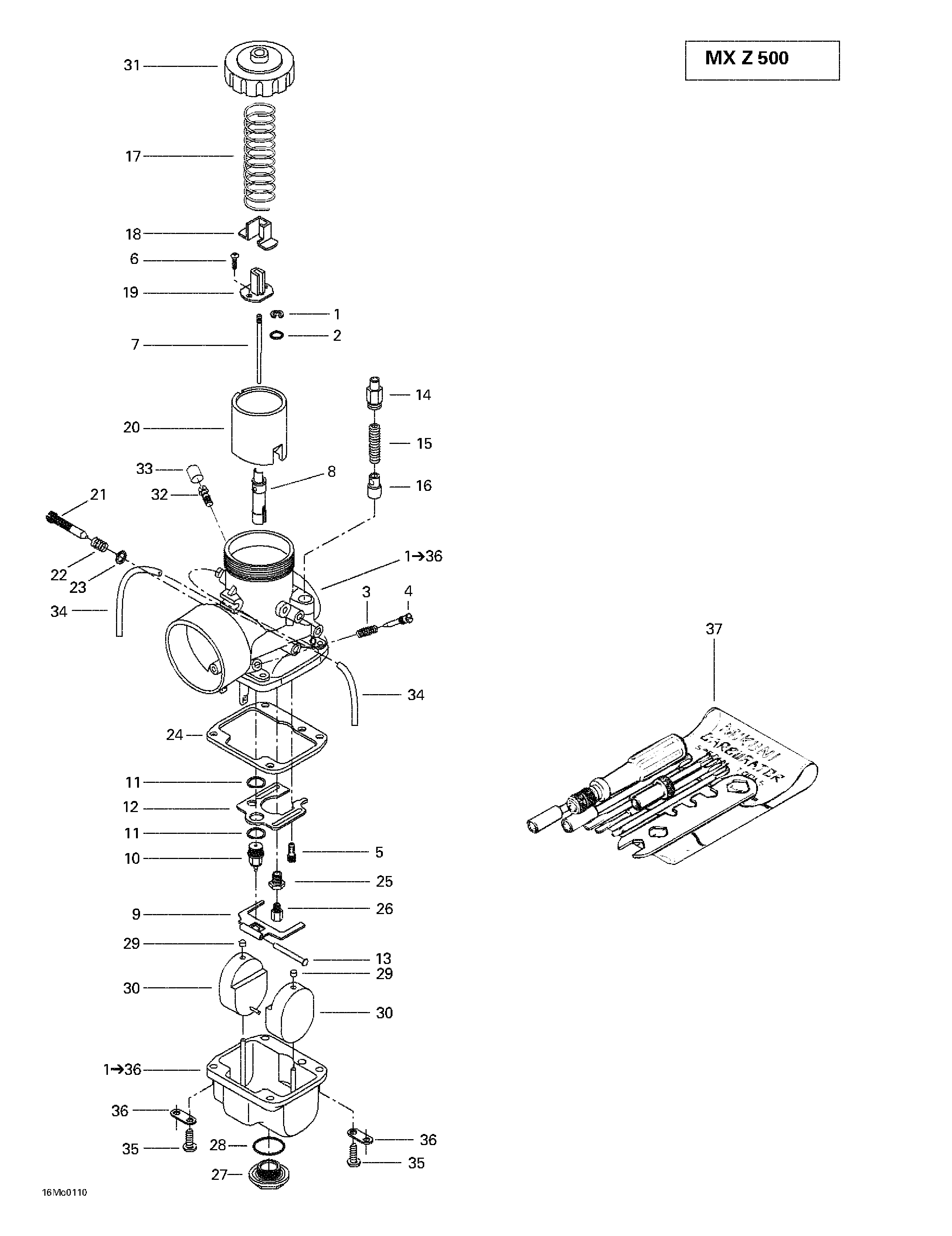

02- Carburetors для BRP Ski-Doo MX Z 500/600/700 - 2001

№

Артикул

Название
1

403138581 VM 38-429 Carburetor. Includes 1 - 36. MX-Z 500.

VM 38-429 Carburetor. Includes 1 - 36. MX-Z 500.

0 ₽
1

404152400 E-Ring. MX-Z 500.

E-Ring. MX-Z 500.

620 ₽
2

404117000 Packing. MX-Z 500.

Packing. MX-Z 500.

1 230 ₽
3

404139800 Spring (Air Screw). MX-Z 500.

Spring (Air Screw). MX-Z 500.

700 ₽
4

404149000 Air Screw. MX-Z 500.

Air Screw. MX-Z 500.

2 670 ₽
5

404109100 Pilot Jet PJ 40. MX-Z 500.

Pilot Jet PJ 40. MX-Z 500.

1 840 ₽
6

404121300 Screw with Washer. MX-Z 500.

Screw with Washer. MX-Z 500.

410 ₽
7

404161884 Needle J8-6DEY10. MX-Z 500.

Needle J8-6DEY10. MX-Z 500.

2 700 ₽
8

404161700 Needle Jet 480-P-8. MX-Z 500.

Needle Jet 480-P-8. MX-Z 500.

1 670 ₽
9

404161823 Float Lever. MX-Z 500.

Float Lever. MX-Z 500.

1 470 ₽
10

404147400 Needle Valve 1.5. MX-Z 500.

Needle Valve 1.5. MX-Z 500.

11 760 ₽
11

404101600 Seat Washer. MX-Z 500.

Seat Washer. MX-Z 500.

820 ₽
13

404103300 Lever Pin. MX-Z 500.

Lever Pin. MX-Z 500.

620 ₽
14

404161100 Guide Holder. MX-Z 500.

Guide Holder. MX-Z 500.

3 020 ₽
15

404161844 Spring. MX-Z 500.

Spring. MX-Z 500.

630 ₽
16

404161845 Plunger Ass'y. MX-Z 500.

Plunger Ass'y. MX-Z 500.

2 100 ₽
17

404154800 Spring. MX-Z 500.

Spring. MX-Z 500.

8 330 ₽
18

404122100 Cover. MX-Z 500.

Cover. MX-Z 500.

1 660 ₽
19

404161948 Connector. MX-Z 500.

Connector. MX-Z 500.

10 ₽
20

404131300 Piston Valve CA 2.5. MX-Z 500.

Piston Valve CA 2.5. MX-Z 500.

11 980 ₽
21

404102800 Throttle Adjustment Screw. MX-Z 500.

Throttle Adjustment Screw. MX-Z 500.

1 400 ₽
22

404101700 Spring (Adjustment Screw). MX-Z 500.

Spring (Adjustment Screw). MX-Z 500.

1 580 ₽
23

270500018 Washer. MX-Z 500.

Washer. MX-Z 500.

310 ₽
24

404104700 Gasket. MX-Z 500.

Gasket. MX-Z 500.

1 380 ₽
25

404105500 Screw Guide. MX-Z 500.

Screw Guide. MX-Z 500.

2 760 ₽
26

404100500 Main Jet MJ 280. MX-Z 500.

Main Jet MJ 280. MX-Z 500.

700 ₽
27

404112900 Drain Plug Screw. MX-Z 500.

Drain Plug Screw. MX-Z 500.

1 100 ₽
28

404112800 Washer. MX-Z 500.

Washer. MX-Z 500.

260 ₽
29

404105800 Cap. MX-Z 500.

Cap. MX-Z 500.

580 ₽
30

404105400 Float. MX-Z 500.

Float. MX-Z 500.

2 510 ₽
31

404105100 Cover. MX-Z 500.

Cover. MX-Z 500.

5 570 ₽
32

404153400 Nipple. MX-Z 500.

Nipple. MX-Z 500.

1 080 ₽
33

404154900 Cap. MX-Z 500.

Cap. MX-Z 500.

1 330 ₽
34

404161880 Hose. MX-Z 500.

Hose. MX-Z 500.

5 000 ₽
35

404102000 Screw with Lock Washer. MX-Z 500.

Screw with Lock Washer. MX-Z 500.

290 ₽
36

404103000 Plate. MX-Z 500.

Plate. MX-Z 500.

920 ₽
37

404112000 Tool Kit. MX-Z 500.

Tool Kit. MX-Z 500.

7 730 ₽
