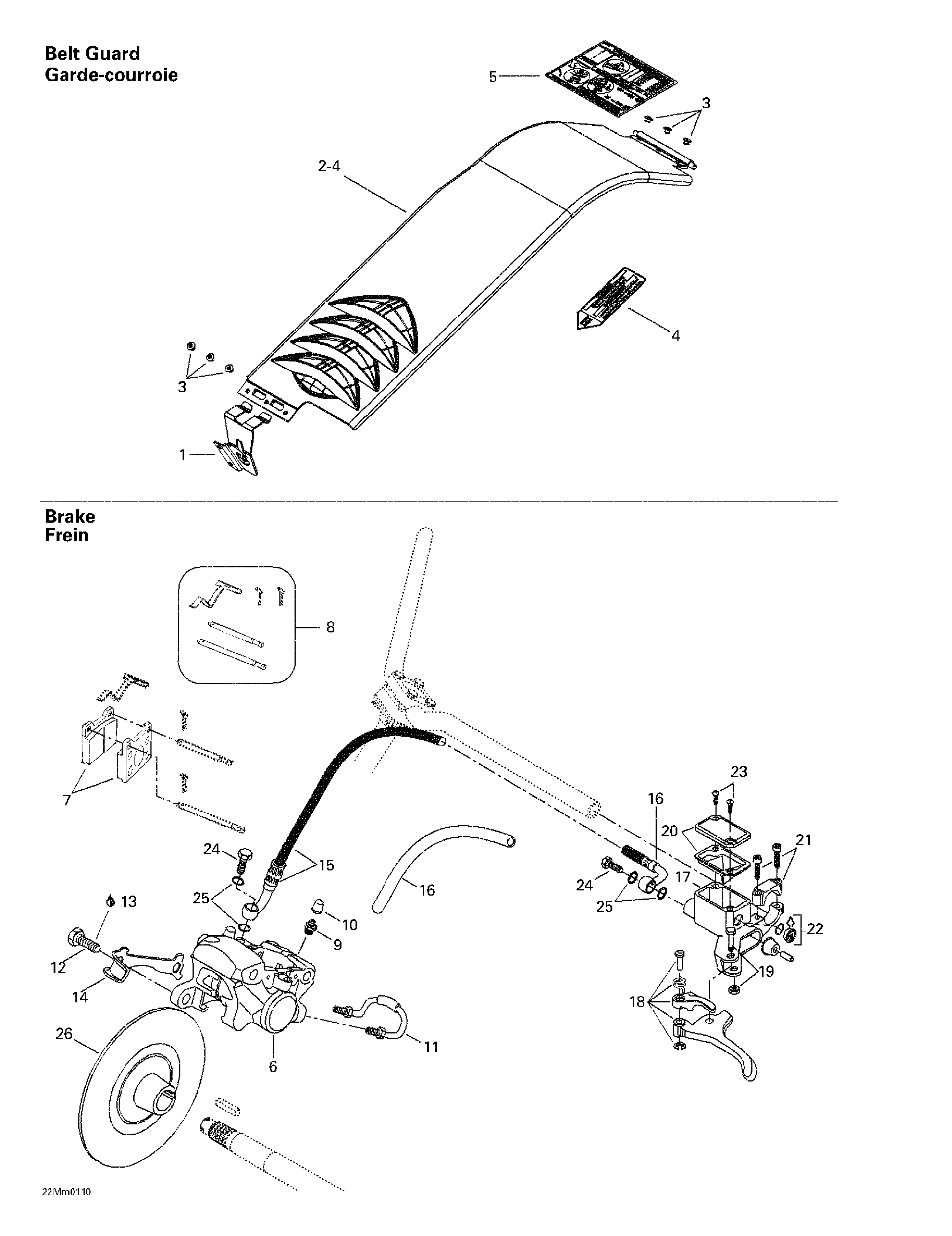

06- Hydraulic Brake And Belt Guard для BRP Ski-Doo MX Z 500/600/700 - 2001
-
№АртикулНазвание
-
1417300001 BracketBracket
-
2417300002 Belt Guard Ass'y. Includes 2 - 3.Belt Guard Ass'y. Includes 2 - 3.
-
3390402200 Pop RivetPop Rivet
-
4516000132 Warning LabelWarning Label
-
5516000709 Calibration Label (STD-TRA)Calibration Label (STD-TRA)
-
516000952 Calibration Label (X). MX-Z 600. MX-Z 700.Calibration Label (X). MX-Z 600. MX-Z 700.
-
516000708 Calibration Label (ADR-STD)Calibration Label (ADR-STD)
-
6414920000 Caliper (H. PERF). Includes 6 - 11. MX-Z 600. MX-Z 700.Caliper (H. PERF). Includes 6 - 11. MX-Z 600. MX-Z 700.
-
415034500 Caliper. MX-Z 500.Caliper. MX-Z 500.
-
507032204 Caliper (RACING). MX-Z 600. MX-Z 700.Caliper (RACING). MX-Z 600. MX-Z 700.
-
7414990000 Brake Lining Kit. MX-Z 600. MX-Z 700.Brake Lining Kit. MX-Z 600. MX-Z 700.
-
415053600 Brake Lining Kit. MX-Z 500.Brake Lining Kit. MX-Z 500.
-
415084600 Brake Lining Kit (RACING). MX-Z 600. MX-Z 700.Brake Lining Kit (RACING). MX-Z 600. MX-Z 700.
-
8414990700 Kit (Pins, Retainers, Spring)Kit (Pins, Retainers, Spring)
-
9414989800 Screw-BleederScrew-Bleeder
-
10414989700 BootBoot
-
11414989900 Rigid TubingRigid Tubing
-
12207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
13293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
14507029900 Locking TabLocking Tab
-
15507032237 Hose (H. PERF)Hose (H. PERF)
-
415064600 Hose (RACING). MX-Z 700.Hose (RACING). MX-Z 700.
-
16515175442 Housing. MX-Z 600. MX-Z 700.Housing. MX-Z 600. MX-Z 700.
-
17507032293 Master Cylinder. Includes 17 - 23. MX-Z 500. MX-Z 600.Master Cylinder. Includes 17 - 23. MX-Z 500. MX-Z 600.
-
18507032268 Brake Short Lever Ass'yBrake Short Lever Ass'y
-
20415029900 CapCap
-
21415029800 Clamp Ass'yClamp Ass'y
-
22414990600 WindowWindow
-
23415078900 ScrewScrew
-
24414920500 BoltBolt
-
25414920600 WasherWasher
-
26507032203 Brake Disk (X). MX-Z 500.Brake Disk (X). MX-Z 500.
-
507031300 Brake Disk (H. PERF). MX-Z 600. MX-Z 700.Brake Disk (H. PERF). MX-Z 600. MX-Z 700.
-
507032301 Brake Disk (X). MX-Z 600. MX-Z 700.Brake Disk (X). MX-Z 600. MX-Z 700.
