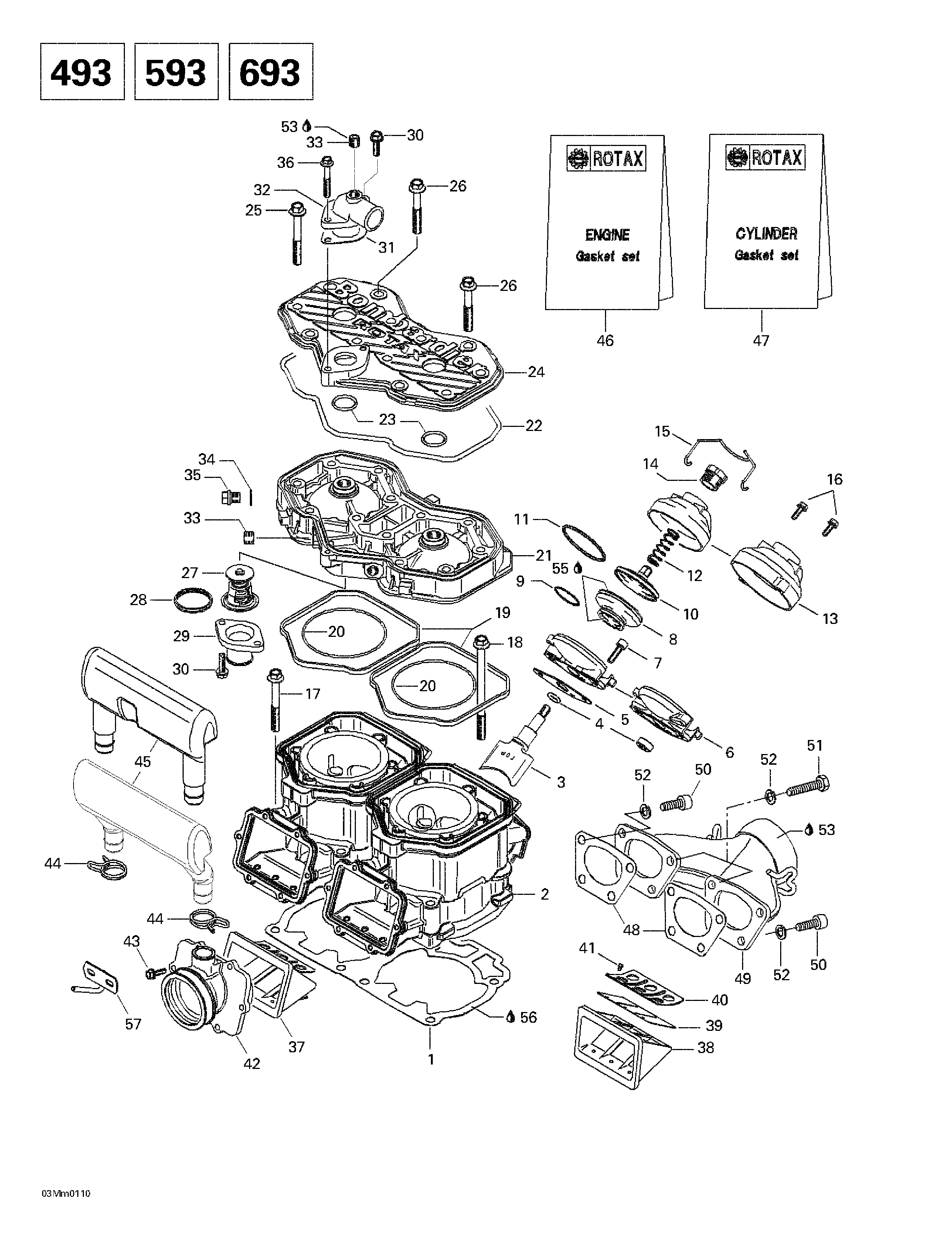

01- Cylinder, Exhaust Manifold, Reed Valve для BRP Ski-Doo MX Z 500/600/700 - 2001
-
№АртикулНазвание
-
1420931589 Double Gasket 0.8 mm. MX-Z 500.Double Gasket 0.8 mm. MX-Z 500.
-
420931584 Double Gasket 0.8 mm. MX-Z 600.Double Gasket 0.8 mm. MX-Z 600.
-
420931895 Double Gasket 0.8 mm. MX-Z 700.Double Gasket 0.8 mm. MX-Z 700.
-
420931960 Double Gasket 0.7 mm. MX-Z 500.Double Gasket 0.7 mm. MX-Z 500.
-
420931962 Double Gasket 0.7 mm. MX-Z 600.Double Gasket 0.7 mm. MX-Z 600.
-
420931894 Double Gasket 0.7 mm. MX-Z 700.Double Gasket 0.7 mm. MX-Z 700.
-
420931587 Double Gasket 0.6 mm. MX-Z 500.Double Gasket 0.6 mm. MX-Z 500.
-
420931582 Double Gasket 0.6 mm. MX-Z 600.Double Gasket 0.6 mm. MX-Z 600.
-
420931892 Double Gasket 0.6 mm. MX-Z 700.Double Gasket 0.6 mm. MX-Z 700.
-
420931588 Double Gasket 0.5 mm. MX-Z 500.Double Gasket 0.5 mm. MX-Z 500.
-
420931583 Double Gasket 0.5 mm. MX-Z 600.Double Gasket 0.5 mm. MX-Z 600.
-
420931893 Double Gasket 0.5 mm. MX-Z 700.Double Gasket 0.5 mm. MX-Z 700.
-
2420923855 Cylinder with Sleeve. MX-Z 500.Cylinder with Sleeve. MX-Z 500.
-
420923439 Cylinder with Sleeve. MX-Z 600.Cylinder with Sleeve. MX-Z 600.
-
420923695 Cylinder-Nicasil. MX-Z 700.Cylinder-Nicasil. MX-Z 700.
-
3420854490 Exhaust Valve. MX-Z 500.Exhaust Valve. MX-Z 500.
-
420854370 Exhaust Valve. MX-Z 600.Exhaust Valve. MX-Z 600.
-
420854332 Exhaust Valve. MX-Z 700.Exhaust Valve. MX-Z 700.
-
4420430110 O'Ring (Up to S/N). MX-Z 500. MX-Z 600.O'Ring (Up to S/N). MX-Z 500. MX-Z 600.
-
420950730 Oil Seal (From S/N)Oil Seal (From S/N)
-
5420250239 GasketGasket
-
6420854265 Valve Housing (Up to S/N). MX-Z 500. MX-Z 600.Valve Housing (Up to S/N). MX-Z 500. MX-Z 600.
-
420854266 Valve Housing (From S/N)Valve Housing (From S/N)
-
7205062044 Socket Head Screw M6 x 20Socket Head Screw M6 x 20
-
8290260723 BellowsBellows
-
9420838253 Spring ClampSpring Clamp
-
10420854449 Exhaust Valve. MX-Z 500. MX-Z 700.Exhaust Valve. MX-Z 500. MX-Z 700.
-
420854447 Exhaust Valve. MX-Z 600.Exhaust Valve. MX-Z 600.
-
11290239048 Hose SpringHose Spring
-
12420239948 Spring. MX-Z 500.Spring. MX-Z 500.
-
420239944 Spring. MX-Z 600. MX-Z 700.Spring. MX-Z 600. MX-Z 700.
-
13420911551 Valve Cover (Up to S/N). MX-Z 500. MX-Z 600.Valve Cover (Up to S/N). MX-Z 500. MX-Z 600.
-
420911552 Valve Cover (From S/N)Valve Cover (From S/N)
-
14420241221 Adjuster ScrewAdjuster Screw
-
15420838082 Spring Clip (Up to S/N). MX-Z 500.Spring Clip (Up to S/N). MX-Z 500.
-
420838083 Spring Clip (Up to S/N). MX-Z 600.Spring Clip (Up to S/N). MX-Z 600.
-
16420841555 Tapping Screw M5 x 20 (From S/N)Tapping Screw M5 x 20 (From S/N)
-
17420640524 Hex Collar Screw M8 x 60. MX-Z 700.Hex Collar Screw M8 x 60. MX-Z 700.
-
420640951 Hex. Screw M8 x 68.5. MX-Z 500. MX-Z 600.Hex. Screw M8 x 68.5. MX-Z 500. MX-Z 600.
-
18420640534 Hex Collar Screw M8 x 120. MX-Z 700.Hex Collar Screw M8 x 120. MX-Z 700.
-
19420931590 Rubber RingRubber Ring
-
20420831792 O'Ring. MX-Z 500.O'Ring. MX-Z 500.
-
293300026 O'Ring. MX-Z 600.O'Ring. MX-Z 600.
-
420931840 O'Ring. MX-Z 700.O'Ring. MX-Z 700.
-
21420923880 Cylinder Head (Silver). MX-Z 500.Cylinder Head (Silver). MX-Z 500.
-
420923452 Cylinder Head (Silver). MX-Z 600.Cylinder Head (Silver). MX-Z 600.
-
420923457 Cylinder Head. MX-Z 700.Cylinder Head. MX-Z 700.
-
22290950320 O'RingO'Ring
-
23420430782 O'RingO'Ring
-
24420923460 Cylinder Head Cover (Silver)Cylinder Head Cover (Silver)
-
25420841306 Hex. Collar Screw M8 x 65Hex. Collar Screw M8 x 65
-
26420941621 Hex. Collar Screw M8 x 56.5Hex. Collar Screw M8 x 56.5
-
27420922515 Thermostat 42dThermostat 42d
-
28420931270 Sealing RingSealing Ring
-
29420922025 Bent Outlet SocketBent Outlet Socket
-
30420941250 Screw M6 x 20Screw M6 x 20
-
31420850338 GasketGasket
-
32420922062 Bent Outlet SocketBent Outlet Socket
-
33420240480 Plug Screw 1/8-27 NPTPlug Screw 1/8-27 NPT
-
36420941451 Hex. Collar Screw M6 x 40Hex. Collar Screw M6 x 40
-
37420924519 Reed Valve Ass'y. Includes 37 - 41. MX-Z 500. MX-Z 600.Reed Valve Ass'y. Includes 37 - 41. MX-Z 500. MX-Z 600.
-
39420924680 Pedal Reed. MX-Z 700.Pedal Reed. MX-Z 700.
-
420924532 Pedal Reed. MX-Z 500. MX-Z 600.Pedal Reed. MX-Z 500. MX-Z 600.
-
40420924539 Reed Pedal Stop. MX-Z 500. MX-Z 600.Reed Pedal Stop. MX-Z 500. MX-Z 600.
-
420924695 Reed Pedal Stop. MX-Z 700.Reed Pedal Stop. MX-Z 700.
-
41420941215 Screw M3 x 5Screw M3 x 5
-
42420867860 Carburetor Socket. MX-Z 500.Carburetor Socket. MX-Z 500.
-
420867880 Carburetor Socket. MX-Z 600.Carburetor Socket. MX-Z 600.
-
420867870 Carburator Socket. MX-Z 700.Carburator Socket. MX-Z 700.
-
43420941925 Screw M5 x 16Screw M5 x 16
-
44420851440 ClampClamp
-
45420867815 Intake Resonator. MX-Z 500.Intake Resonator. MX-Z 500.
-
420867817 Intake Resonator. MX-Z 600. MX-Z 700.Intake Resonator. MX-Z 600. MX-Z 700.
-
46420888721 Engine Gasket Set. MX-Z 500.Engine Gasket Set. MX-Z 500.
-
420888582 Engine Gasket Set. MX-Z 600.Engine Gasket Set. MX-Z 600.
-
420888602 Engine Gasket Set. MX-Z 700.Engine Gasket Set. MX-Z 700.
-
47420888726 Cylinder Gasket Set. MX-Z 500.Cylinder Gasket Set. MX-Z 500.
-
420888587 Cylinder Gasket Set. MX-Z 600.Cylinder Gasket Set. MX-Z 600.
-
420888607 Cylinder Gasket Set. MX-Z 700.Cylinder Gasket Set. MX-Z 700.
-
48420931615 Gasket. MX-Z 500.Gasket. MX-Z 500.
-
420931610 Gasket. MX-Z 600.Gasket. MX-Z 600.
-
420850552 Gasket. MX-Z 700.Gasket. MX-Z 700.
-
49420973650 Exhaust Manifold. MX-Z 500.Exhaust Manifold. MX-Z 500.
-
420979543 Exhaust Manifold. MX-Z 600.Exhaust Manifold. MX-Z 600.
-
420973591 Exhaust Manifold. MX-Z 700.Exhaust Manifold. MX-Z 700.
-
50205082544 Socket Head Screw M8 x 25. MX-Z 500. MX-Z 600.Socket Head Screw M8 x 25. MX-Z 500. MX-Z 600.
-
205062544 Socket Head Screw M6 x 25. MX-Z 700.Socket Head Screw M6 x 25. MX-Z 700.
-
51207182044 Hex. Screw M8 x 20. MX-Z 500. MX-Z 600.Hex. Screw M8 x 20. MX-Z 500. MX-Z 600.
-
52234181401 Lock Washer 8 mm. MX-Z 500. MX-Z 600.Lock Washer 8 mm. MX-Z 500. MX-Z 600.
-
234161471 Lock Washer 6 mm. MX-Z 700.Lock Washer 6 mm. MX-Z 700.
-
53413710300 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
-
54293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
55413707000 Molykote 111Molykote 111
-
56293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
57512059369 Carburator Bracket. MX-Z 600. MX-Z 700.Carburator Bracket. MX-Z 600. MX-Z 700.
