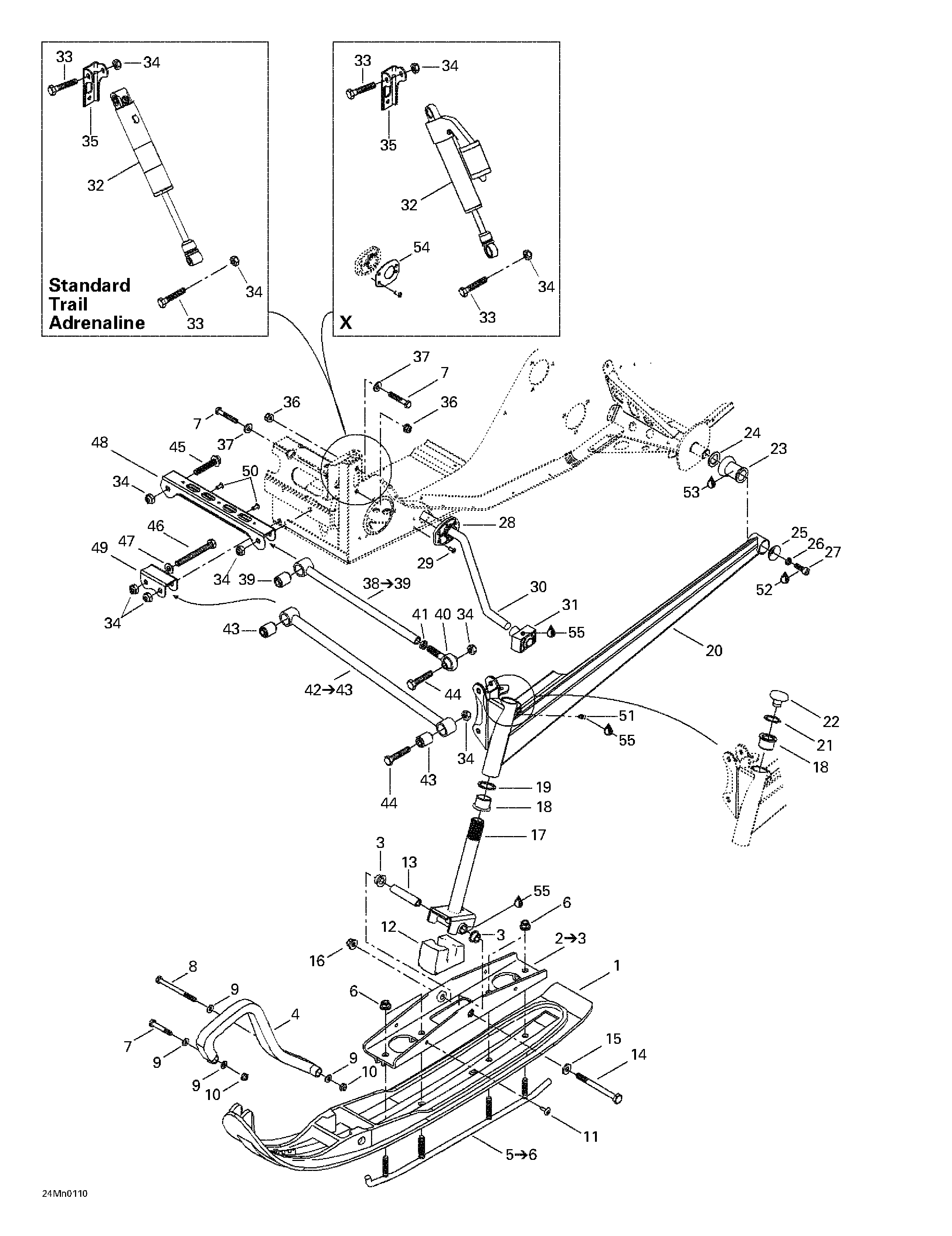

07- Front Suspension And Ski для BRP Ski-Doo MX Z 500/600/700 - 2001
-
№АртикулНазвание
-
1505070189 Ski LinerSki Liner
-
505070190 Ski Liner (Europe). MX-Z 500. MX-Z 600.Ski Liner (Europe). MX-Z 500. MX-Z 600.
-
2505070055 Bridge Ass'y. Includes 2 - 3.Bridge Ass'y. Includes 2 - 3.
-
3505070001 BushingBushing
-
4572101000 Plastic HandlePlastic Handle
-
5860501900 Carbide Runner Kit. Includes 5 - 6.Carbide Runner Kit. Includes 5 - 6.
-
6233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
7207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
8230080044 Hex. Screw M8 x 100Hex. Screw M8 x 100
-
9234081410 Flat Washer 8 mmFlat Washer 8 mm
-
10232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
11390911100 Pop Rivet 1/4Pop Rivet 1/4
-
12506151233 Ski StopperSki Stopper
-
13506133300 SpacerSpacer
-
14250000001 Hex. Screw M10 x 110Hex. Screw M10 x 110
-
15732900049 WasherWasher
-
16732610084 Flange Nut M10Flange Nut M10
-
17506151234 Ski LegSki Leg
-
18505070003 CushionCushion
-
19505070004 WasherWasher
-
20505070645 R.H. ArmR.H. Arm
-
505070646 L.H. ArmL.H. Arm
-
21371910400 CirclipCirclip
-
22572091300 CapCap
-
23570062200 DamperDamper
-
24503146700 WasherWasher
-
25506079600 CupCup
-
26234181401 Lock Washer 8 mmLock Washer 8 mm
-
27205082544 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
28505070139 BushingBushing
-
29390402300 Pop Rivet 3/16Pop Rivet 3/16
-
30505070563 StabilisatorStabilisator
-
31505070121 Ball Joint BlockBall Joint Block
-
32505070680 Front Shock Ass'y (TRAIL)Front Shock Ass'y (TRAIL)
-
505070512 Front Shock Ass'y (STD-ADR)Front Shock Ass'y (STD-ADR)
-
505070641 Front Shock RH (X). MX-Z 600. MX-Z 700.Front Shock RH (X). MX-Z 600. MX-Z 700.
-
505070642 Front Shock LH (X). MX-Z 600. MX-Z 700.Front Shock LH (X). MX-Z 600. MX-Z 700.
-
505070513 Front Shock Ass'y (Europe)Front Shock Ass'y (Europe)
-
33207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
34233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
35518317518 R.H. Shock BracketR.H. Shock Bracket
-
518317519 L.H. Shock BracketL.H. Shock Bracket
-
36233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
37506151245 WasherWasher
-
38505070214 Upper Arm Ass'y. Includes 38 - 39.Upper Arm Ass'y. Includes 38 - 39.
-
39505070025 BushingBushing
-
40415068400 Ball JointBall Joint
-
41732610019 R.H. Hex. Jam Nut M12R.H. Hex. Jam Nut M12
-
42505070402 Lower Arm Ass'y. Includes 42 - 43.Lower Arm Ass'y. Includes 42 - 43.
-
43505070025 BushingBushing
-
44207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
45207605544 Hex. Flange Screw M10 x 55Hex. Flange Screw M10 x 55
-
46207009544 Hex. Screw M10 x 95Hex. Screw M10 x 95
-
47234001410 Flat Washer 10 mmFlat Washer 10 mm
-
48505070010 Upper Arm BracketUpper Arm Bracket
-
49505070011 Lower Arm BracketLower Arm Bracket
-
50390402200 Pop Rivet 3/16Pop Rivet 3/16
-
51408200700 Grease FittingGrease Fitting
-
52293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
53293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
-
54505070542 Plate (X). MX-Z 600. MX-Z 700.Plate (X). MX-Z 600. MX-Z 700.
-
55219700417 Synthetic Grease, 400gSynthetic Grease, 400g
