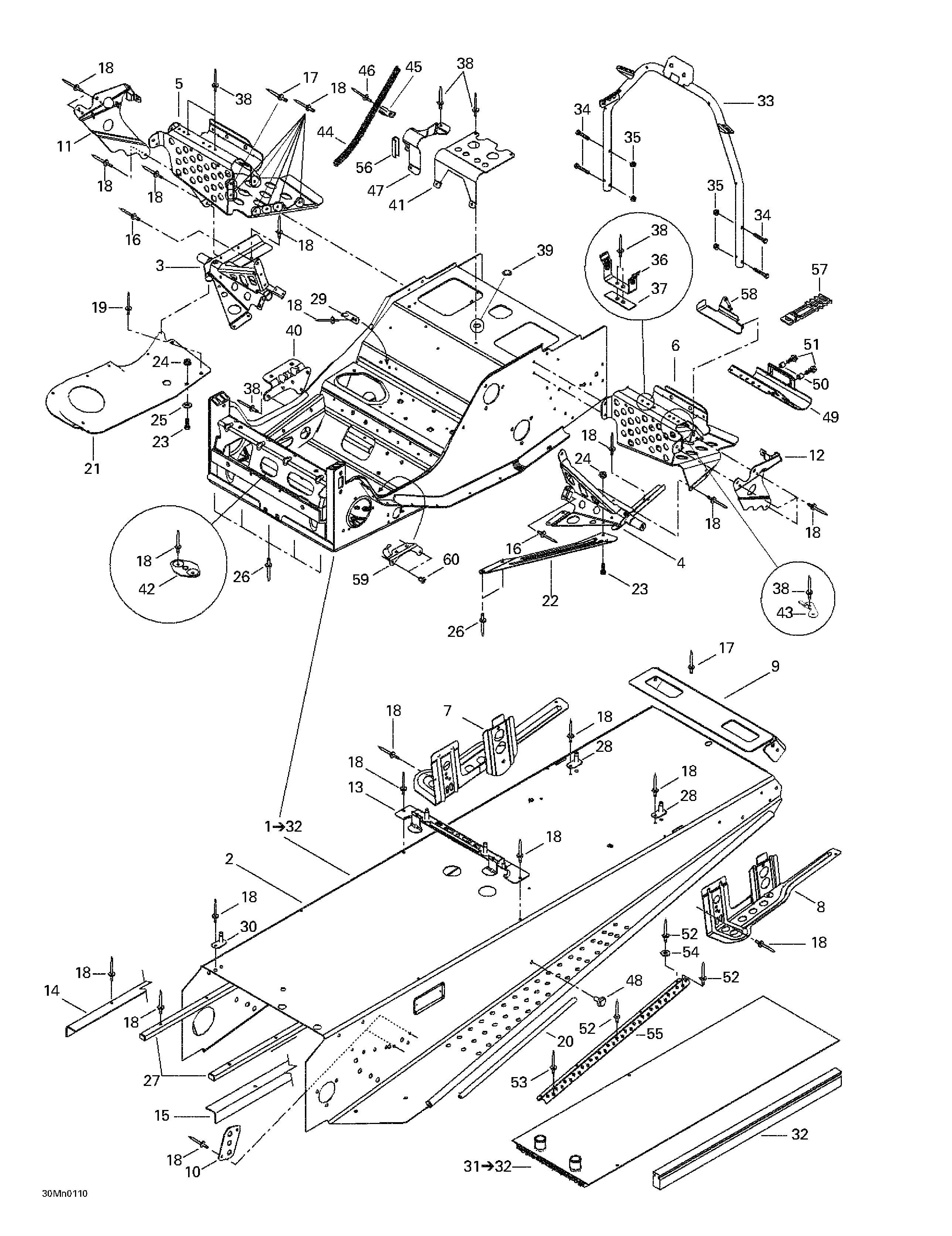

09- Frame And Accessories для BRP Ski-Doo MX Z 500/600/700 - 2001

№

Артикул

Название
1

518322488 Frame. Includes 1 - 32.

Frame. Includes 1 - 32.

0 ₽
2

518322534 Forming Frame. Includes 2 - 5.

Forming Frame. Includes 2 - 5.

67 850 ₽
3

518320506 R.H. Footrest Support

R.H. Footrest Support

10 400 ₽
4

518320507 L.H. Footrest Support

L.H. Footrest Support

12 210 ₽
5

518322393 R.H. Footrest

R.H. Footrest

0 ₽
6

518322394 L.H. Footrest

L.H. Footrest

0 ₽
7

518319742 R.H. Slide Bracket

R.H. Slide Bracket

4 750 ₽
8

518319743 L.H. Slide Bracket

L.H. Slide Bracket

4 520 ₽
9

518321303 Rear cap

Rear cap

4 750 ₽
10

518201321 Reinforcement Plate

Reinforcement Plate

740 ₽
11

518321305 R.H. Footrest Reinforcement

R.H. Footrest Reinforcement

1 370 ₽
12

518321307 L.H. Footrest Reinforcement

L.H. Footrest Reinforcement

1 370 ₽
13

518321510 Fuel Tank Bracket

Fuel Tank Bracket

2 090 ₽
14

518321561 R.H. Frame Reinforcement

R.H. Frame Reinforcement

0 ₽
15

518321562 L.H. Frame Reinforcement

L.H. Frame Reinforcement

0 ₽
16

390909200 Rivet AVEX

Rivet AVEX

170 ₽
17

390909100 Rivet AVEX

Rivet AVEX

120 ₽
18

390402200 Pop Rivet 3/16''

Pop Rivet 3/16''

120 ₽
19

390402300 Pop Rivet 3/16''

Pop Rivet 3/16''

280 ₽
20

518304746 Footrest Reinforcement

Footrest Reinforcement

2 790 ₽
21

518319760 R.H. Bottom Pan Plate

R.H. Bottom Pan Plate

2 570 ₽
22

518322119 L.H. Reinforcement Plate

L.H. Reinforcement Plate

1 220 ₽
23

207152044 Hex. Screw M5 x 20

Hex. Screw M5 x 20

90 ₽
24

233251414 Elastic Flanged Nut M5

Elastic Flanged Nut M5

100 ₽
25

391301700 Washer

Washer

0 ₽
26

390910300 Rivet Henrob

Rivet Henrob

90 ₽
27

518321543 Frame Protector

Frame Protector

1 890 ₽
28

518319730 Seat Bracket

Seat Bracket

0 ₽
29

518322391 Double Bracket

Double Bracket

0 ₽
30

518321604 Guide

Guide

0 ₽
31

517296300 Rear Radiator. Includes 31 - 32.

Rear Radiator. Includes 31 - 32.

0 ₽
32

518321655 Radiator Protector

Radiator Protector

0 ₽
33

518321957 Handle Support

Handle Support

0 ₽
34

207663544 Hex. Flanged Screw M6 x 35

Hex. Flanged Screw M6 x 35

320 ₽
35

233261414 Elastic Flanged Nut M6

Elastic Flanged Nut M6

490 ₽
36

518202100 Pulley Guard Bracket

Pulley Guard Bracket

1 430 ₽
37

518207500 Reinforcement

Reinforcement

450 ₽
38

390402200 Pop Rivet 3/16''

Pop Rivet 3/16''

120 ₽
39

414859400 Cap

Cap

300 ₽
40

518206300 Muffler Support

Muffler Support

0 ₽
41

518310400 Air Intake Support

Air Intake Support

990 ₽
42

518201307 Plate Bracket

Plate Bracket

630 ₽
43

518322031 Tool Kit Bracket

Tool Kit Bracket

270 ₽
44

518321569 Rope Guide

Rope Guide

680 ₽
45

518321570 Clip

Clip

2 320 ₽
46

390406500 Pop Rivet 3/16

Pop Rivet 3/16

320 ₽
47

518319762 Hose Support

Hose Support

0 ₽
48

518321954 Fastener Panel

Fastener Panel

2 320 ₽
49

518321571 Toe Hold (TRAIL-ADR-X). MX-Z 600. MX-Z 700.

Toe Hold (TRAIL-ADR-X). MX-Z 600. MX-Z 700.

0 ₽
50

415107300 Insert (TRAIL-ADR-X). MX-Z 600. MX-Z 700.

Insert (TRAIL-ADR-X). MX-Z 600. MX-Z 700.

0 ₽
51

207661644 Hex. Flanged Screw M6 x16. (TRAIL-ADR-X) MX-Z 600. MX-Z 700.

Hex. Flanged Screw M6 x16. (TRAIL-ADR-X) MX-Z 600. MX-Z 700.

270 ₽
52

390402200 Pop Rivet 3/16 (TRAIL-ADR-X). MX-Z 600. MX-Z 700.

Pop Rivet 3/16 (TRAIL-ADR-X). MX-Z 600. MX-Z 700.

120 ₽
53

390402300 Pop Rivet 3/16 (TRAIL-ADR-X). MX-Z 600. MX-Z 700.

Pop Rivet 3/16 (TRAIL-ADR-X). MX-Z 600. MX-Z 700.

280 ₽
54

517225900 Flat Washer (TRAIL-ADR-X). MX-Z 600. MX-Z 700.

Flat Washer (TRAIL-ADR-X). MX-Z 600. MX-Z 700.

70 ₽
55

518321714 Non-Skid Strip (TRAIL-ADR-X). MX-Z 600. MX-Z 700.

Non-Skid Strip (TRAIL-ADR-X). MX-Z 600. MX-Z 700.

1 250 ₽
56

271000110 Trim

Trim

1 410 ₽
57

570069700 Latch

Latch

1 190 ₽
58

518321999 Tool Kit Support

Tool Kit Support

630 ₽
59

515175254 Cable Support

Cable Support

0 ₽
60

390402300 Pop Rivet 3/16

Pop Rivet 3/16

280 ₽
