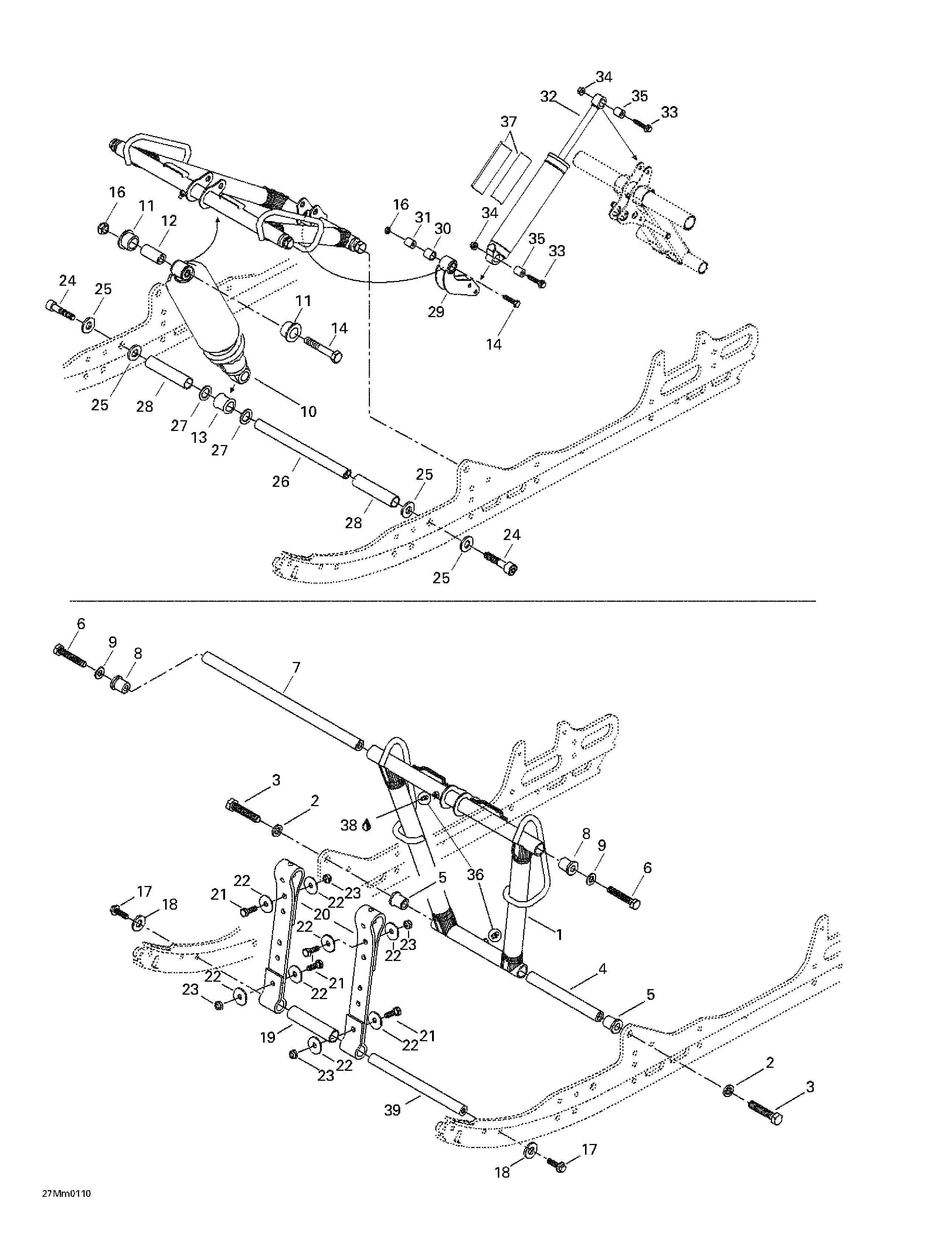

08- Front Arm, Rear Suspension для BRP Ski-Doo MX Z 500/600/700 - 2001
-
№АртикулНазвание
-
1503189292 Front ArmFront Arm
-
2503189276 Lock Washer 12 mmLock Washer 12 mm
-
3207226044 Hex. Screw M12 x 60 (Scotch Grip)Hex. Screw M12 x 60 (Scotch Grip)
-
4503189313 ShaftShaft
-
5503189323 CushionCushion
-
6207205544 Hex. Screw M10 x 55 (Scotch Grip)Hex. Screw M10 x 55 (Scotch Grip)
-
7503188938 ShaftShaft
-
8503189324 CushionCushion
-
9732900049 Flat Washer 10 mmFlat Washer 10 mm
-
10503189554 Center Shock (TRAIL)Center Shock (TRAIL)
-
503189610 Center Shock (X). MX-Z 600. MX-Z 700.Center Shock (X). MX-Z 600. MX-Z 700.
-
503189491 Center Shock (Europe)Center Shock (Europe)
-
503189678 Center Shock (STD-ADR)Center Shock (STD-ADR)
-
11503189117 CushionCushion
-
12503189282 BushingBushing
-
13503189271 CushionCushion
-
14207005044 Hex. Screw M10 x 50Hex. Screw M10 x 50
-
15503151600 AxleAxle
-
16233601416 Elastic Stop Nut M10Elastic Stop Nut M10
-
17205503544 Hex. Flange Screw M10 x 35 (Scotch Grip)Hex. Flange Screw M10 x 35 (Scotch Grip)
-
18503189564 Washer 10 mmWasher 10 mm
-
19503189265 SpacerSpacer
-
20503189362 Stopper StrapStopper Strap
-
21207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
22224081301 Flat WasherFlat Washer
-
23232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
24205523544 Socket Screw M12 x 35 (Scotch Grip)Socket Screw M12 x 35 (Scotch Grip)
-
25503189276 WasherWasher
-
26503189272 Center Shock ShaftCenter Shock Shaft
-
27503189273 WasherWasher
-
28503189274 SpacerSpacer
-
29503189303 RockerRocker
-
30503189388 Rocker AxleRocker Axle
-
31503189410 CushionCushion
-
32503189677 Rear Shock (STD-ADR)Rear Shock (STD-ADR)
-
503189177 Rear Shock (TRAIL)Rear Shock (TRAIL)
-
503189609 Rear Shock (X). MX-Z 600. MX-Z 700.Rear Shock (X). MX-Z 600. MX-Z 700.
-
503189492 Rear Shock (Europe)Rear Shock (Europe)
-
33207684044 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
34233281414 Elastic Flange Stop Nut M8Elastic Flange Stop Nut M8
-
35414936000 CushionCushion
-
36408200700 Grease FittingGrease Fitting
-
37516000183 Shock Decal (STD-ADR)Shock Decal (STD-ADR)
-
38219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
39503189562 AxleAxle
