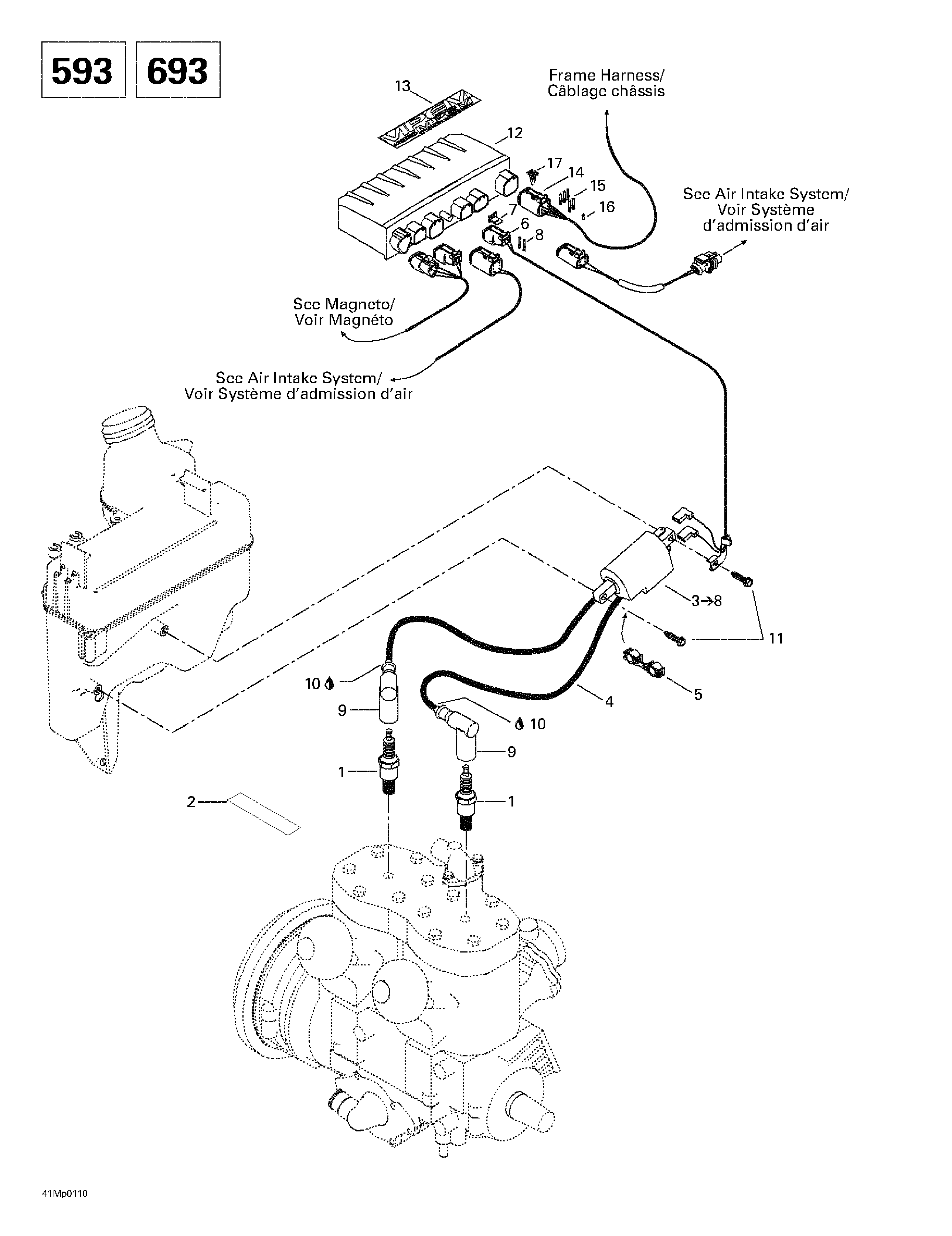

03- Ignition 2 для BRP Ski-Doo MX Z 500/600/700 - 2001
-
№АртикулНазвание
-
1414961100 Spark Plug (NGK BR9ES). MX-Z 600. MX-Z 700.Spark Plug (NGK BR9ES). MX-Z 600. MX-Z 700.
-
2516000986 Spark plug Decal. MX-Z 600. MX-Z 700.Spark plug Decal. MX-Z 600. MX-Z 700.
-
3512059039 Ignition Coil. Includes 3 - 8. MX-Z 600.Ignition Coil. Includes 3 - 8. MX-Z 600.
-
512059377A Ignition Coil. MX-Z 700.Ignition Coil. MX-Z 700.
-
4278001268 Spark Plug Wire. MX-Z 600. MX-Z 700.Spark Plug Wire. MX-Z 600. MX-Z 700.
-
5410914600 Plastic Clip. MX-Z 600. MX-Z 700.Plastic Clip. MX-Z 600. MX-Z 700.
-
6409207300 Female Terminal Housing (2 circuits). MX-Z 600. MX-Z 700.Female Terminal Housing (2 circuits). MX-Z 600. MX-Z 700.
-
7409207100 Female Lock (2 circuits). MX-Z 600. MX-Z 700.Female Lock (2 circuits). MX-Z 600. MX-Z 700.
-
8278000632 Female Terminal. MX-Z 600. MX-Z 700.Female Terminal. MX-Z 600. MX-Z 700.
-
9278000237 Spark Plug Protector. MX-Z 600. MX-Z 700.Spark Plug Protector. MX-Z 600. MX-Z 700.
-
10293550004 Dielectric Grease, 150 g. MX-Z 600. MX-Z 700.Dielectric Grease, 150 g. MX-Z 600. MX-Z 700.
-
11250000005 Hex. Tapping Screw. MX-Z 600. MX-Z 700.Hex. Tapping Screw. MX-Z 600. MX-Z 700.
-
12512059300 Calibration Module (STD-TRAIL). MX-Z 600.Calibration Module (STD-TRAIL). MX-Z 600.
-
512059298 Calibration Module DPM600. MX-Z 600.Calibration Module DPM600. MX-Z 600.
-
512059383 Calibration Module (STD-TRAIL). MX-Z 700.Calibration Module (STD-TRAIL). MX-Z 700.
-
512059385 Calibration Module DPM700. MX-Z 700.Calibration Module DPM700. MX-Z 700.
-
13516000245 Electrical Box Decal. MX-Z 600. MX-Z 700.Electrical Box Decal. MX-Z 600. MX-Z 700.
-
14278000736 Female Terminal Housing (6 circuits). MX-Z 600. MX-Z 700.Female Terminal Housing (6 circuits). MX-Z 600. MX-Z 700.
-
15278000632 Female Terminal. MX-Z 600. MX-Z 700.Female Terminal. MX-Z 600. MX-Z 700.
-
16293000052 Plug. MX-Z 600. MX-Z 700.Plug. MX-Z 600. MX-Z 700.
-
17278000737 (Female) Secondary Lock (6 Circuits) (Deutsch). MX-Z 600. MX-Z 700.(Female) Secondary Lock (6 Circuits) (Deutsch). MX-Z 600. MX-Z 700.
