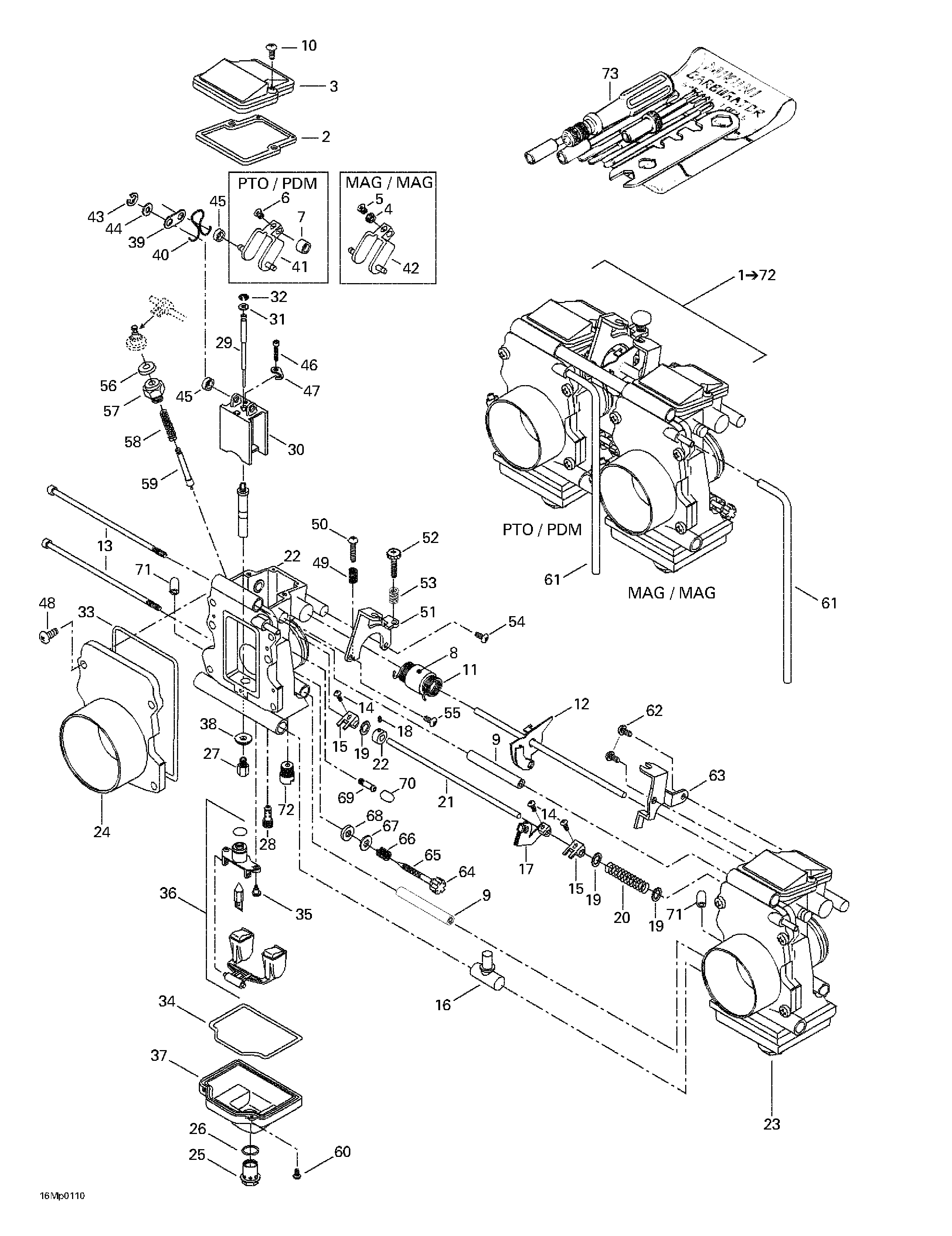

02- Carburetors 2 для BRP Ski-Doo MX Z 500/600/700 - 2001
-
№АртикулНазвание
-
1403138656 Carburetor Kit TM-40-B91. Includes 1 - 72. MX-Z 600.Carburetor Kit TM-40-B91. Includes 1 - 72. MX-Z 600.
-
403138658 Carburetor Kit TM-40-B97. MX-Z 700.Carburetor Kit TM-40-B97. MX-Z 700.
-
2404161940 Gasket. MX-Z 600. MX-Z 700.Gasket. MX-Z 600. MX-Z 700.
-
3404161939 Cover. MX-Z 600. MX-Z 700.Cover. MX-Z 600. MX-Z 700.
-
4404161937 Ring. MX-Z 600. MX-Z 700.Ring. MX-Z 600. MX-Z 700.
-
5404161936 Screw. MX-Z 600. MX-Z 700.Screw. MX-Z 600. MX-Z 700.
-
6404161928 Screw. MX-Z 600. MX-Z 700.Screw. MX-Z 600. MX-Z 700.
-
7404161926 Ring. MX-Z 600. MX-Z 700.Ring. MX-Z 600. MX-Z 700.
-
8404161925 Ring. MX-Z 600. MX-Z 700.Ring. MX-Z 600. MX-Z 700.
-
9404161924 Ring. MX-Z 600. MX-Z 700.Ring. MX-Z 600. MX-Z 700.
-
10404161923 Screw. MX-Z 600. MX-Z 700.Screw. MX-Z 600. MX-Z 700.
-
11404161915 Spring. MX-Z 600. MX-Z 700.Spring. MX-Z 600. MX-Z 700.
-
12404161914 Throttle Shaft. MX-Z 600. MX-Z 700.Throttle Shaft. MX-Z 600. MX-Z 700.
-
13404161911 Screw. MX-Z 600. MX-Z 700.Screw. MX-Z 600. MX-Z 700.
-
14404161910 Screw. MX-Z 600. MX-Z 700.Screw. MX-Z 600. MX-Z 700.
-
15404161909 Lever. MX-Z 600. MX-Z 700.Lever. MX-Z 600. MX-Z 700.
-
16404161905 Nipple. MX-Z 600. MX-Z 700.Nipple. MX-Z 600. MX-Z 700.
-
17404161901 Starter Lever. MX-Z 600. MX-Z 700.Starter Lever. MX-Z 600. MX-Z 700.
-
18404161949 Screw. MX-Z 600. MX-Z 700.Screw. MX-Z 600. MX-Z 700.
-
19404161894 Packing. MX-Z 600. MX-Z 700.Packing. MX-Z 600. MX-Z 700.
-
20404103500 Spring. MX-Z 600. MX-Z 700.Spring. MX-Z 600. MX-Z 700.
-
21404161952 Shaft. MX-Z 600. MX-Z 700.Shaft. MX-Z 600. MX-Z 700.
-
22404161951 Ring. MX-Z 600. MX-Z 700.Ring. MX-Z 600. MX-Z 700.
-
24404161947 Funnel. MX-Z 600. MX-Z 700.Funnel. MX-Z 600. MX-Z 700.
-
25404161955 Screw Drain. MX-Z 600. MX-Z 700.Screw Drain. MX-Z 600. MX-Z 700.
-
26404161945 Ring-O. MX-Z 600. MX-Z 700.Ring-O. MX-Z 600. MX-Z 700.
-
27404115100 Main Jet 520. MX-Z 700.Main Jet 520. MX-Z 700.
-
404108200 Main Jet 500. MX-Z 600.Main Jet 500. MX-Z 600.
-
28404161944 Pilot Jet 17.5. MX-Z 700.Pilot Jet 17.5. MX-Z 700.
-
404108600 Pilot Jet 20. MX-Z 600.Pilot Jet 20. MX-Z 600.
-
29404161953 Needle J8-9zly3-58. MX-Z 700.Needle J8-9zly3-58. MX-Z 700.
-
404161954 Needle J8-9hfy02-53. MX-Z 600.Needle J8-9hfy02-53. MX-Z 600.
-
30404161950 Piston-Val.2.0. MX-Z 600. MX-Z 700.Piston-Val.2.0. MX-Z 600. MX-Z 700.
-
31404137600 Packing. MX-Z 600. MX-Z 700.Packing. MX-Z 600. MX-Z 700.
-
32404152200 E'' Ring`MX-Z 500. MX-Z 700. .``E'' Ring`MX-Z 500. MX-Z 700. .``
-
33404161935 O'Ring. MX-Z 600. MX-Z 700.O'Ring. MX-Z 600. MX-Z 700.
-
34404161961 O'Ring. MX-Z 700.O'Ring. MX-Z 700.
-
404161934 O'Ring. MX-Z 600.O'Ring. MX-Z 600.
-
35404161933 Screw. MX-Z 600. MX-Z 700.Screw. MX-Z 600. MX-Z 700.
-
36404161932 Float. MX-Z 600. MX-Z 700.Float. MX-Z 600. MX-Z 700.
-
37404161960 Float Body Ass'y. MX-Z 700.Float Body Ass'y. MX-Z 700.
-
404161931 Float Body Ass'y. MX-Z 600.Float Body Ass'y. MX-Z 600.
-
38404161862 Washer. MX-Z 600. MX-Z 700.Washer. MX-Z 600. MX-Z 700.
-
39404161930 Plate. MX-Z 600. MX-Z 700.Plate. MX-Z 600. MX-Z 700.
-
40404161929 Clip. MX-Z 600. MX-Z 700.Clip. MX-Z 600. MX-Z 700.
-
41404161927 Lever. MX-Z 600. MX-Z 700.Lever. MX-Z 600. MX-Z 700.
-
42404161938 Lever. MX-Z 600. MX-Z 700.Lever. MX-Z 600. MX-Z 700.
-
43404138300 E'' Ring`MX-Z 600. MX-Z 700.``E'' Ring`MX-Z 600. MX-Z 700.``
-
44404161922 Washer. MX-Z 600. MX-Z 700.Washer. MX-Z 600. MX-Z 700.
-
45404161921 Ring. MX-Z 600. MX-Z 700.Ring. MX-Z 600. MX-Z 700.
-
46404161920 Screw. MX-Z 600. MX-Z 700.Screw. MX-Z 600. MX-Z 700.
-
47404161919 Plate. MX-Z 600. MX-Z 700.Plate. MX-Z 600. MX-Z 700.
-
48404138800 Screw. MX-Z 600. MX-Z 700.Screw. MX-Z 600. MX-Z 700.
-
49404161918 Spring TM 40-98 PTO. MX-Z 600. MX-Z 700.Spring TM 40-98 PTO. MX-Z 600. MX-Z 700.
-
50404161917 Screw TM 40-98 PTO. MX-Z 600. MX-Z 700.Screw TM 40-98 PTO. MX-Z 600. MX-Z 700.
-
51404161916 Bracket TM 40-98 PTO. MX-Z 600. MX-Z 700.Bracket TM 40-98 PTO. MX-Z 600. MX-Z 700.
-
52404137500 Adjustment Screw TM 40-98 PTO. MX-Z 600. MX-Z 700.Adjustment Screw TM 40-98 PTO. MX-Z 600. MX-Z 700.
-
53404161913 Spring TM 40-98 PTO. MX-Z 600. MX-Z 700.Spring TM 40-98 PTO. MX-Z 600. MX-Z 700.
-
54404161912 Screw TM 40-98 PTO. MX-Z 600. MX-Z 700.Screw TM 40-98 PTO. MX-Z 600. MX-Z 700.
-
55404136100 Screw TM 40-98 PTO. MX-Z 600. MX-Z 700.Screw TM 40-98 PTO. MX-Z 600. MX-Z 700.
-
56404140000 Cap. MX-Z 600. MX-Z 700.Cap. MX-Z 600. MX-Z 700.
-
57404136900 Guide-Holder. MX-Z 600. MX-Z 700.Guide-Holder. MX-Z 600. MX-Z 700.
-
58404161908 Spring. MX-Z 600. MX-Z 700.Spring. MX-Z 600. MX-Z 700.
-
59404161907 Plunger-Assy. MX-Z 600. MX-Z 700.Plunger-Assy. MX-Z 600. MX-Z 700.
-
60404161906 Screw. MX-Z 600. MX-Z 700.Screw. MX-Z 600. MX-Z 700.
-
61404161904 Hose. MX-Z 600. MX-Z 700.Hose. MX-Z 600. MX-Z 700.
-
62404161903 Screw TM 40-99 MAG. MX-Z 600. MX-Z 700.Screw TM 40-99 MAG. MX-Z 600. MX-Z 700.
-
63404161902 Bracket TM 40-99 MAG. MX-Z 600. MX-Z 700.Bracket TM 40-99 MAG. MX-Z 600. MX-Z 700.
-
64404161899 Cap. MX-Z 600. MX-Z 700.Cap. MX-Z 600. MX-Z 700.
-
65404161898 Adjuster. MX-Z 600. MX-Z 700.Adjuster. MX-Z 600. MX-Z 700.
-
66404161897 Spring. MX-Z 600. MX-Z 700.Spring. MX-Z 600. MX-Z 700.
-
67404161896 Washer. MX-Z 600. MX-Z 700.Washer. MX-Z 600. MX-Z 700.
-
68404161895 Packing. MX-Z 600. MX-Z 700.Packing. MX-Z 600. MX-Z 700.
-
69404153400 Nipple. MX-Z 600. MX-Z 700.Nipple. MX-Z 600. MX-Z 700.
-
70404154900 Cap. MX-Z 600. MX-Z 700.Cap. MX-Z 600. MX-Z 700.
-
71404156600 Cap. MX-Z 600. MX-Z 700.Cap. MX-Z 600. MX-Z 700.
-
72404161900 Jet. MX-Z 600.Jet. MX-Z 600.
-
73404112000 Tool Kit. MX-Z 600. MX-Z 700.Tool Kit. MX-Z 600. MX-Z 700.
