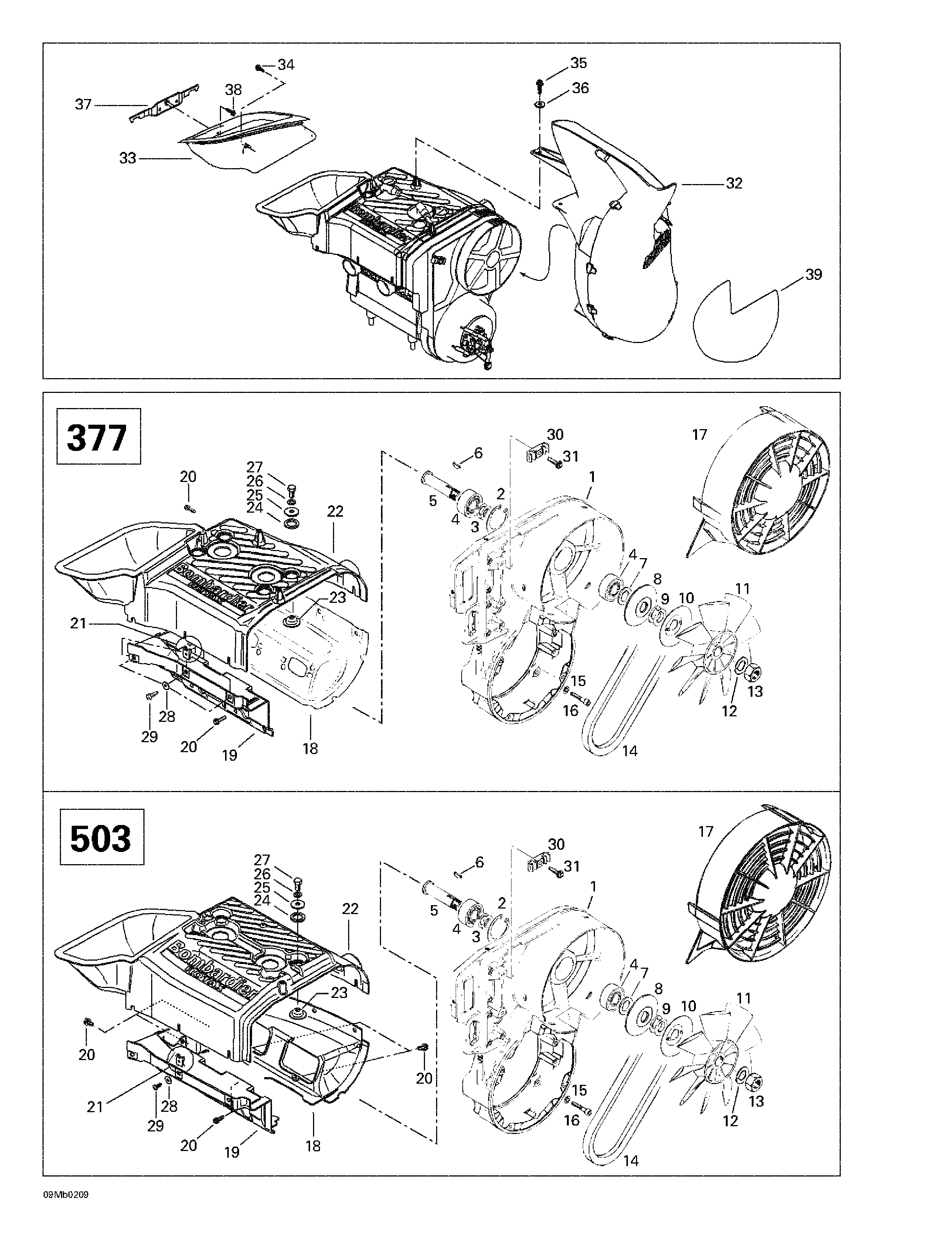

01- Cooling System And Fan для BRP Ski-Doo Grand Touring 380 F/500 F - 2002
-
№АртикулНазвание
-
1420912203 Fan HousingFan Housing
-
2420945880 Lock RingLock Ring
-
3420244585 ShimShim
-
4405406100 Ball Bearing 6203Ball Bearing 6203
-
5420937940 Fan AxleFan Axle
-
6420246015 Woodruff KeyWoodruff Key
-
7420827650 Spacer BushingSpacer Bushing
-
8420980496 FlangeFlange
-
9420827080 Shim 0.5 mmShim 0.5 mm
-
420827082 Shim 0.2 mmShim 0.2 mm
-
10420980523 Protection WasherProtection Washer
-
11420866292 FanFan
-
12420945756 Lock Washer 16 mmLock Washer 16 mm
-
13420942285 Hex. Nut M16 x 1.5Hex. Nut M16 x 1.5
-
14414630700 V-Belt. 380 F.V-Belt. 380 F.
-
414630800 V-Belt. 500 F.V-Belt. 500 F.
-
15420945751 Lock Washer 6 mmLock Washer 6 mm
-
16205063044 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
17420975695 Fan CoverFan Cover
-
18420810764 Cylinder Cowl (Exhaust Side). 380 F.Cylinder Cowl (Exhaust Side). 380 F.
-
420811390 Cylinder Cowl (Exhaust Side). 500 F.Cylinder Cowl (Exhaust Side). 500 F.
-
19420811805 Cylinder Cowl (Intake Side). 380 F.Cylinder Cowl (Intake Side). 380 F.
-
420811825 Cylinder Cowl (Intake Side). 500 F.Cylinder Cowl (Intake Side). 500 F.
-
20420240580 Taptite Screw M6 x 16Taptite Screw M6 x 16
-
21417300005 Spring Nut 4.8Spring Nut 4.8
-
22420811800 Cylinder Cowl. 380 F.Cylinder Cowl. 380 F.
-
420811820 Cylinder Cowl. 500 F.Cylinder Cowl. 500 F.
-
23420827817 Cup WasherCup Washer
-
24420960865 Rubber WasherRubber Washer
-
25420227935 WasherWasher
-
26420945752 Lock Washer 8 mmLock Washer 8 mm
-
27207181644 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
28420926180 Flat WasherFlat Washer
-
29417300006 Self Tapping Screw M4.8 x 16Self Tapping Screw M4.8 x 16
-
30420860945 ClampClamp
-
31420841555 Self Tapping Screw M5 x 20Self Tapping Screw M5 x 20
-
32509000117 Inlet DuctInlet Duct
-
33509000118 Outlet DuctOutlet Duct
-
34250000068 Hex. Tapping Screw #8 x 5/82Hex. Tapping Screw #8 x 5/82
-
35241151640 Hex. Flanged Screw K50 x 16Hex. Flanged Screw K50 x 16
-
36391301600 WasherWasher
-
37509000164 SupportSupport
-
38732601210 Hex. Tapping ScrewHex. Tapping Screw
-
39514053363 Refletive SheetRefletive Sheet
