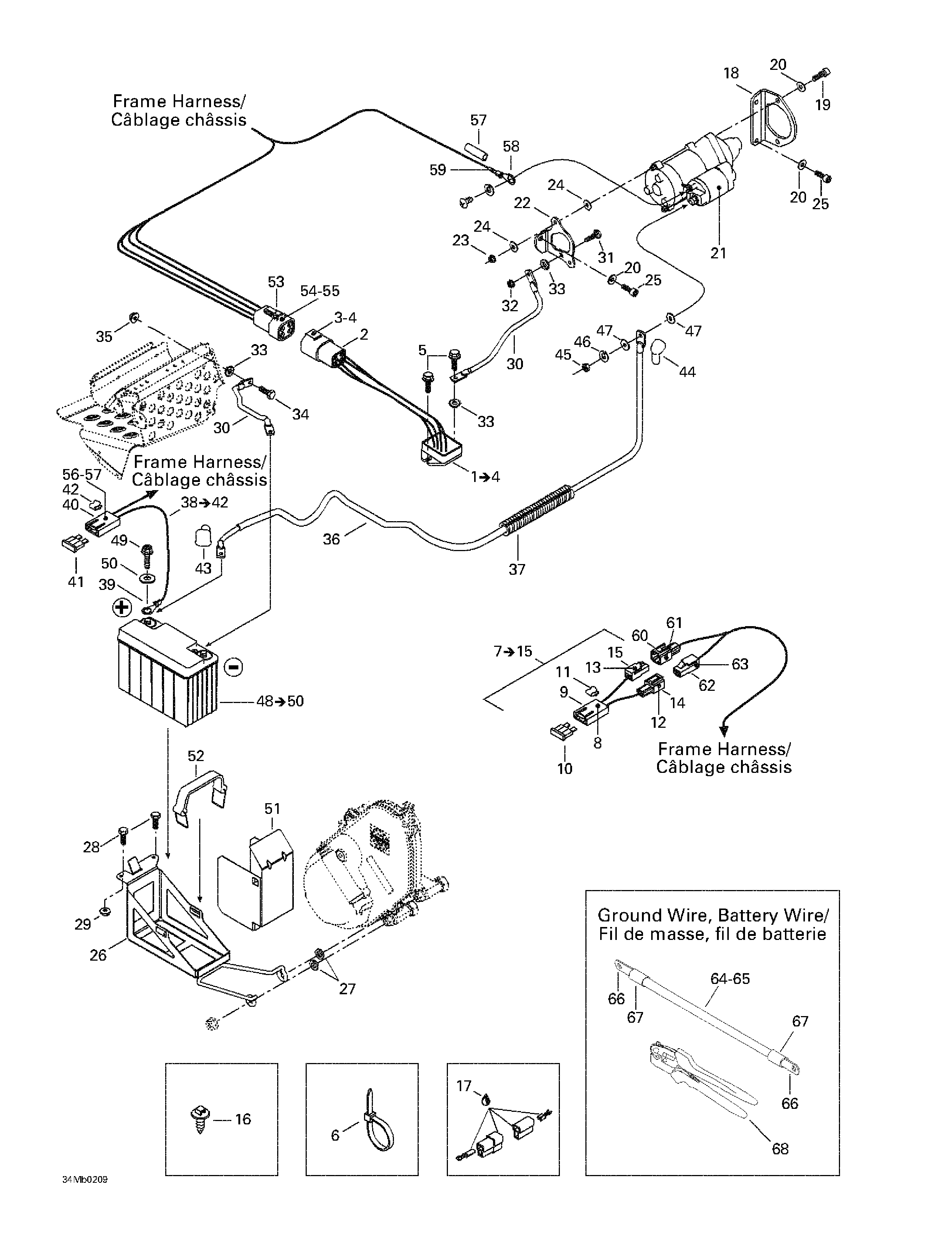

10- Battery And Starter для BRP Ski-Doo Grand Touring 380 F/500 F - 2002
-
№АртикулНазвание
-
1515175656 Voltage Regulator. Includes 1 - 4.Voltage Regulator. Includes 1 - 4.
-
2278001477 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
4278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
5210261680 Hex. Forming Screw M6 x 16Hex. Forming Screw M6 x 16
-
6293750001 Tie Rap 94 mmTie Rap 94 mm
-
293750009 Tie Rap 160 mmTie Rap 160 mm
-
414115200 Tie Rap 180 mmTie Rap 180 mm
-
8409011600 Female TerminalFemale Terminal
-
9409004000 Fuse HolderFuse Holder
-
10409003900 Fuse (20 Amperes)Fuse (20 Amperes)
-
11409014200 Backward ClipBackward Clip
-
12515175273 Male TerminalMale Terminal
-
13515175282 Female TerminalFemale Terminal
-
14515175509 Male Terminal Housing (1 Circuit)Male Terminal Housing (1 Circuit)
-
15515175510 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
16293730018 Dart MountDart Mount
-
17293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
18515175659 Starter Bracket (PTO). 380 F.Starter Bracket (PTO). 380 F.
-
515175652 Starter Bracket (PTO). 500 F.Starter Bracket (PTO). 500 F.
-
19205082544 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
20234181401 Lock Washer 8 mmLock Washer 8 mm
-
21515175795 StarterStarter
-
22515175660 Starter Bracket (MAG). 380 F.Starter Bracket (MAG). 380 F.
-
515175633 Starter Bracket (MAG). 500 F.Starter Bracket (MAG). 500 F.
-
23232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
24391301700 WasherWasher
-
25205082044 Socket Head Screw M8 x 20Socket Head Screw M8 x 20
-
26515175625 Battery SupportBattery Support
-
27503175800 WasherWasher
-
28207151444 Hex. Screw M5 x 14Hex. Screw M5 x 14
-
29233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
31207762044 Carriage Bolt M6 x 20Carriage Bolt M6 x 20
-
32233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
33250200000 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
34207161644 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
35233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
37409901700 TubingTubing
-
38515175489 Battery Fuse Wire. Includes 38 - 42.Battery Fuse Wire. Includes 38 - 42.
-
39278000992 Ring TerminalRing Terminal
-
40409004000 Fuse HolderFuse Holder
-
41410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
42409014200 Backward ClipBackward Clip
-
43570151000 Protector CapProtector Cap
-
44278000020 Protector CapProtector Cap
-
45232081414 Hex. Nut M8Hex. Nut M8
-
46234181401 Lock Washer 8 mmLock Washer 8 mm
-
47234081410 Flat Washer 8 mmFlat Washer 8 mm
-
48515175642 Battery (18 Amperes). Includes 48 - 50.Battery (18 Amperes). Includes 48 - 50.
-
51515175643 DeflectorDeflector
-
52515175475 Battery StrapBattery Strap
-
53278001473 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
54278001474 Female Lock (4 Circuits)Female Lock (4 Circuits)
-
55515175567 Female TerminalFemale Terminal
-
57415079200 HoseHose
-
58515175504 Ring TerminalRing Terminal
-
59515175608 Tubing (Thermo)Tubing (Thermo)
-
60515175510 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
61515175273 Male TerminalMale Terminal
-
62515175509 Male Terminal Housing (1 Circuit)Male Terminal Housing (1 Circuit)
-
63515175282 Female TerminalFemale Terminal
-
64278001680 Ground Cable Battery (no. 6) (Meter)Ground Cable Battery (no. 6) (Meter)
-
278001681 Ground Cable Battery (no. 4) (Meter)Ground Cable Battery (no. 4) (Meter)
-
65278001690 Red Cable Battery (no. 6) (Meter)Red Cable Battery (no. 6) (Meter)
-
66278001682 Flat Terminal (Small Hole)Flat Terminal (Small Hole)
-
278001683 Terminal 45 Deg. (Small Hole)Terminal 45 Deg. (Small Hole)
-
278001684 Terminal 90 Deg. (Small Hole)Terminal 90 Deg. (Small Hole)
-
278001685 Flat Terminal (Big Hole)Flat Terminal (Big Hole)
-
278001686 Terminal 45 Deg. (Big Hole)Terminal 45 Deg. (Big Hole)
-
278001687 Terminal 90 Deg. (Big Hole)Terminal 90 Deg. (Big Hole)
-
278001688 Flat TerminalFlat Terminal
-
67278001692 Heat ShrinkHeat Shrink
-
68529035730 Crimp PlierCrimp Plier
