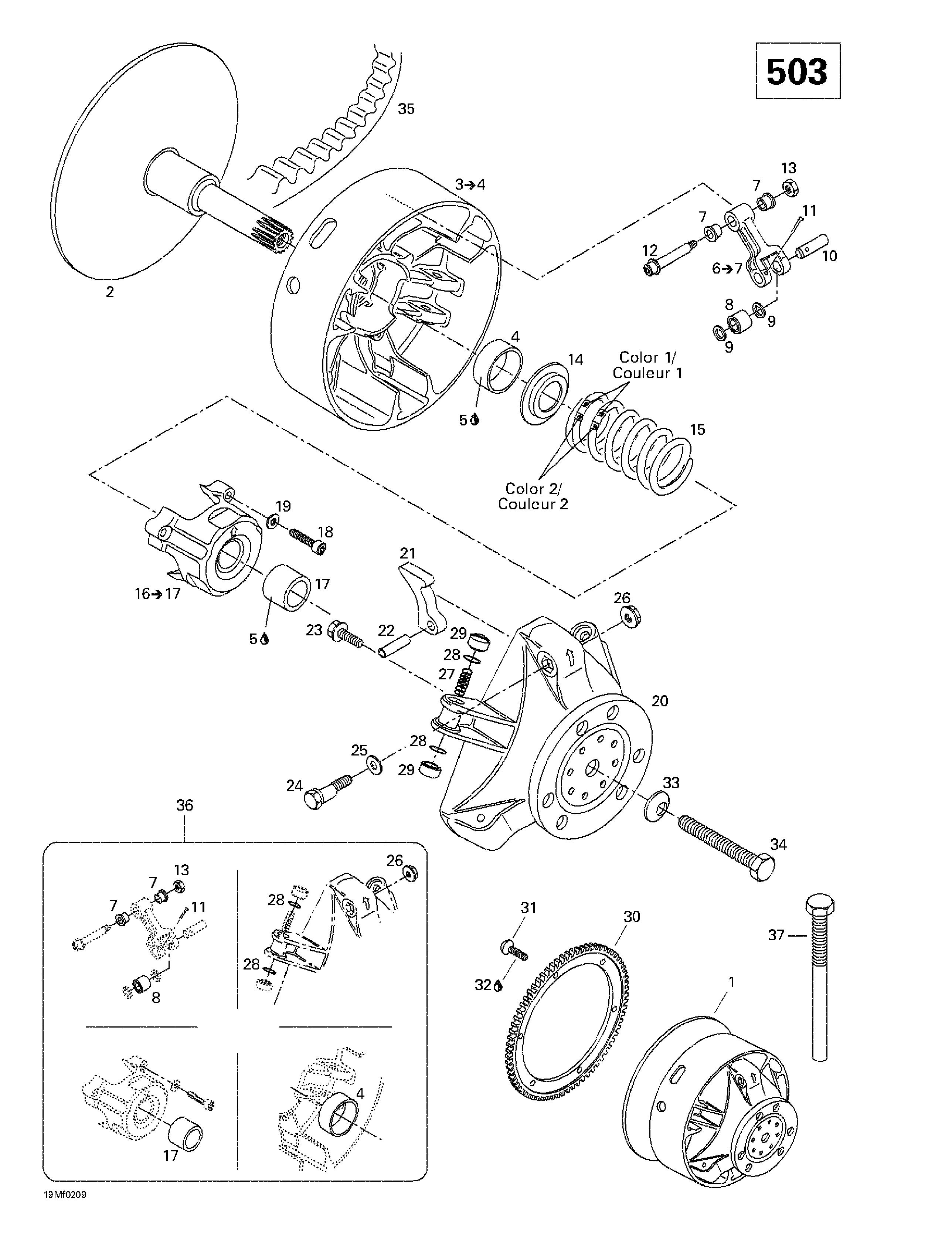

05- Drive Pulley (503) для BRP Ski-Doo Grand Touring 380 F/500 F - 2002

№

Артикул

Название
2

417222412 Fixed Flange. 500 F.

Fixed Flange. 500 F.

36 800 ₽
3

417222241 Sliding Flange Ass'y. Includes 3 - 4. 500 F.

Sliding Flange Ass'y. Includes 3 - 4. 500 F.

31 280 ₽
4

417004201 Bushing. 500 F.

Bushing. 500 F.

2 340 ₽
5

413703100 Loctite 609, 10 ml. 500 F.

Loctite 609, 10 ml. 500 F.

2 760 ₽
6

417222383 Lever Ass'y. Includes 6 - 7. 500 F.

Lever Ass'y. Includes 6 - 7. 500 F.

6 630 ₽
7

417004305 Bushing. 500 F.

Bushing. 500 F.

3 180 ₽
8

417003900 Roller Ass'y. 500 F.

Roller Ass'y. 500 F.

0 ₽
9

417004302 Stopper Washer. 500 F.

Stopper Washer. 500 F.

3 010 ₽
10

417004309 Pin. 500 F.

Pin. 500 F.

8 650 ₽
11

732958001 Cotter Pin. 500 F.

Cotter Pin. 500 F.

80 ₽
12

417004800 Screw Ass'y. 500 F.

Screw Ass'y. 500 F.

2 660 ₽
13

232561414 Elastic Stop Nut M6. 500 F.

Elastic Stop Nut M6. 500 F.

50 ₽
14

417222044 Spring Seat. 500 F.

Spring Seat. 500 F.

0 ₽
15

415015200 Spring (Red/Orange). 500 F.

Spring (Red/Orange). 500 F.

17 640 ₽
16

417222304 Spring Cover Ass'y. Includes 16 - 17. 500 F.

Spring Cover Ass'y. Includes 16 - 17. 500 F.

7 690 ₽
17

417004501 Bushing. 500 F.

Bushing. 500 F.

2 260 ₽
18

205000038 Socket Head Screw M6 x 40. 500 F.

Socket Head Screw M6 x 40. 500 F.

0 ₽
19

420245370 Washer. 500 F.

Washer. 500 F.

90 ₽
20

417222081 Governor Cup Ass'y. 500 F.

Governor Cup Ass'y. 500 F.

48 190 ₽
21

417005296 Ramp 296. 500 F.

Ramp 296. 500 F.

2 750 ₽
22

732804009 Rolled Pin M8 x 24. 500 F.

Rolled Pin M8 x 24. 500 F.

280 ₽
23

210361890 Hex. Screw M6 x 18. 500 F.

Hex. Screw M6 x 18. 500 F.

990 ₽
24

417005500 Calibration Screw. 500 F.

Calibration Screw. 500 F.

0 ₽
25

417005600 Washer. 500 F.

Washer. 500 F.

1 540 ₽
26

233061414 Hex. Flanged Nut M6. 500 F.

Hex. Flanged Nut M6. 500 F.

600 ₽
27

417005700 Spring. 500 F.

Spring. 500 F.

1 560 ₽
28

732401030 O-Ring. 500 F.

O-Ring. 500 F.

330 ₽
29

417005800 Slider Shoe. 500 F.

Slider Shoe. 500 F.

0 ₽
30

417300057 Ring Gear (86 Teeth). 500 F.

Ring Gear (86 Teeth). 500 F.

0 ₽
31

236281684 Screw M8 x 16. 500 F.

Screw M8 x 16. 500 F.

1 500 ₽
32

293800005 Loctite 271, 10 ml. 500 F.

Loctite 271, 10 ml. 500 F.

2 300 ₽
33

250200005 Conical Spring Washer. 500 F.

Conical Spring Washer. 500 F.

1 190 ₽
34

417113800 Bolt. 500 F.

Bolt. 500 F.

1 400 ₽
35

415060600 Drive Belt. 500 F.

Drive Belt. 500 F.

49 560 ₽
36

417006100 Clutch Repair Kit. 500 F.

Clutch Repair Kit. 500 F.

16 970 ₽
37

529007900 Puller Inner Half. 500 F.

Puller Inner Half. 500 F.

12 970 ₽
