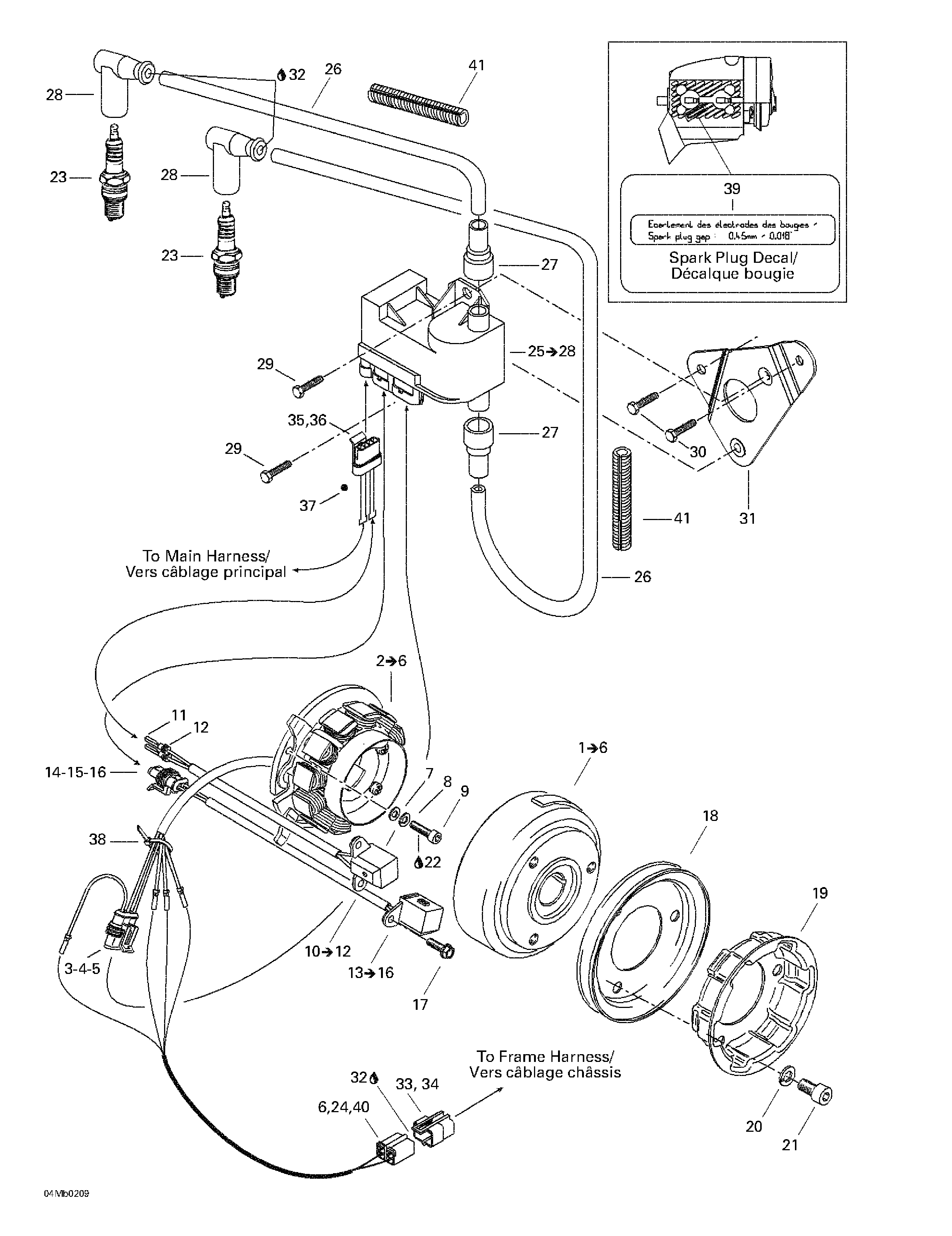

03- Magneto для BRP Ski-Doo Grand Touring 380 F/500 F - 2002
-
№АртикулНазвание
-
1420889160 Magneto Ducati 12V, 240W. Includes 1 - 6.Magneto Ducati 12V, 240W. Includes 1 - 6.
-
1420889370 FlywheelFlywheel
-
2420889360 Stator Plate Ass'y. Includes 2 - 6.Stator Plate Ass'y. Includes 2 - 6.
-
3409209600 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
4278001014 Female TerminalFemale Terminal
-
5278001013 SealSeal
-
6515175567 Female TerminalFemale Terminal
-
7420927571 Washer 5.3 mmWasher 5.3 mm
-
8420945750 Lock Washer 5 mmLock Washer 5 mm
-
9420840515 Socket Head Screw M5 x 18Socket Head Screw M5 x 18
-
10420966548 Pick-up Ass'y. Includes 10 - 12.Pick-up Ass'y. Includes 10 - 12.
-
11278001014 Female TerminalFemale Terminal
-
12278001013 SealSeal
-
13420966546 Pick-up Ass'y. Includes 13 - 16.Pick-up Ass'y. Includes 13 - 16.
-
14409209500 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
15278001014 Female TerminalFemale Terminal
-
16278001013 SealSeal
-
17420941925 Taptite Screw M5 x 16Taptite Screw M5 x 16
-
18420980486 V-Belt PulleyV-Belt Pulley
-
19420852414 Rope SheaveRope Sheave
-
20420845311 Lock Washer 8 mmLock Washer 8 mm
-
21420841521 Socket Head Screw M8 x 12Socket Head Screw M8 x 12
-
22293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
23414961100 Spark Plug NGK BR9-ESSpark Plug NGK BR9-ES
-
24278001473 Female Terminal Housing (4 circuits)Female Terminal Housing (4 circuits)
-
25512059518 Calibration Module. Includes 25 - 28. 380 F.Calibration Module. Includes 25 - 28. 380 F.
-
512059519 Calibration Module. 500 F.Calibration Module. 500 F.
-
26278001268 Spark Plug WireSpark Plug Wire
-
27515174900 Protection CapProtection Cap
-
28278000237 Spark Plug CapSpark Plug Cap
-
29210261680 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
30209561640 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
31512059494 Module Support Ass'yModule Support Ass'y
-
32293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
33293550004 Male Connector Housing (4 circuits)Male Connector Housing (4 circuits)
-
34515175568 Male TerminalMale Terminal
-
35409209700 Female Terminal Housing (4 circuits)Female Terminal Housing (4 circuits)
-
36278001014 Female TerminalFemale Terminal
-
37278001013 SealSeal
-
38293750001 Tie Rap 94mmTie Rap 94mm
-
39516000986 Spark Plug DecalSpark Plug Decal
-
40278001474 Lock WedgeLock Wedge
-
41409901700 TubingTubing
