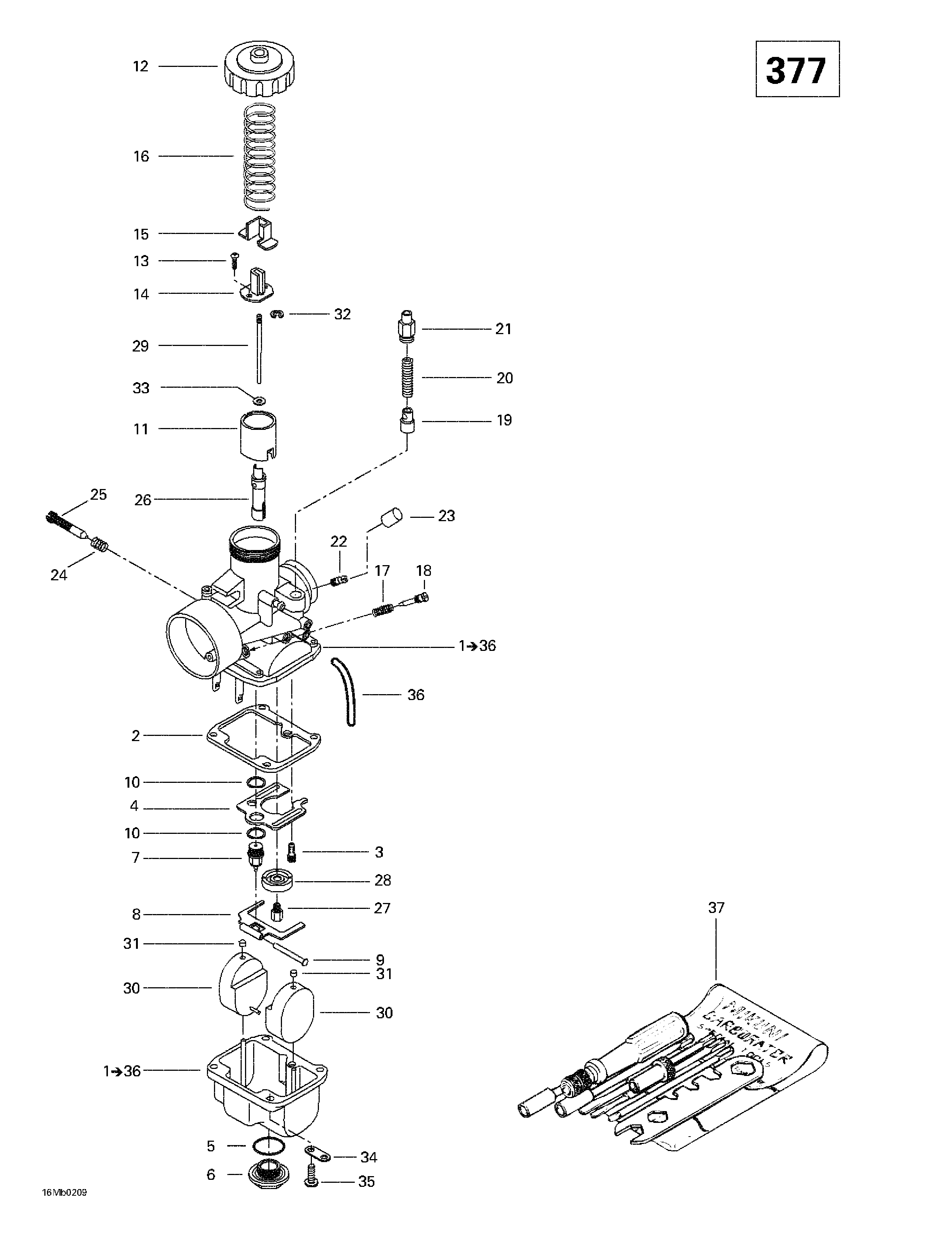

02- Carburetors (377) для BRP Ski-Doo Grand Touring 380 F/500 F - 2002
-
№АртикулНазвание
-
1403138695 Carburetor VM 30-205. Includes 1 - 36. 380 F.Carburetor VM 30-205. Includes 1 - 36. 380 F.
-
2404104200 Gasket. 380 F.Gasket. 380 F.
-
3404109100 Pilot Jet PJ 40. 380 F.Pilot Jet PJ 40. 380 F.
-
4404109600 Baffle. 380 F.Baffle. 380 F.
-
5404107300 O-Ring. 380 F.O-Ring. 380 F.
-
6404107400 Drain Plug Screw. 380 F.Drain Plug Screw. 380 F.
-
7404147500 Needle Valve 1.5. 380 F.Needle Valve 1.5. 380 F.
-
8404107600 Float Lever. 380 F.Float Lever. 380 F.
-
9404103300 Lever Pin. 380 F.Lever Pin. 380 F.
-
10404101600 Seat Washer. 380 F.Seat Washer. 380 F.
-
11404128600 Throttle Valve CA 2.0. 380 F.Throttle Valve CA 2.0. 380 F.
-
12404103700 Cover. 380 F.Cover. 380 F.
-
13404121300 Screw with Washer. 380 F.Screw with Washer. 380 F.
-
14404161987 Packing. 380 F.Packing. 380 F.
-
15404122100 Cover. 380 F.Cover. 380 F.
-
16404154800 Spring. 380 F.Spring. 380 F.
-
17404101800 Spring (Idle Adjusting Screw). 380 F.Spring (Idle Adjusting Screw). 380 F.
-
18404102300 Air Screw. 380 F.Air Screw. 380 F.
-
19404161986 Plunger Ass'y. 380 F.Plunger Ass'y. 380 F.
-
20404127400 Spring. 380 F.Spring. 380 F.
-
21404161100 Holder Guide. 380 F.Holder Guide. 380 F.
-
22404153400 Nipple. 380 F.Nipple. 380 F.
-
23404156600 Cap. 380 F.Cap. 380 F.
-
24404101700 Spring (Idle Speed Screw). 380 F.Spring (Idle Speed Screw). 380 F.
-
25404109700 Idle Speed Screw. 380 F.Idle Speed Screw. 380 F.
-
27404119500 Main Jet MJ 185. 380 F.Main Jet MJ 185. 380 F.
-
28404110900 Baffle Ring. 380 F.Baffle Ring. 380 F.
-
29404161988 Needle 6-CDY-01. 380 F.Needle 6-CDY-01. 380 F.
-
30404107100 Float. 380 F.Float. 380 F.
-
31404105800 Cap. 380 F.Cap. 380 F.
-
32404152400 E-Ring. 380 F.E-Ring. 380 F.
-
33404117000 Packing. 380 F.Packing. 380 F.
-
34404103000 Plate. 380 F.Plate. 380 F.
-
35404102000 Screw and Lock Washer. 380 F.Screw and Lock Washer. 380 F.
-
36404161851 Air Vent Tube. 380 F.Air Vent Tube. 380 F.
-
37404112000 Tool Kit. 380 F.Tool Kit. 380 F.
