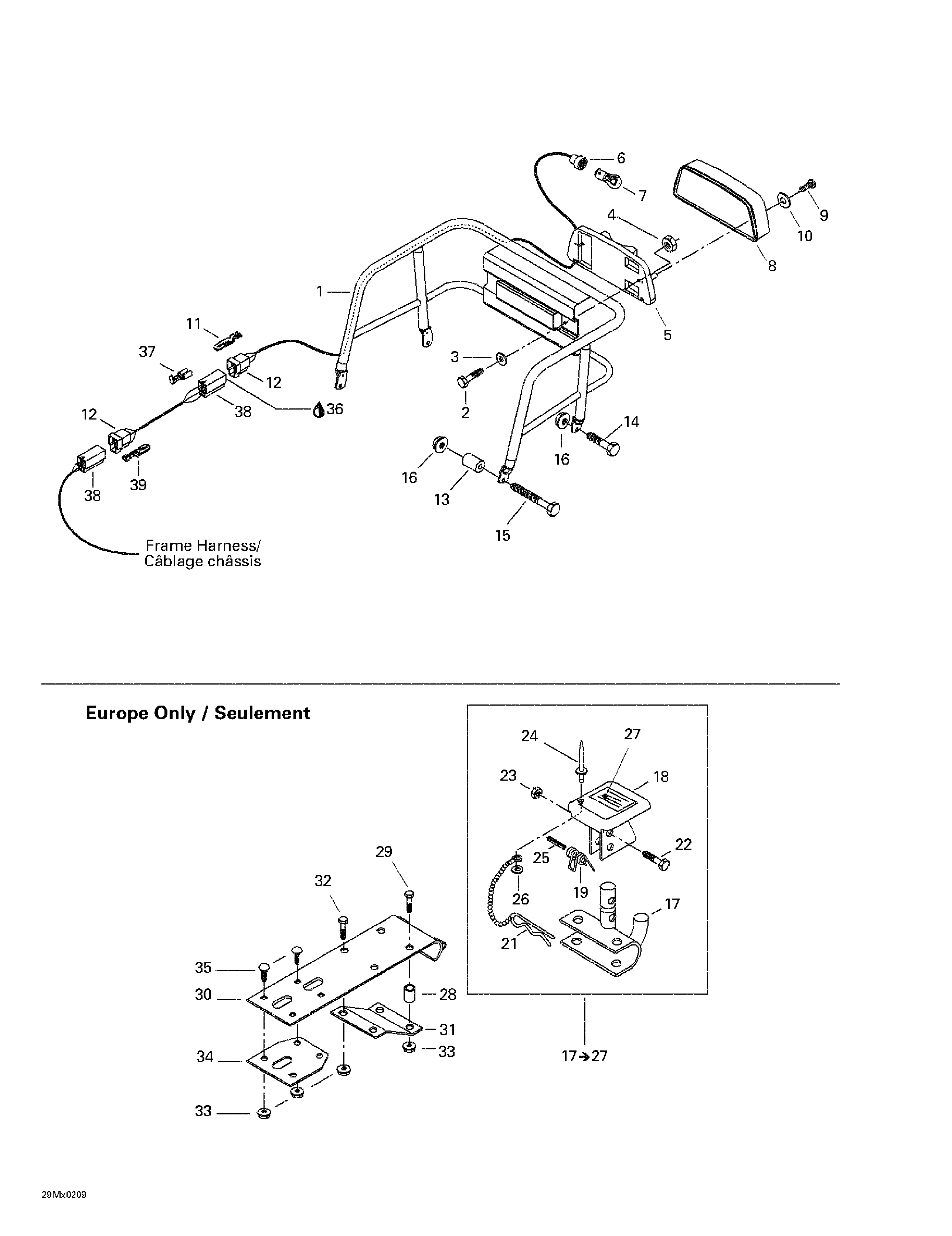

09- Cargo для BRP Ski-Doo Grand Touring 380 F/500 F - 2002
-
№АртикулНазвание
-
1517273100 RackRack
-
2207053044 Hex. Screw M5 x 30Hex. Screw M5 x 30
-
3517297900 Flat WasherFlat Washer
-
4233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
5515175397 Tail Lamp HousingTail Lamp Housing
-
6515175650 SocketSocket
-
7410504000 BulbBulb
-
8414513700 LensLens
-
9209632540 Phillips Tapping ScrewPhillips Tapping Screw
-
10414516400 WasherWasher
-
11409210000 Male TerminalMale Terminal
-
12409204200 Male Terminal HousingMale Terminal Housing
-
13517185600 SpacerSpacer
-
14207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
15207064044 Hex. Screw M6 x 40Hex. Screw M6 x 40
-
16233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
17861778700 Hitch Ass'y. Includes 17 - 27.Hitch Ass'y. Includes 17 - 27.
-
17517199300 HitchHitch
-
18517152700 Hitch ProtectorHitch Protector
-
19517152800 SpringSpring
-
21114045200 Hair PinHair Pin
-
22207063044 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
23232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
24390409400 Pop Rivet 5/32''Pop Rivet 5/32''
-
25732804000 Spring PinSpring Pin
-
27516001243 Instruction LabelInstruction Label
-
28517191700 SpacerSpacer
-
29207065044 Hex. Screw M6 x 50Hex. Screw M6 x 50
-
30511000019 SupportSupport
-
31511000022 ReinforcementReinforcement
-
32207161844 Hex. Screw M6 x 18Hex. Screw M6 x 18
-
33233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
34517256100 Inner PlateInner Plate
-
35207762044 Carriage Bolt M6 x 20Carriage Bolt M6 x 20
-
36293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
37409205300 Female TerminalFemale Terminal
-
38409204300 Female Terminal HousingFemale Terminal Housing
-
39409206100 Male TerminalMale Terminal
