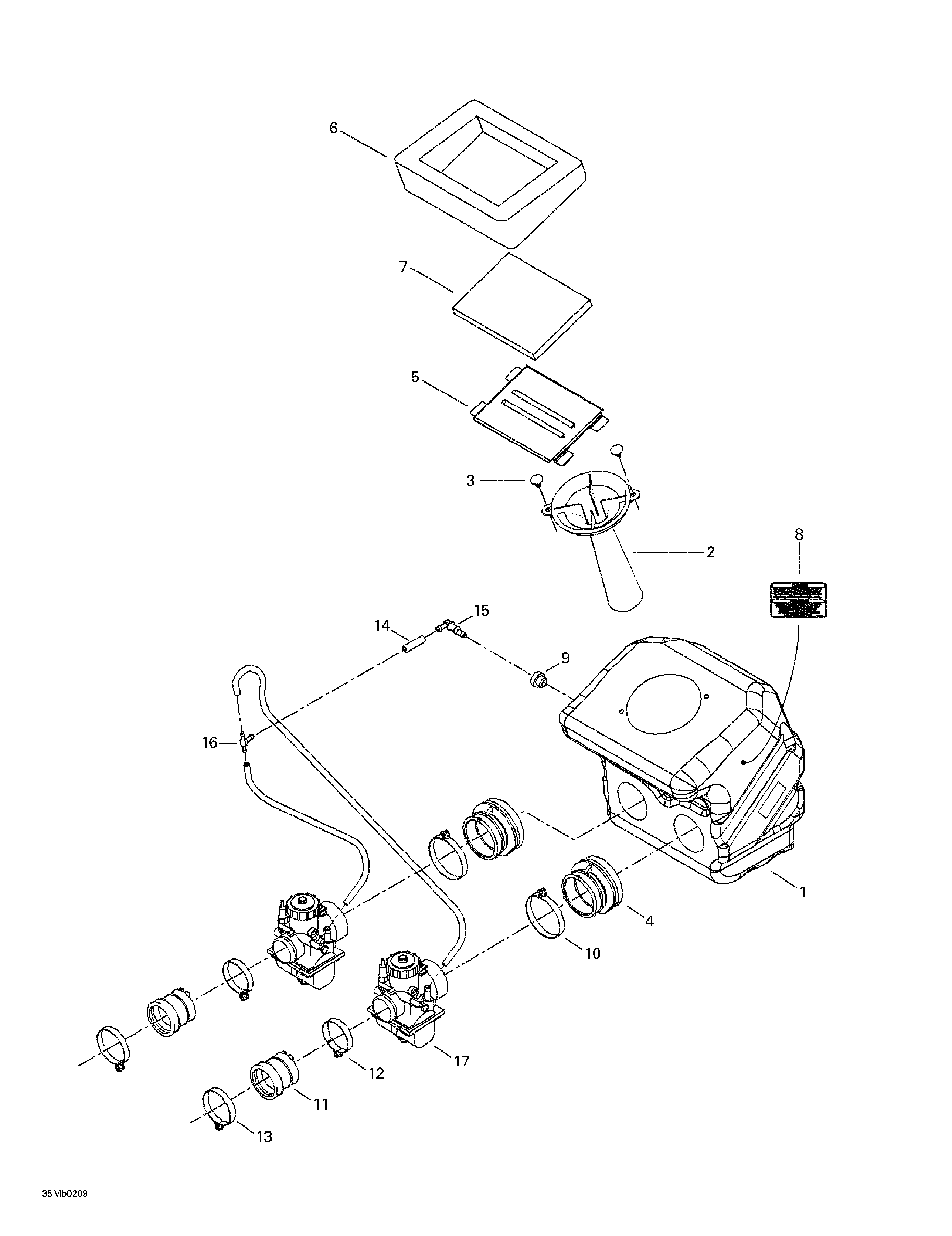

02- Air Intake System для BRP Ski-Doo Grand Touring 380 F/500 F - 2002
-
№АртикулНазвание
-
1508000211 Air Intake. 380 F.Air Intake. 380 F.
-
508000215 Air Intake. 500 F.Air Intake. 500 F.
-
2572054803 Inlet TubeInlet Tube
-
3414644300 DartDart
-
4508000203 Adaptor 34 mmAdaptor 34 mm
-
5508000004 Intake GrillIntake Grill
-
6508000245 Outer FoamOuter Foam
-
7508000154 Air FilterAir Filter
-
8516001191 Caution LabelCaution Label
-
9513032908 GrommetGrommet
-
10508000217 Gear ClampGear Clamp
-
11512059396 Carburetor Adaptor. 500 F.Carburetor Adaptor. 500 F.
-
512059478 Carburetor Adaptor. 380 F.Carburetor Adaptor. 380 F.
-
12512059395 ClampClamp
-
13512059403 ClampClamp
-
14415080200 HoseHose
-
15414580600 Elbow Male ConnectorElbow Male Connector
-
16572045500 T-FittingT-Fitting
-
17403138695 Carburetor. 380 F.Carburetor. 380 F.
-
403138697 Carburetor. 500 F.Carburetor. 500 F.
