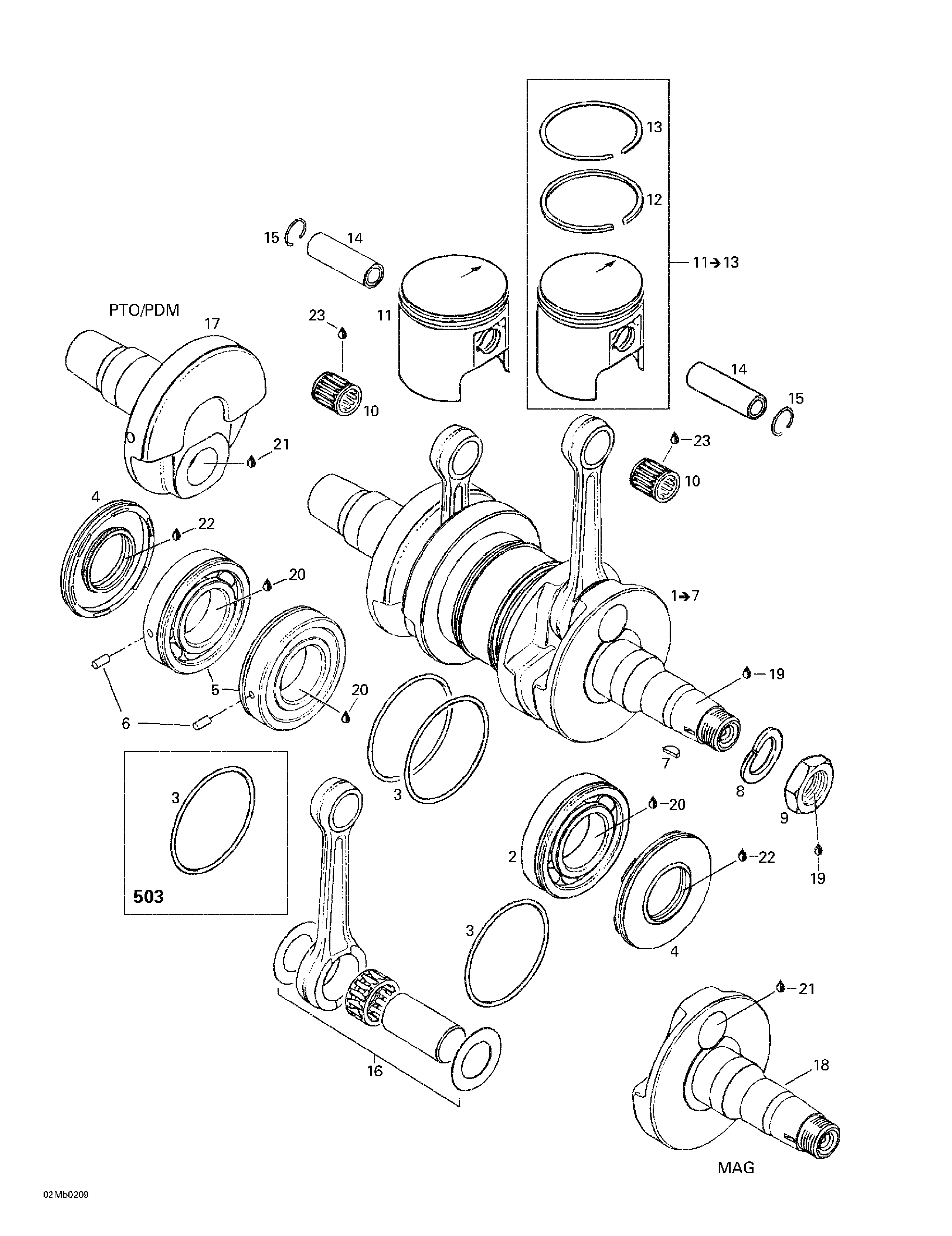

01- Crankshaft And Pistons для BRP Ski-Doo Grand Touring 380 F/500 F - 2002
-
№АртикулНазвание
-
1420887249 Crankshaft Ass'y. Includes 1 - 7. 380 F.Crankshaft Ass'y. Includes 1 - 7. 380 F.
-
420888391 Crankshaft Ass'y. 500 F.Crankshaft Ass'y. 500 F.
-
2420832570 Ball Bearing 6207Ball Bearing 6207
-
3293300022 O-Ring 64 mmO-Ring 64 mm
-
4290831952 Oil SealOil Seal
-
5420832574 Ball Bearing 6207 Ass'y. Includes 5 - 6.Ball Bearing 6207 Ass'y. Includes 5 - 6.
-
6420929972 Dowel PinDowel Pin
-
7420246055 Woodruff KeyWoodruff Key
-
8420945759 Lock Washer 22 mmLock Washer 22 mm
-
9420842230 Hex. Nut M 22Hex. Nut M 22
-
10420932904 Needle Bearing. 380 F.Needle Bearing. 380 F.
-
420832320 Needle Bearing. 500 F.Needle Bearing. 500 F.
-
11420887475 Piston Ass'y 61.94 mm. Includes 11 - 13. 380 F.Piston Ass'y 61.94 mm. Includes 11 - 13. 380 F.
-
420887476 Oversize Piston Ass'y 62.19 mm. 380 F.Oversize Piston Ass'y 62.19 mm. 380 F.
-
420887477 Oversize Piston Ass'y 62.44 mm. 380 F.Oversize Piston Ass'y 62.44 mm. 380 F.
-
420888175 Piston Ass'y 71.92 mm. 500 F.Piston Ass'y 71.92 mm. 500 F.
-
420888176 Oversize Piston Ass'y 72.17mm. 500 F.Oversize Piston Ass'y 72.17mm. 500 F.
-
420888177 Oversize Piston Ass'y 72.42 mm. 500 F.Oversize Piston Ass'y 72.42 mm. 500 F.
-
12420915895 Rectangular Ring 62.0 mm. 380 F.Rectangular Ring 62.0 mm. 380 F.
-
420915896 Rectangular Ring 62.25 mm. 380 F.Rectangular Ring 62.25 mm. 380 F.
-
420915897 Rectangular Ring 62.5 mm. 380 F.Rectangular Ring 62.5 mm. 380 F.
-
420915850 Rectangular Ring 72 mm. 500 F.Rectangular Ring 72 mm. 500 F.
-
420915851 Rectangular Ring 72.25 mm. 500 F.Rectangular Ring 72.25 mm. 500 F.
-
420915852 Rectangular Ring 72.5 mm. 500 F.Rectangular Ring 72.5 mm. 500 F.
-
13420215215 Semi-Trapez Ring 62.0 mm. 380 F.Semi-Trapez Ring 62.0 mm. 380 F.
-
420215216 Semi-Trapez Ring 62.25 mm. 380 F.Semi-Trapez Ring 62.25 mm. 380 F.
-
420215217 Semi-Trapez Ring 62.5 mm. 380 F.Semi-Trapez Ring 62.5 mm. 380 F.
-
420815200 Semi-Trapez Ring 72.0 mm. 500 F.Semi-Trapez Ring 72.0 mm. 500 F.
-
420815201 Semi-Trapez Ring 72.25 mm. 500 F.Semi-Trapez Ring 72.25 mm. 500 F.
-
420815202 Semi-Trapez Ring 72.5 mm. 500 F.Semi-Trapez Ring 72.5 mm. 500 F.
-
14420916260 Piston Pin. 380 F.Piston Pin. 380 F.
-
420916186 Piston Pin. 500 F.Piston Pin. 500 F.
-
15420945735 CirclipCirclip
-
16420996334 Rod Repair Kit. 380 F.Rod Repair Kit. 380 F.
-
420996394 Rod Repair Kit. 500 F.Rod Repair Kit. 500 F.
-
17420818204 Crankshaft half PTO. 380 F.Crankshaft half PTO. 380 F.
-
420818244 Crankshaft half PTO. 500 F.Crankshaft half PTO. 500 F.
-
18420819010 Crankshaft half MAG. 380 F.Crankshaft half MAG. 380 F.
-
420819020 Crankshaft half MAG. 500 F.Crankshaft half MAG. 500 F.
-
19293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
20293800070 Loctite 767, Antiseize Lubricant, 454gLoctite 767, Antiseize Lubricant, 454g
-
21413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
22413707000 Molykote 111Molykote 111
-
23413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
