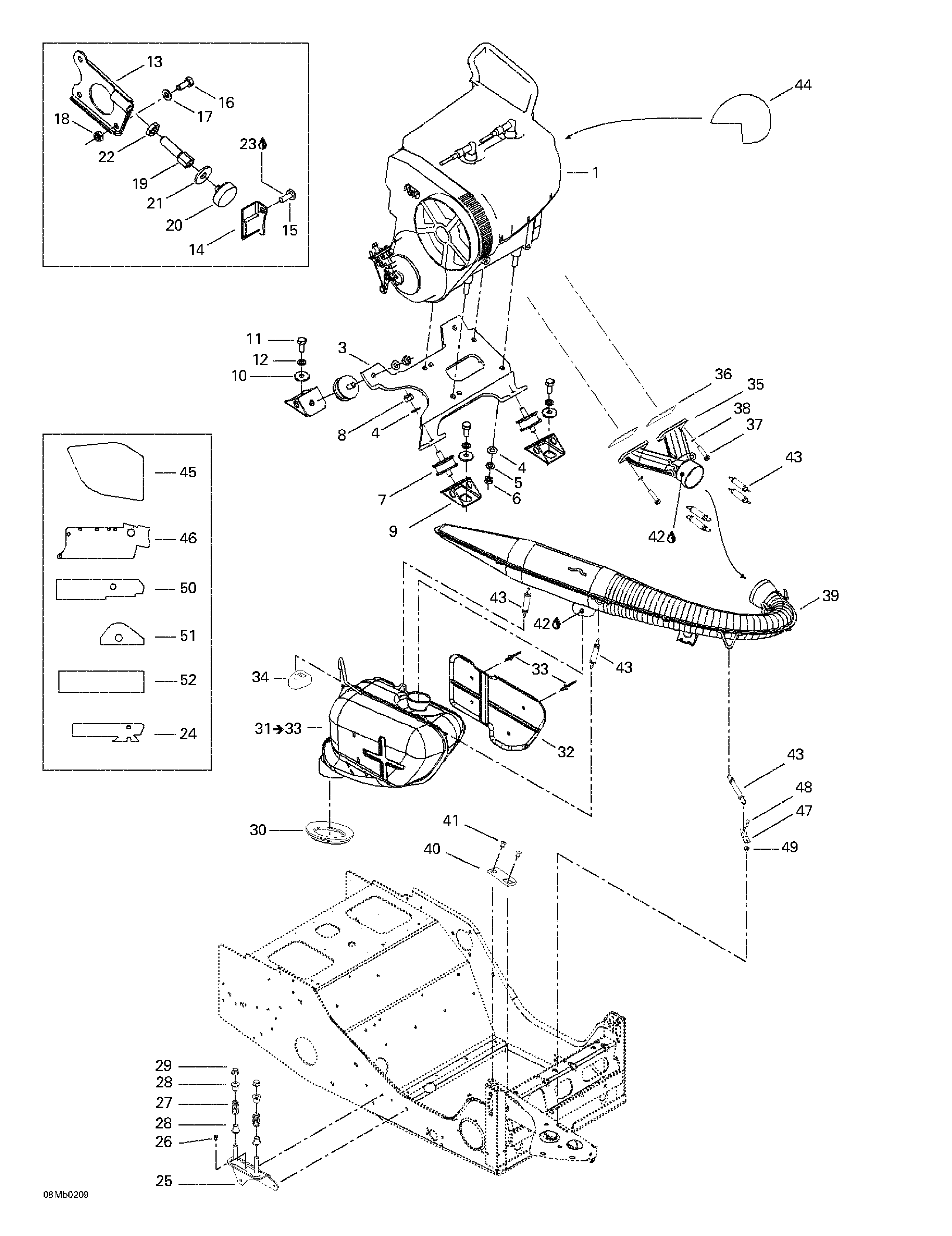

01- Engine Support And Muffler для BRP Ski-Doo Grand Touring 380 F/500 F - 2002
-
№АртикулНазвание
-
1400308910 ENGINE 377. 380 F.ENGINE 377. 380 F.
-
400509728 ENGINE 503. 500 F.ENGINE 503. 500 F.
-
2512051800 Spacer. 380 F.Spacer. 380 F.
-
3512059397 Engine SupportEngine Support
-
4234001410 Washer 10 mmWasher 10 mm
-
5234100602 Lock Washer 10 mmLock Washer 10 mm
-
6232006414 Nut M10Nut M10
-
7570128700 Rubber MountRubber Mount
-
8233601416 Elastic Stop Nut M10Elastic Stop Nut M10
-
9512050900 SupportSupport
-
10512056700 Lock WasherLock Washer
-
11207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
12234100602 Lock WasherLock Washer
-
13512059446 Welded PlateWelded Plate
-
14512059399 Welded PlateWelded Plate
-
15236282084 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
16207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
17234081410 WasherWasher
-
18232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
19512058800 Stopper ScrewStopper Screw
-
20512059056 StopperStopper
-
21512059057 WasherWasher
-
22732610019 Nut M12Nut M12
-
23293800005 Loctite 271, 10mlLoctite 271, 10ml
-
24514053391 Reflective Sheet (White, B-153). 500 F.Reflective Sheet (White, B-153). 500 F.
-
25514053263 BracketBracket
-
26390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
27414913700 SpringSpring
-
28514053343 GuideGuide
-
29233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
30570039000 Exhaust GrommetExhaust Grommet
-
31514053387 Muffler Ass'y. Includes 31 - 33. 380 F.Muffler Ass'y. Includes 31 - 33. 380 F.
-
514053388 Muffler Ass'y. 500 F.Muffler Ass'y. 500 F.
-
32514053389 Heat ShieldHeat Shield
-
33390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
34514052704 Rubber BumperRubber Bumper
-
35420673060 Exhaust Manifold. 500 F.Exhaust Manifold. 500 F.
-
420878938 Exhaust Manifold. 380 F.Exhaust Manifold. 380 F.
-
36420831849 Gasket 1 mm. 500 F.Gasket 1 mm. 500 F.
-
420850114 Gasket. 380 F.Gasket. 380 F.
-
37205083044 Socket Head Screw M8 x 30Socket Head Screw M8 x 30
-
38234181401 Lock Washer 8 mmLock Washer 8 mm
-
39514053243 Calibration TubeCalibration Tube
-
40570044100 Rubber PadRubber Pad
-
41390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
42293800090 Sealant, Loctite 30542, 80 mlSealant, Loctite 30542, 80 ml
-
43415107100 SpringSpring
-
44514053363 Reflective SheetReflective Sheet
-
45514052718 Reflective SheetReflective Sheet
-
46514053390 Reflective SheetReflective Sheet
-
47514034000 Spring BracketSpring Bracket
-
48207151244 Hex. Screw M5 x 12Hex. Screw M5 x 12
-
49233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
50514053435 Reflective SheetReflective Sheet
-
51514053446 Reflective SheetReflective Sheet
-
52514053392 Reflective SheetReflective Sheet
