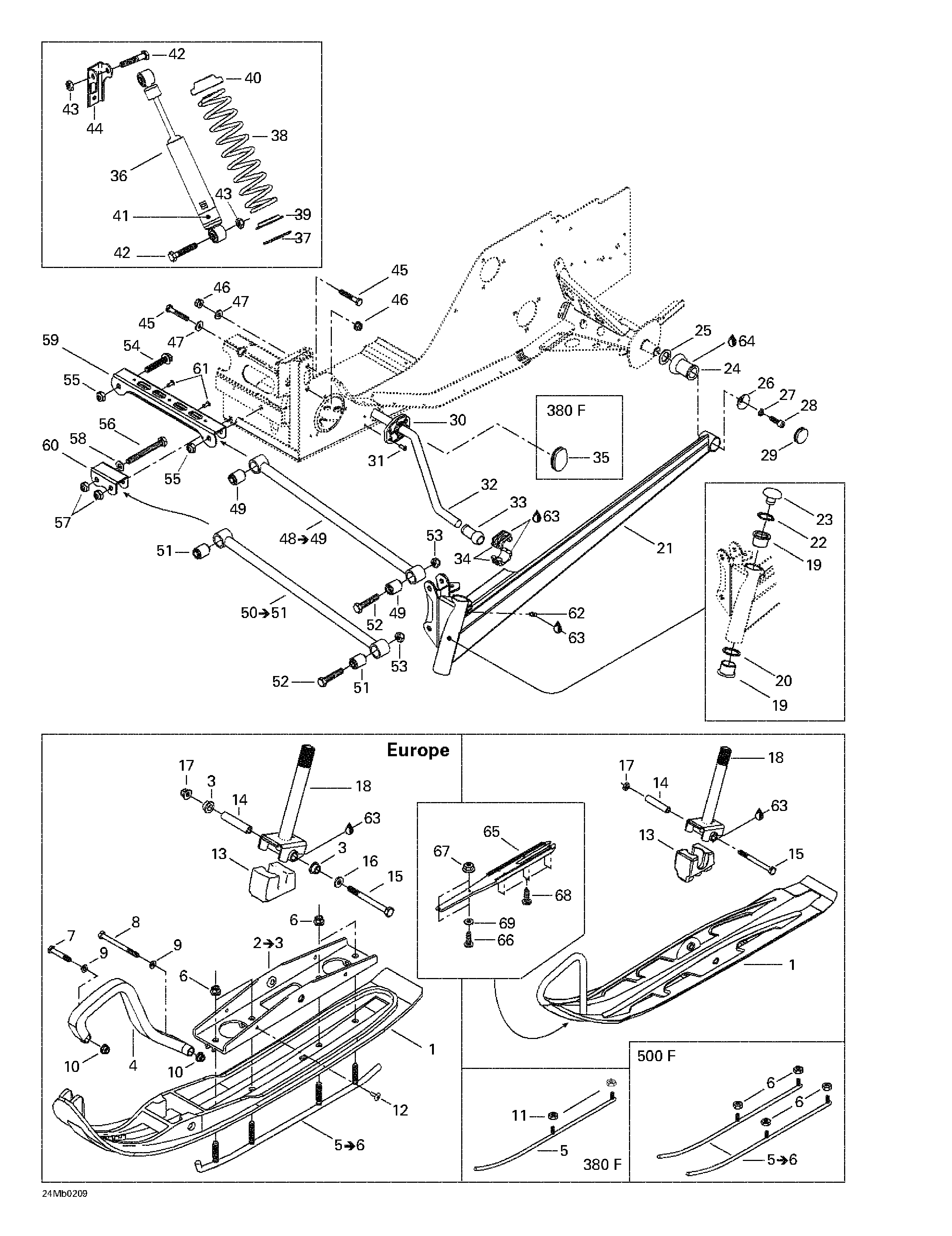

07- Front Suspension And Ski для BRP Ski-Doo Grand Touring 380 F/500 F - 2002
-
№АртикулНазвание
-
1505070189 Ski Liner (EuropeSki Liner (Europe
-
505070370 SkiSki
-
2505070055 Bridge Ass'y (Europe). Includes 2 - 3.Bridge Ass'y (Europe). Includes 2 - 3.
-
3505070001 Bushing (Europe)Bushing (Europe)
-
4572101000 Plastic Handle (Europe)Plastic Handle (Europe)
-
5505070428 Ski Weld Runner (C/U). 380 F.Ski Weld Runner (C/U). 380 F.
-
5860501900 Carbide Runner Kit. Includes 5 - 6.Carbide Runner Kit. Includes 5 - 6.
-
860502200 Carbide Weld Runner. 500 F.Carbide Weld Runner. 500 F.
-
6233601416 Elastic Locking Nut M10 (Europe)Elastic Locking Nut M10 (Europe)
-
232581414 Elastic Stop Nut M8. 500 F.Elastic Stop Nut M8. 500 F.
-
7207085044 Hex. Screw M8 x 50 (Europe)Hex. Screw M8 x 50 (Europe)
-
8230080044 Hex. Screw M8 x 100 (Europe)Hex. Screw M8 x 100 (Europe)
-
9234081410 Flat Washer 8 mm (Europe)Flat Washer 8 mm (Europe)
-
10233281414 Elastic Flanged Nut M8 (Europe)Elastic Flanged Nut M8 (Europe)
-
11232581414 Elastic Stop Nut M8. 380 F.Elastic Stop Nut M8. 380 F.
-
12390911100 Pop Rivet 1/4'' (Europe)Pop Rivet 1/4'' (Europe)
-
13505070324 Ski StopperSki Stopper
-
506151233 Ski Stopper (Europe)Ski Stopper (Europe)
-
14505070323 SpacerSpacer
-
506133300 Spacer (Europe)Spacer (Europe)
-
15250000001 Hex. Screw M10 x 110Hex. Screw M10 x 110
-
16732900049 Washer (Europe)Washer (Europe)
-
17233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
732610084 Flanged Nut M10 (Europe)Flanged Nut M10 (Europe)
-
18505070321 Ski LegSki Leg
-
506151234 Ski Leg (Europe)Ski Leg (Europe)
-
19505070003 CushionCushion
-
20505070004 WasherWasher
-
21505070645 R.H. Swing ArmR.H. Swing Arm
-
505070646 L.H. Swing ArmL.H. Swing Arm
-
22371910400 CirclipCirclip
-
23572091300 CapCap
-
24570062200 DamperDamper
-
25503146700 WasherWasher
-
26506079600 CupCup
-
506115800 CupCup
-
27234181401 Lock Washer 8 mmLock Washer 8 mm
-
28205582544 Socket Head Screw M8 x 25 (Scotch Grip)Socket Head Screw M8 x 25 (Scotch Grip)
-
29572045900 CapCap
-
30505070139 Bushing. 500 F.Bushing. 500 F.
-
31390402300 Pop Rivet 3/16''. 500 F.Pop Rivet 3/16''. 500 F.
-
32505070563 Stabilisator. 500 F.Stabilisator. 500 F.
-
33505070819 Ball Joint. 500 F.Ball Joint. 500 F.
-
34505070817 Sliding Bloc. 500 F.Sliding Bloc. 500 F.
-
35414916600 Plug (Nylon). 380 F.Plug (Nylon). 380 F.
-
36505070695 Front ShockFront Shock
-
37505070401 WasherWasher
-
38505070686 SpringSpring
-
39503187500 Spring GuideSpring Guide
-
40503140600 Spring StopperSpring Stopper
-
42207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
43233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
44518317518 R.H. Shock BracketR.H. Shock Bracket
-
518317519 L.H. Shock BracketL.H. Shock Bracket
-
45207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
46233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
47506151245 WasherWasher
-
48505070580 Upper Arm Ass'y. Includes 48 - 49.Upper Arm Ass'y. Includes 48 - 49.
-
49505070025 BushingBushing
-
50505070402 Lower Arm Ass'y. Includes 50 - 51.Lower Arm Ass'y. Includes 50 - 51.
-
51505070025 BushingBushing
-
52207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
53233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
54207605544 Hex. Flanged Screw M10 x 55Hex. Flanged Screw M10 x 55
-
55233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
56207009544 Hex. Screw M10 x 95Hex. Screw M10 x 95
-
57233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
58234001410 Flat Washer 10 mmFlat Washer 10 mm
-
59505070010 Upper Arm BracketUpper Arm Bracket
-
60505070011 Lower Arm BracketLower Arm Bracket
-
61390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
62408200700 Grease FittingGrease Fitting
-
63219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
64293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
-
65505070232 Proactive Control (Europe). 500 F.Proactive Control (Europe). 500 F.
-
505070087 Proactive ControlProactive Control
-
66250000015 Socket Head Screw M5 x 25 (Europe). 500 F.Socket Head Screw M5 x 25 (Europe). 500 F.
-
205451646 Socket Head Screw M5 x 25Socket Head Screw M5 x 25
-
67233251414 Elastic Flanged Stop Nut M5 (Europe). 500 F.Elastic Flanged Stop Nut M5 (Europe). 500 F.
-
233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
68250000016 Phillips Screw #10-14 x 5/8'' (Europe). 500 F.Phillips Screw #10-14 x 5/8'' (Europe). 500 F.
-
390402200 Pop Rivet 3/16Pop Rivet 3/16
-
69234061410 Flat Washer 6 mm (Europe). 500 F.Flat Washer 6 mm (Europe). 500 F.
-
234061410 Flat Washer 6 mmFlat Washer 6 mm
