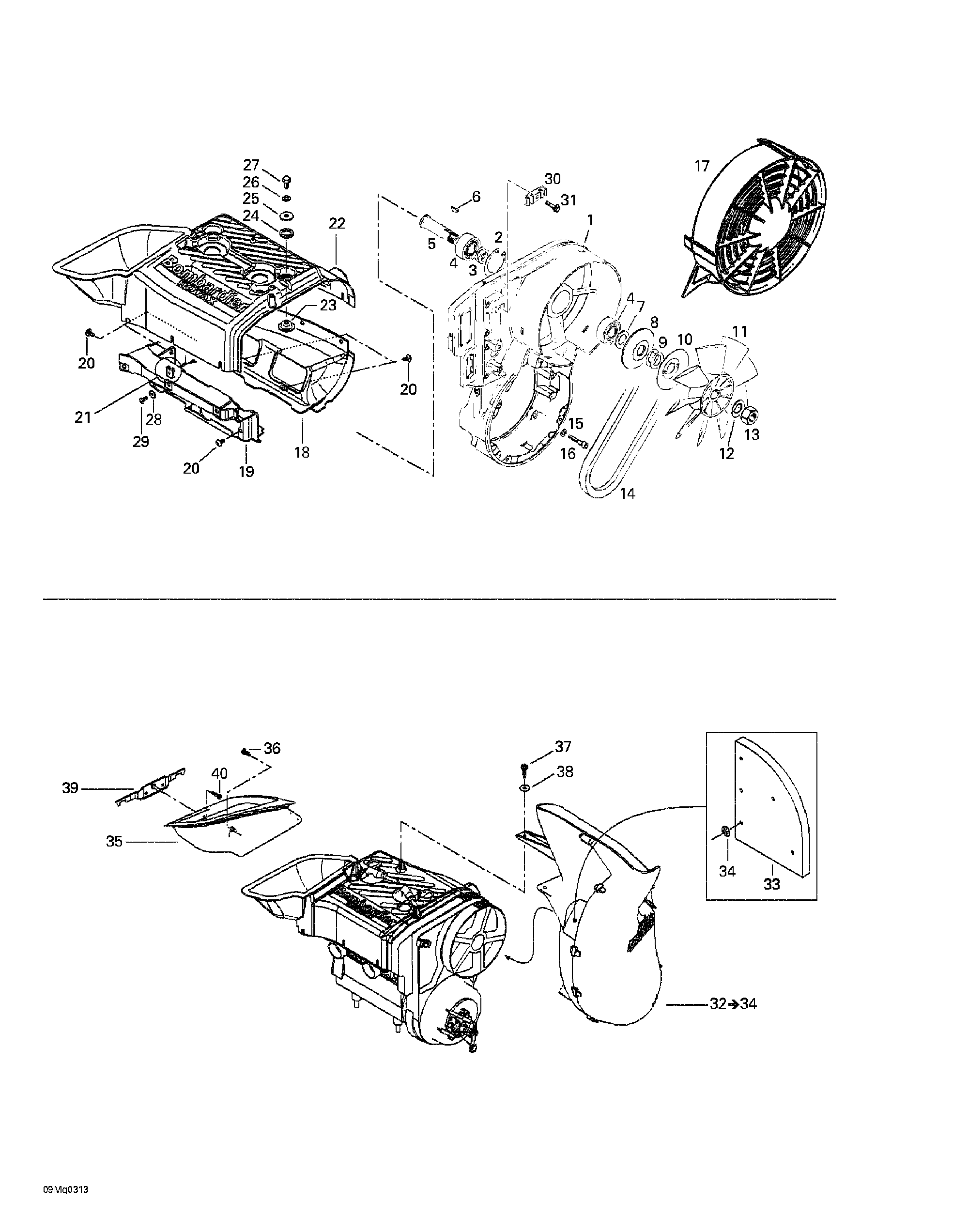

01- Cooling System And Fan для BRP Ski-Doo Summit 550 F - 2003
-
№АртикулНазвание
-
1420912203 Fan HousingFan Housing
-
2420945880 Lock RingLock Ring
-
3420244585 ShimShim
-
4420832160 Ball Bearing 6203Ball Bearing 6203
-
5420937940 Fan AxleFan Axle
-
6420246015 Woodruff KeyWoodruff Key
-
7420827650 Spacer BushingSpacer Bushing
-
8420980496 FlangeFlange
-
9420827080 Shim 0.5 mmShim 0.5 mm
-
420827082 Shim 0.2 mmShim 0.2 mm
-
10420980523 Protection WasherProtection Washer
-
11420866292 FanFan
-
12420945756 Lock Washer 16 mmLock Washer 16 mm
-
13420942285 Hex. Nut M16 x 1.5Hex. Nut M16 x 1.5
-
14414630800 V-BeltV-Belt
-
15420945751 Lock Washer 6 mmLock Washer 6 mm
-
16205063044 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
17420975695 Fan CoverFan Cover
-
18420811392 Cylinder Cowl (Exhaust Side)Cylinder Cowl (Exhaust Side)
-
19420811830 Cylinder Cowl (Intake Side)Cylinder Cowl (Intake Side)
-
20420640321 Torx Screw M6 x 16Torx Screw M6 x 16
-
21417300005 Spring Nut 4.8Spring Nut 4.8
-
22420811820 Cylinder CowlCylinder Cowl
-
23420827817 Cup WasherCup Washer
-
24420960865 Rubber WasherRubber Washer
-
25420227935 WasherWasher
-
26420945752 Lock Washer 8 mmLock Washer 8 mm
-
27207181644 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
28420926180 Flat WasherFlat Washer
-
29417300006 Tapping Screw M4.8 x 16Tapping Screw M4.8 x 16
-
30420860945 ClampClamp
-
31420841555 Tapping Screw M5 x 20Tapping Screw M5 x 20
-
32509000218 Inlet Duct. Includes 32 - 34.Inlet Duct. Includes 32 - 34.
-
33509000152 FoamFoam
-
34389804300 Push NutPush Nut
-
35509000118 Inlet DuctInlet Duct
-
36250000068 Hex. Tapping Screw #8 x 5/8''Hex. Tapping Screw #8 x 5/8''
-
37241151640 Hex. Flanged Screw K50 x 16Hex. Flanged Screw K50 x 16
-
38391301600 WasherWasher
-
39509000164 SupportSupport
-
40732601210 Hex. Tapping Screw #8 x 3/8''Hex. Tapping Screw #8 x 3/8''
