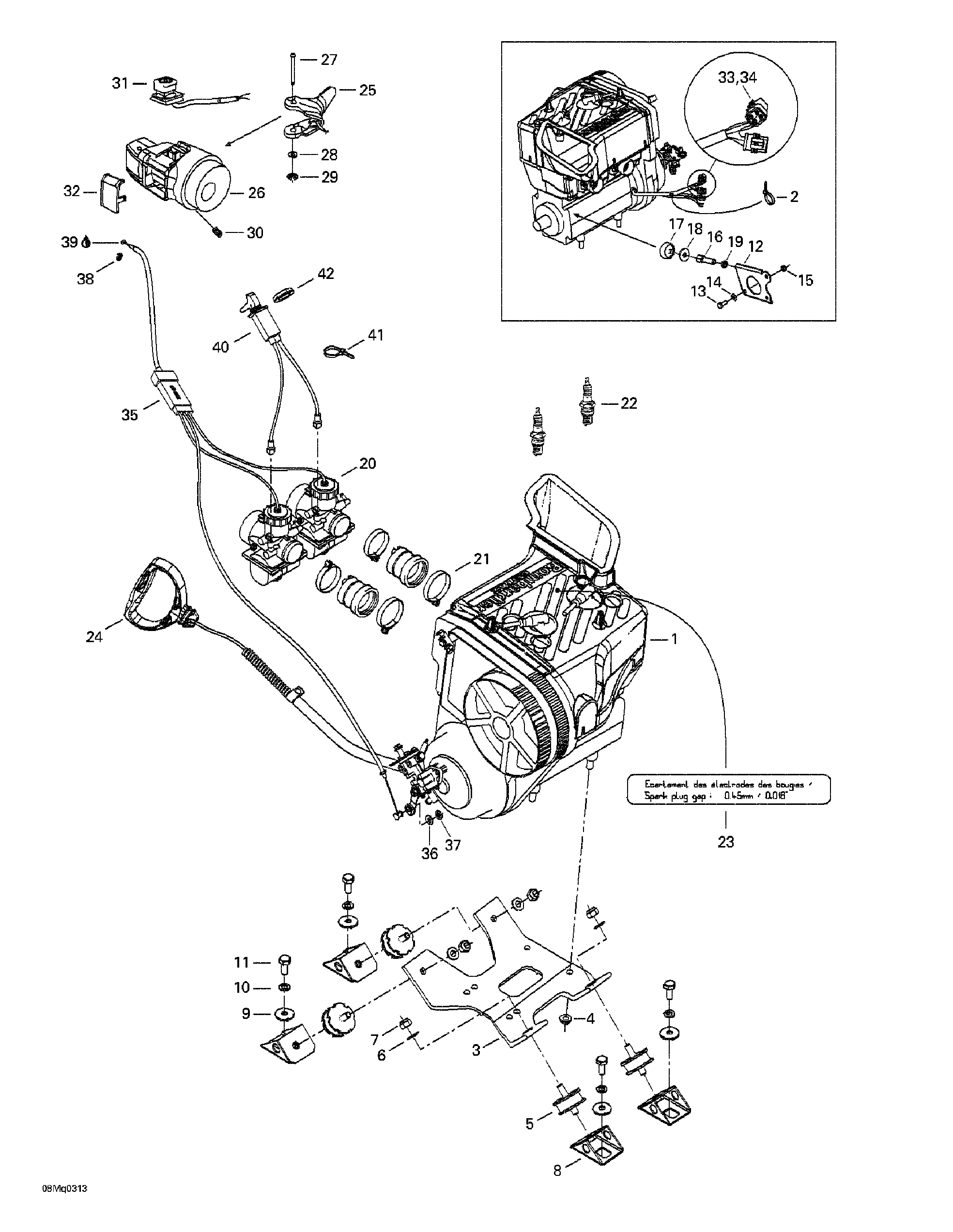

01- Engine And Engine Support для BRP Ski-Doo Summit 550 F - 2003
-
№АртикулНазвание
-
1400509734 > Engine> Engine
-
2293750001 Tie Rap 94 mmTie Rap 94 mm
-
3512059397 Engine SupportEngine Support
-
4233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
5570128700 Rubber MountRubber Mount
-
6234001410 Flat Washer 10 mmFlat Washer 10 mm
-
7233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
8512050900 Engine SupportEngine Support
-
9512056700 Lock WasherLock Washer
-
10234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
11207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
12512059446 Support PlateSupport Plate
-
13207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
14234081410 Flat Washer 8 mmFlat Washer 8 mm
-
15232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
16512058800 ScrewScrew
-
17512059056 StopperStopper
-
18512059057 WasherWasher
-
19732610019 Hex. Jam Nut M12Hex. Jam Nut M12
-
20403138726 Carburetor VM 34-590Carburetor VM 34-590
-
403138727 Carburetor VM 34-591 (Europe)Carburetor VM 34-591 (Europe)
-
21512059403 ClampClamp
-
22414961100 Spark Plug NGK BR9-ESSpark Plug NGK BR9-ES
-
23516000986 Spark Plug DecalSpark Plug Decal
-
24572084400 Starter GripStarter Grip
-
25512059623 Heat Throttle Handle (34 mm)Heat Throttle Handle (34 mm)
-
26512059489 Throttle Handle HousingThrottle Handle Housing
-
27414438700 Lever PinLever Pin
-
28414438900 WasherWasher
-
29414439000 CirclipCirclip
-
30414440800 Set Screw M8 x 10Set Screw M8 x 10
-
31515175410 Kill SwitchKill Switch
-
32572100901 Switch CoverSwitch Cover
-
33278001473 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
34278001474 Female Lock (4 Circuits)Female Lock (4 Circuits)
-
35512059625 Throttle CableThrottle Cable
-
36414753300 WasherWasher
-
37414753500 CirclipCirclip
-
38414274500 CirclipCirclip
-
39293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
40512059441 Choke CableChoke Cable
-
41293750009 Tie Rap 160 mmTie Rap 160 mm
-
42512059094 Plastic NutPlastic Nut
