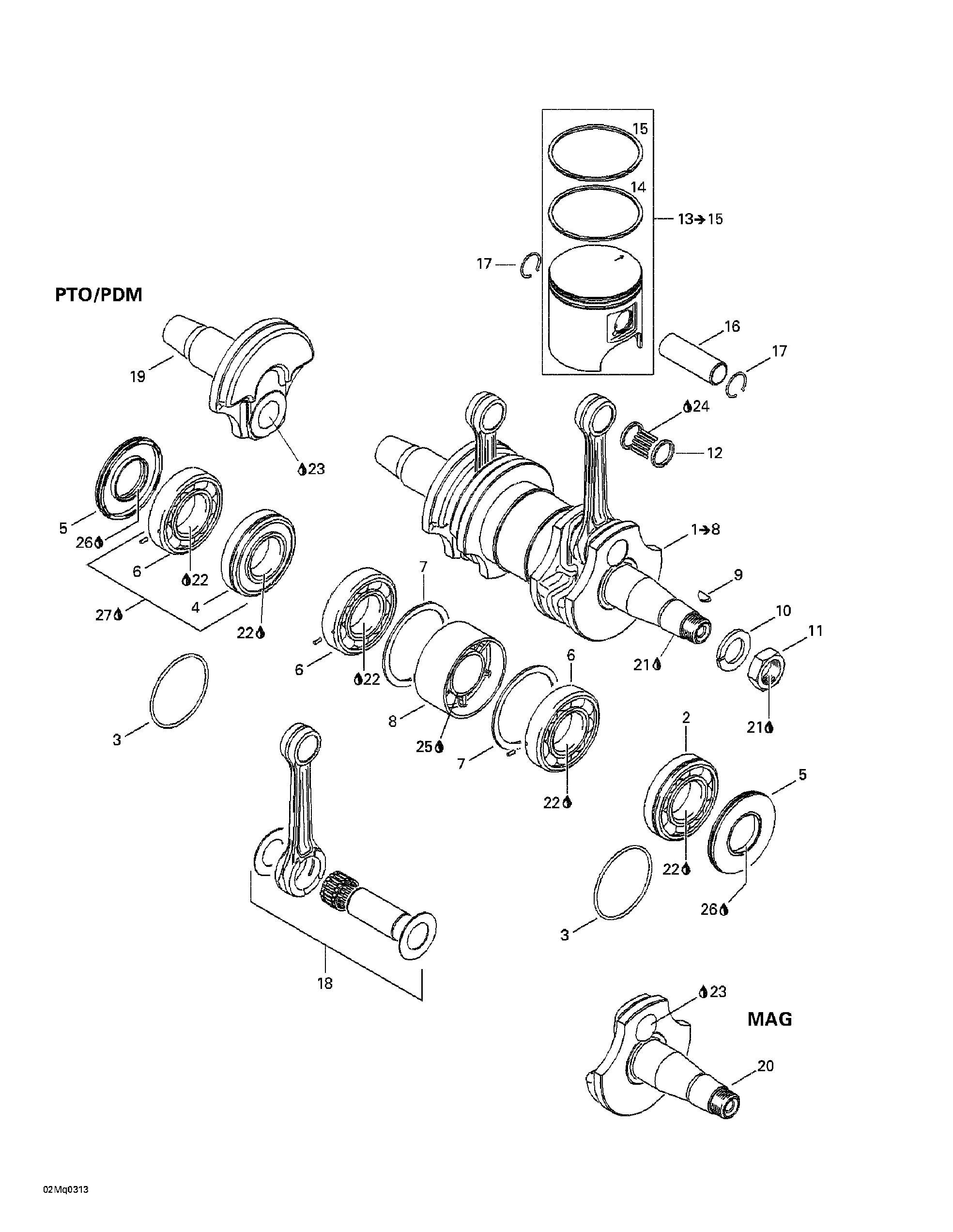

01- Crankshaft And Pistons для BRP Ski-Doo Summit 550 F - 2003
-
№АртикулНазвание
-
1420889060 Crankshaft Ass'y. Includes 1 - 8.Crankshaft Ass'y. Includes 1 - 8.
-
2420832571 Ball BearingBall Bearing
-
3293300022 O-RingO-Ring
-
4420832637 Ball BearingBall Bearing
-
5290831952 Oil SealOil Seal
-
6420832573 Ball BearingBall Bearing
-
7420927710 Retaining DiskRetaining Disk
-
8420850149 Labyrinth SleeveLabyrinth Sleeve
-
9420246055 Woodroff KeyWoodroff Key
-
10420945759 Lock WasherLock Washer
-
11420842230 Hex. Nut M22 x 1.5Hex. Nut M22 x 1.5
-
12420832420 Needle BearingNeedle Bearing
-
13420889050 Piston Ass'y 75.86 mm. Includes 13 - 15.Piston Ass'y 75.86 mm. Includes 13 - 15.
-
420889051 Piston Ass'y 76.11 mmPiston Ass'y 76.11 mm
-
420889052 Piston Ass'y 76.36 mmPiston Ass'y 76.36 mm
-
14420815300 Rectangular Ring 76 mmRectangular Ring 76 mm
-
420815301 Rectangular Ring 76.25 mmRectangular Ring 76.25 mm
-
420815302 Rectangular Ring 76.50 mmRectangular Ring 76.50 mm
-
15420815150 Semi-trapez Ring 76 mmSemi-trapez Ring 76 mm
-
420815151 Semi-trapez Ring 76.25 mmSemi-trapez Ring 76.25 mm
-
420815152 Semi-trapez Ring 76.50 mmSemi-trapez Ring 76.50 mm
-
16420916405 Piston PinPiston Pin
-
17420845106 Piston CirclipPiston Circlip
-
18420889064 Rod Repair KitRod Repair Kit
-
19420819180 Crankshaft PTO SideCrankshaft PTO Side
-
20420819210 Crankshaft MAG SideCrankshaft MAG Side
-
21293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
22293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
23413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
24413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
26420899271 Petamo Grease, GHY133N, 400 gPetamo Grease, GHY133N, 400 g
-
27293550021 Isoflex Grease, 50 gIsoflex Grease, 50 g
