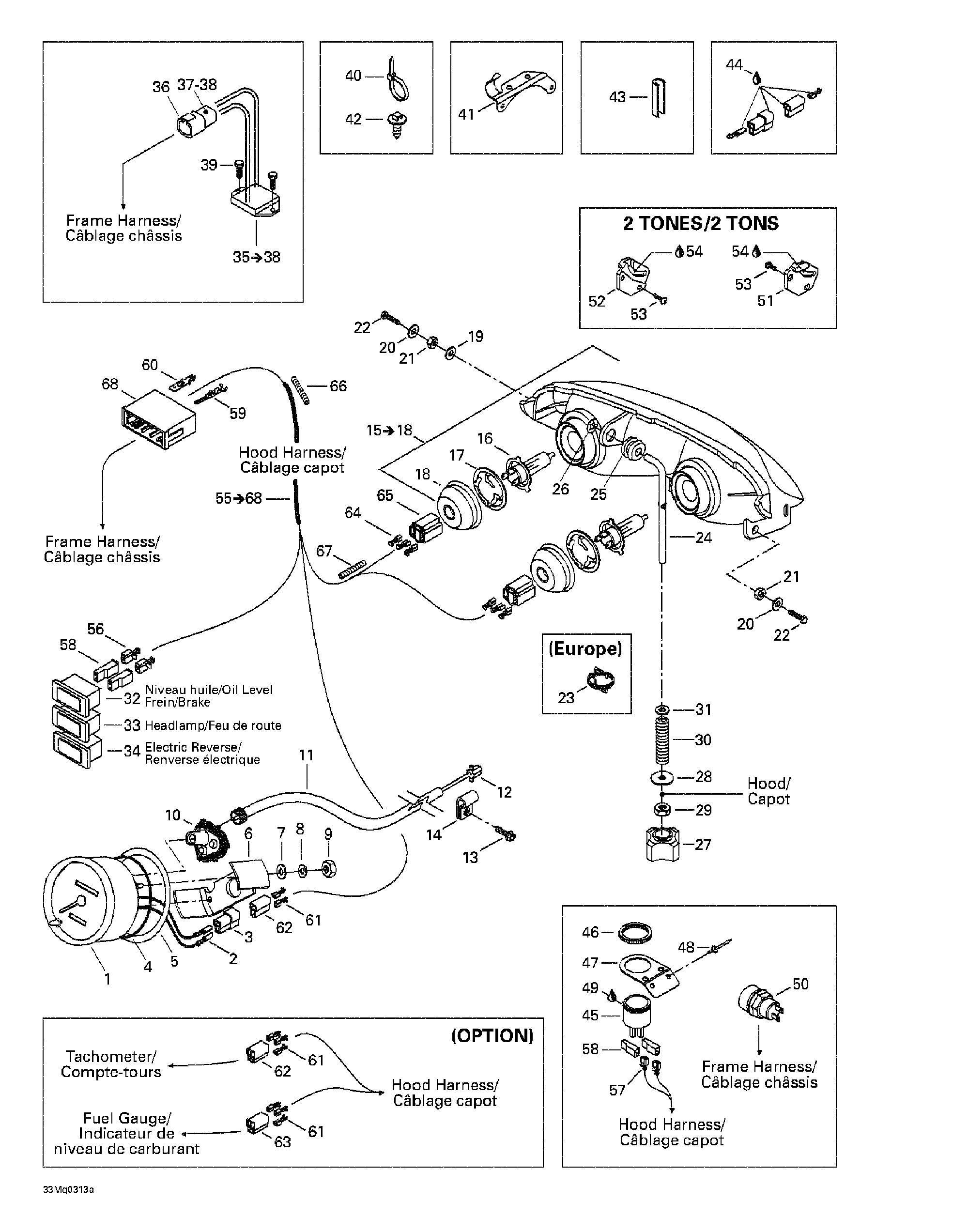

10- Hood Harness для BRP Ski-Doo Summit 550 F - 2003
-
№АртикулНазвание
-
1515175335 Speedometer (KMH)Speedometer (KMH)
-
515175336 Speedometer (MPH)Speedometer (MPH)
-
2409210000 Male TerminalMale Terminal
-
3409204500 Male Terminal Housing (2 circuits)Male Terminal Housing (2 circuits)
-
4414807100 O-RingO-Ring
-
5517258500 WasherWasher
-
6414806500 Case HolderCase Holder
-
7391301700 WasherWasher
-
8414806700 Lock WasherLock Washer
-
9414806900 NutNut
-
10515175400 Drive AngleDrive Angle
-
11415101500 Speedometer CableSpeedometer Cable
-
12572010100 Speedometer Drive InsertSpeedometer Drive Insert
-
14414176000 Clip (Cable)Clip (Cable)
-
15515175909 Halogen Headlamp. Includes 15 - 18.Halogen Headlamp. Includes 15 - 18.
-
16410504401 Halogen Bulb (60/55 W, 12 V)Halogen Bulb (60/55 W, 12 V)
-
17515175910 Bulb HolderBulb Holder
-
18515175911 Protector CapProtector Cap
-
19234001410 Flat Washer 10 mmFlat Washer 10 mm
-
20234051410 Flat Washer 5 mmFlat Washer 5 mm
-
21250100018 Nut M5Nut M5
-
22207053544 Hex. Screw M5 x 35Hex. Screw M5 x 35
-
23515175324 Spring (Europe)Spring (Europe)
-
24517295800 Adjuster RodAdjuster Rod
-
25415100800 GrommetGrommet
-
26732610072 Push NutPush Nut
-
27515175548 HandleHandle
-
28224060251 WasherWasher
-
29232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
30415100600 SpringSpring
-
31234061410 Flat Washer 6 mmFlat Washer 6 mm
-
32515175728 Pilot Lamp (Oil Level/Brake)Pilot Lamp (Oil Level/Brake)
-
33515175726 Pilot Lamp (Headlamp)Pilot Lamp (Headlamp)
-
34410113400 Pilot Lamp (Electric Reverse)Pilot Lamp (Electric Reverse)
-
35515175655 Voltage Regulator. Includes 35 - 38.Voltage Regulator. Includes 35 - 38.
-
36278001477 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
37515175568 Male TerminalMale Terminal
-
38278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
39210261680 Hex. Forming Screw M6 x 16Hex. Forming Screw M6 x 16
-
40293750001 Tie Rap 94 mmTie Rap 94 mm
-
293750009 Tie Rap 160 mmTie Rap 160 mm
-
414115200 Tie Rap 180 mmTie Rap 180 mm
-
41515175254 Cable SupportCable Support
-
42293730018 Dart MountDart Mount
-
43271000110 TrimTrim
-
44293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
45415060900 HornHorn
-
46414805101 Plastic NutPlastic Nut
-
47515175688 PlatePlate
-
48390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
49296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
50415101200 Reverse KnobReverse Knob
-
51517289300 R.H. Support (2 TONES)R.H. Support (2 TONES)
-
52517289400 L.H. Support (2 TONES)L.H. Support (2 TONES)
-
53732601315 Headlamp Screw (2 TONES)Headlamp Screw (2 TONES)
-
54413707500 Grease Tube LMZ, 400 g (2 TONES)Grease Tube LMZ, 400 g (2 TONES)
-
55515175847 Hood Harness. Includes 55 - 68.Hood Harness. Includes 55 - 68.
-
56409010100 Female TerminalFemale Terminal
-
57409010600 Female TerminalFemale Terminal
-
58409010400 Female Terminal Housing (1 circuits)Female Terminal Housing (1 circuits)
-
59515175232 Male TerminalMale Terminal
-
60515175273 Male TerminalMale Terminal
-
61561503100 Female TerminalFemale Terminal
-
62409204600 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
63409204300 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
64515175320 Female TerminalFemale Terminal
-
65409202700 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
66409901800 Tubing (13 mm)Tubing (13 mm)
-
67415079900 Tubing (10 mm)Tubing (10 mm)
-
68515175720 Male Terminal Housing (11 Circuits)Male Terminal Housing (11 Circuits)
