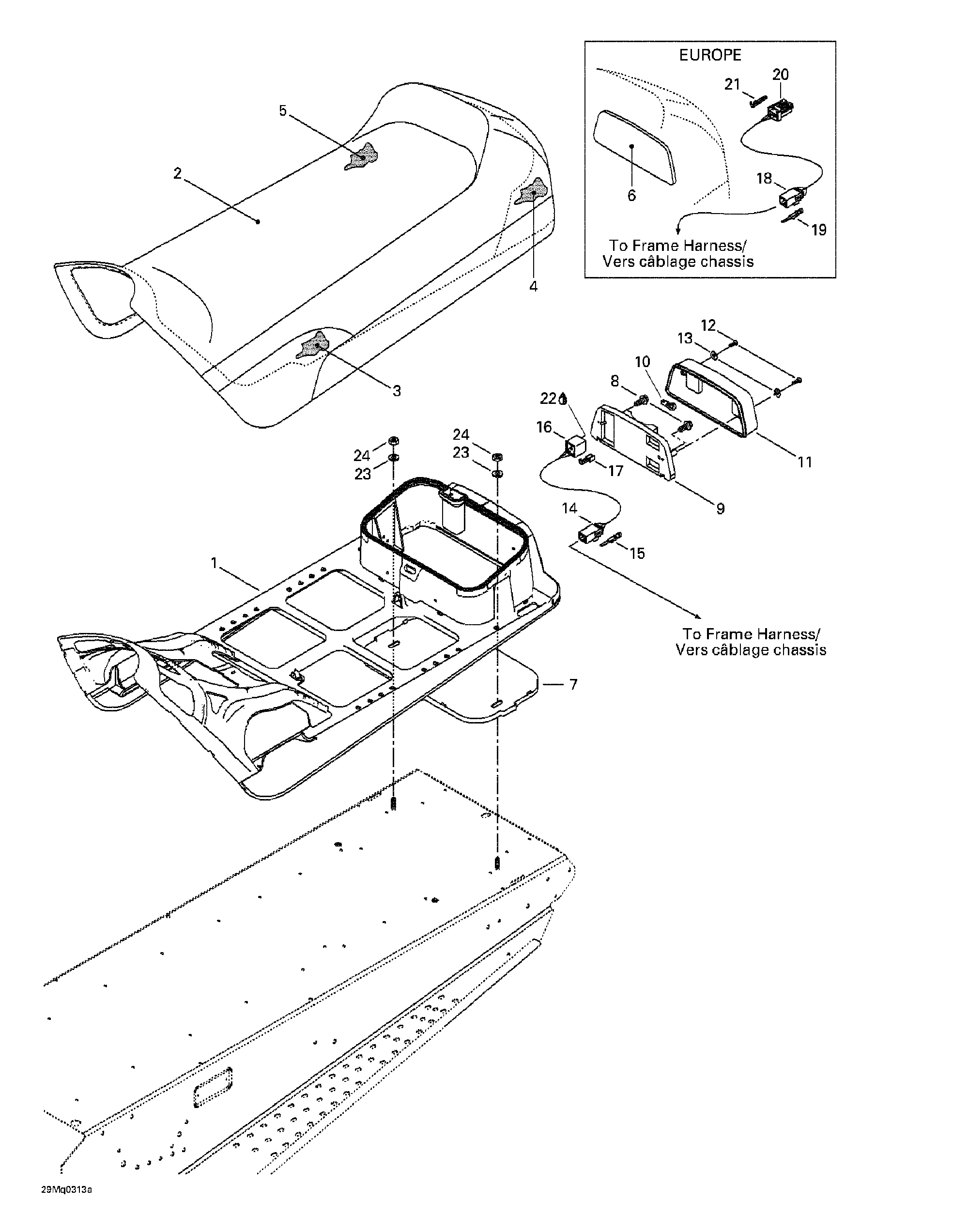

09- Seat для BRP Ski-Doo Summit 550 F - 2003
-
№АртикулНазвание
-
1510003983 Seat BaseSeat Base
-
2510004102 Seat CoverSeat Cover
-
510004128 Seat Cover (Europe)Seat Cover (Europe)
-
3510003944 Seat FoamSeat Foam
-
4510003945 Seat FoamSeat Foam
-
5510004032 Seat FoamSeat Foam
-
6510003989 Tail Lamp Bulb Foam (Europe)Tail Lamp Bulb Foam (Europe)
-
7572107601 Under ChestUnder Chest
-
8732603006 Hex. ScrewHex. Screw
-
9510004061 Light HousingLight Housing
-
10410504100 Tail Lamp BulbTail Lamp Bulb
-
11414513700 LensLens
-
12209632540 Phillips Tapping ScrewPhillips Tapping Screw
-
13414516400 WasherWasher
-
14515175494 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
15515175232 Male TerminalMale Terminal
-
16515175250 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
17561503100 Female TerminalFemale Terminal
-
18515175494 Male Terminal Housing (3 Circuits). (Europe)Male Terminal Housing (3 Circuits). (Europe)
-
19515175232 Male Terminal (Europe)Male Terminal (Europe)
-
20515175495 Female Terminal Housing (3 Circuits). (Europe)Female Terminal Housing (3 Circuits). (Europe)
-
21515175231 Female Terminal (Europe)Female Terminal (Europe)
-
22293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
23234082410 Flat Washer 8 mmFlat Washer 8 mm
-
24232581414 Elastic Stop Nut M8Elastic Stop Nut M8
