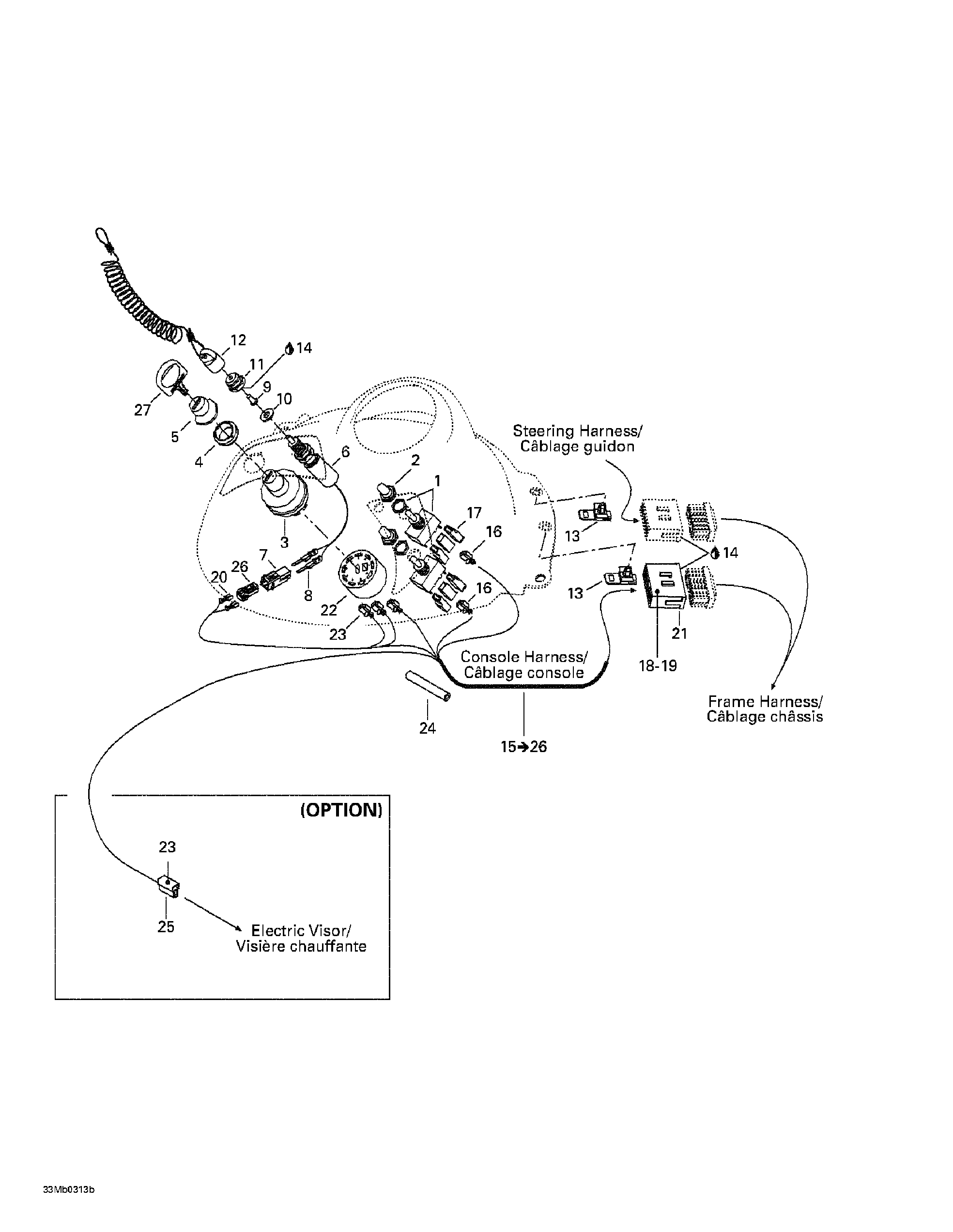

10- Console Harness для BRP Ski-Doo Summit 550 F - 2003
-
№АртикулНазвание
-
1410107300 Switch (Heating Grip)Switch (Heating Grip)
-
2515175281 Switch CoverSwitch Cover
-
3410113602 Ignition SwitchIgnition Switch
-
4410112100 Face NutFace Nut
-
5570013700 Switch BootSwitch Boot
-
6515175653 Brake SwitchBrake Switch
-
7515175654 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
8515175232 Male TerminalMale Terminal
-
9570151100 Plunger CapPlunger Cap
-
11515145900 Switch NutSwitch Nut
-
12515151500 Cap Ass'yCap Ass'y
-
13515175283 Housing SupportHousing Support
-
14293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
15515175623 Console Harness. Includes 15 - 26.Console Harness. Includes 15 - 26.
-
16409010100 Female TerminalFemale Terminal
-
17409010400 Female Terminal Housing (1 Circuits)Female Terminal Housing (1 Circuits)
-
18515175232 Male TerminalMale Terminal
-
19515175273 Male TerminalMale Terminal
-
20515175231 Female TerminalFemale Terminal
-
21515175351 Male Terminal Housing (15 Circuits)Male Terminal Housing (15 Circuits)
-
22572150700 Female Terminal Housing (9 Circuits)Female Terminal Housing (9 Circuits)
-
23561503100 Female TerminalFemale Terminal
-
24515175314 Low Temperature Tubing 5/8''Low Temperature Tubing 5/8''
-
25409204600 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
26515175658 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
27414991700 Blank KeyBlank Key
