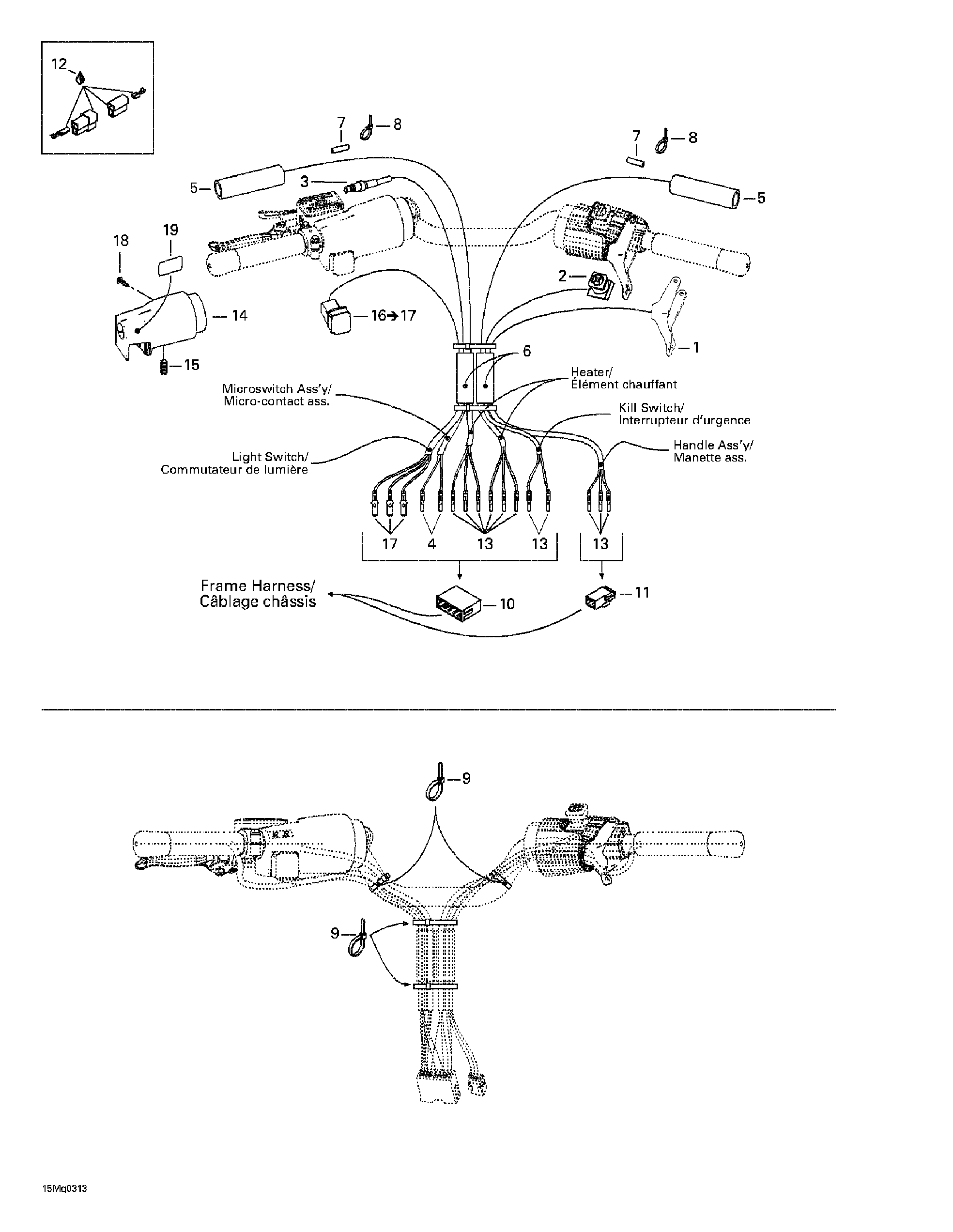

07- Steering System для BRP Ski-Doo Summit 550 F - 2003
-
№АртикулНазвание
-
1512059623 Heat Throttle Handle (34 mm)Heat Throttle Handle (34 mm)
-
2515175410 Kill SwitchKill Switch
-
3507032366 MicroswitchMicroswitch
-
4515175232 Male TerminalMale Terminal
-
5515175682 Heating ElementHeating Element
-
6515175314 Low Temperature Tubing 5/8''Low Temperature Tubing 5/8''
-
7515175332 Low Temperature Tubing 1/4''Low Temperature Tubing 1/4''
-
8293750001 Tie Rap 94 mmTie Rap 94 mm
-
9414115200 Tie Rap 180 mmTie Rap 180 mm
-
10515175352 Male Terminal Housing (13 Circuits)Male Terminal Housing (13 Circuits)
-
11515175494 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
12293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
13515175232 Male TerminalMale Terminal
-
14515175696 Brake HousingBrake Housing
-
15414440800 Set Screw M8 x 10Set Screw M8 x 10
-
16515175814 Light Switch. Includes 16 - 17.Light Switch. Includes 16 - 17.
-
17515175273 Male TerminalMale Terminal
-
18250000022 Phillips ScrewPhillips Screw
-
19415025500 Switch DecalSwitch Decal
