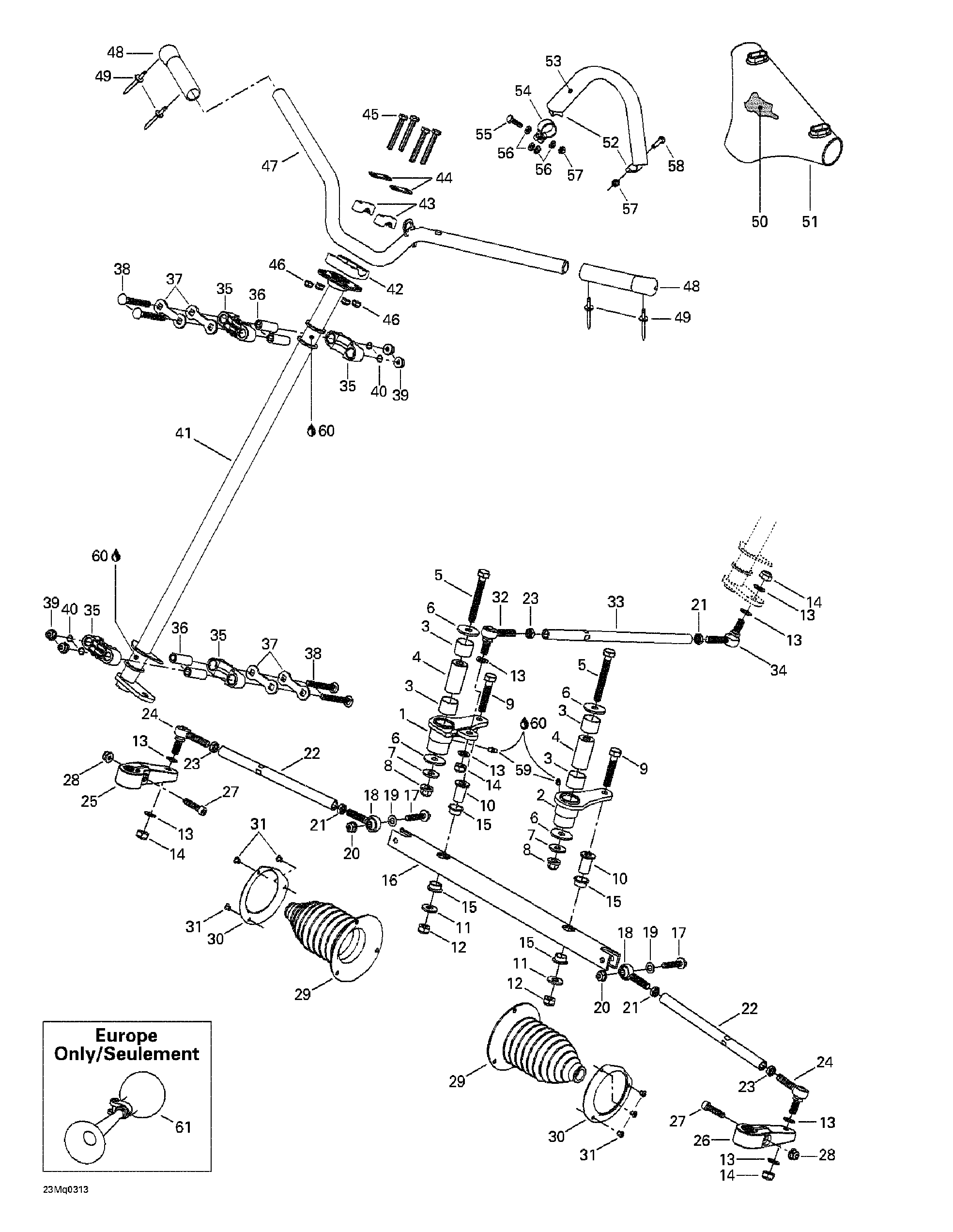

07- Steering System для BRP Ski-Doo Summit 550 F - 2003
-
№АртикулНазвание
-
1506151506 R.H. Swivel ArmR.H. Swivel Arm
-
2506151623 L.H. Swivel ArmL.H. Swivel Arm
-
3506149900 Bushing SwivelBushing Swivel
-
4506150100 Pivot SwivelPivot Swivel
-
5207008086 Hex. Screw M10 x 80Hex. Screw M10 x 80
-
6506150000 Washer 10 mmWasher 10 mm
-
7506151251 WasherWasher
-
8732610084 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
9207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
10506147300 Bar PivotBar Pivot
-
11224002251 Flat WasherFlat Washer
-
12233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
13503175800 WasherWasher
-
14232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
15506150200 Bushing SwivelBushing Swivel
-
16506147000 Swivel BarSwivel Bar
-
17207684044 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
18506151496 L.H. Ball JointL.H. Ball Joint
-
19506151252 WasherWasher
-
20233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
21250100016 L.H. Hex. Jam Nut M10L.H. Hex. Jam Nut M10
-
22506151376 Tie-RodTie-Rod
-
23732610010 R.H. Hex. Jam Nut M10R.H. Hex. Jam Nut M10
-
24506151491 Ball JointBall Joint
-
25506151451 R.H. Steering ArmR.H. Steering Arm
-
26506151452 L.H. Steering ArmL.H. Steering Arm
-
27205083544 Socket Head Screw M8 x 35Socket Head Screw M8 x 35
-
28233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
29570070500 Tie-Rod CapTie-Rod Cap
-
30506151100 Retainer RingRetainer Ring
-
31390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
32506151492 R.H. Ball JointR.H. Ball Joint
-
33506151375 Tie-Rod (Inside)Tie-Rod (Inside)
-
34506151495 L.H. Ball JointL.H. Ball Joint
-
35506150400 Half HousingHalf Housing
-
36506150500 Housing BushingHousing Bushing
-
37506150600 Stopper PlateStopper Plate
-
38207787044 Carriage Bolt M8 x 70Carriage Bolt M8 x 70
-
39233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
40506151140 O-RingO-Ring
-
41506151222 Main TubeMain Tube
-
42277000142 Steering ClampSteering Clamp
-
43506151622 Steering SupportSteering Support
-
44506151196 ReinforcementReinforcement
-
45207085544 Hex. Screw M8 x 55Hex. Screw M8 x 55
-
46232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
47506151391 HandlebarHandlebar
-
48M5340464 Handle GripHandle Grip
-
49293150102 Pop Rivet 3/16''Pop Rivet 3/16''
-
50506151264 FoamFoam
-
51506151265 CoverCover
-
52415095500 Tie DownTie Down
-
53415090200 GripGrip
-
54506148200 Support PlateSupport Plate
-
55207162544 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
56234061410 Flat Washer 6 mmFlat Washer 6 mm
-
57232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
58207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
59408200700 Grease FittingGrease Fitting
-
60219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
61415040700 Horn (Europe)Horn (Europe)
