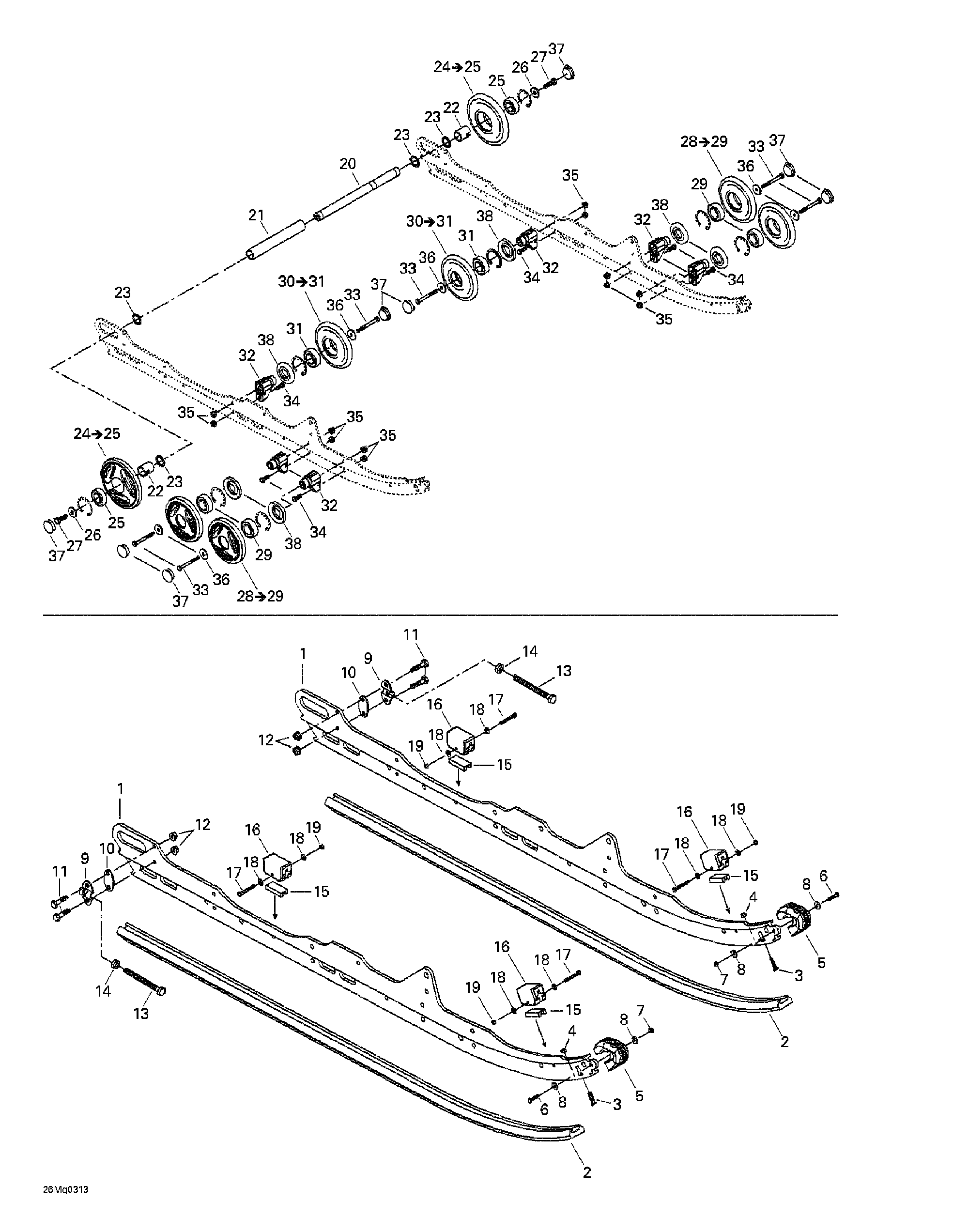

08- Rear Suspension для BRP Ski-Doo Summit 550 F - 2003
-
№АртикулНазвание
-
1503189582 Runner (136'')Runner (136'')
-
2503189639 Runner Shoe (136'')Runner Shoe (136'')
-
3208562560 Screw M6 x 25Screw M6 x 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207152544 Hex. Screw M5 x 25Hex. Screw M5 x 25
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8391301600 WasherWasher
-
9503155300 TensionerTensioner
-
10503189160 Tensioner SpacerTensioner Spacer
-
11207063044 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
12233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
13230100044 Hex. Screw M10 x 100Hex. Screw M10 x 100
-
14233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
15572084800 Stopper ReinforcementStopper Reinforcement
-
16570063000 Rubber StopperRubber Stopper
-
17207054044 Hex. Screw M5 x 40Hex. Screw M5 x 40
-
18391301700 WasherWasher
-
19232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
20503162400 Rear AxleRear Axle
-
21503188941 SpacerSpacer
-
22503189809 Outer SpacerOuter Spacer
-
23503180400 WasherWasher
-
24503189566 Wheel 165 Ass'y (Yellow). Includes 24 - 25.Wheel 165 Ass'y (Yellow). Includes 24 - 25.
-
25405404500 Ball Bearing 6205Ball Bearing 6205
-
26503183300 WasherWasher
-
27250000019 Hex. Screw with NylonHex. Screw with Nylon
-
28503190212 Wheel 139 Ass'y. Includes 28 - 29.Wheel 139 Ass'y. Includes 28 - 29.
-
29405404500 Ball Bearing 6205Ball Bearing 6205
-
30503190213 Wheel 139 Ass'y. Includes 30 - 31.Wheel 139 Ass'y. Includes 30 - 31.
-
31405404500 Ball Bearing 6205Ball Bearing 6205
-
32503189679 SupportSupport
-
33207088044 Hex. Screw M8 x 80Hex. Screw M8 x 80
-
34207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
35233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
36503183100 WasherWasher
-
37570063600 Wheel CapWheel Cap
-
38572089000 Labyrinth SealLabyrinth Seal
