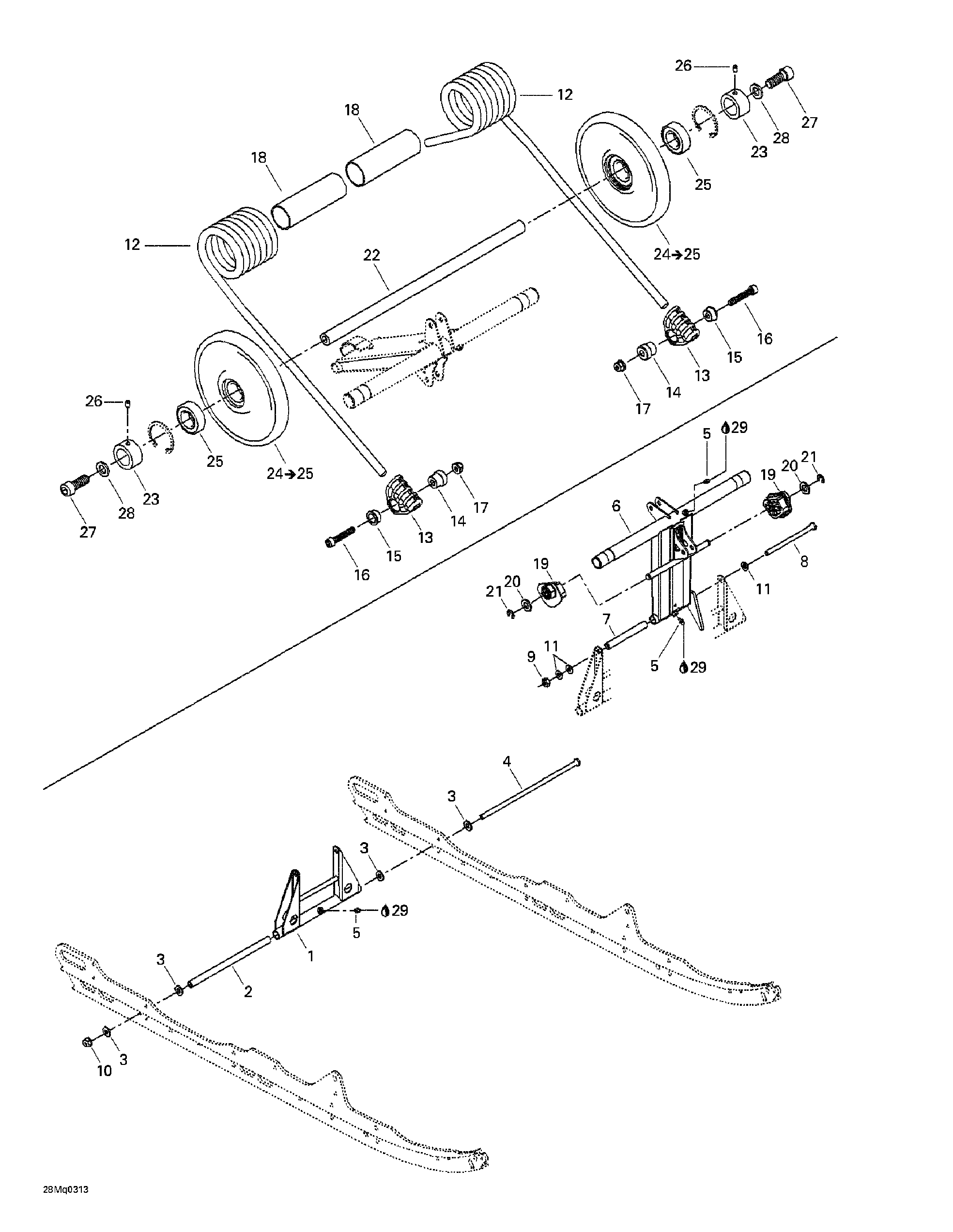

08- Rear Arm для BRP Ski-Doo Summit 550 F - 2003
-
№АртикулНазвание
-
1503189793 Pivot ArmPivot Arm
-
2503189156 Lower Axle (Pivot Arm)Lower Axle (Pivot Arm)
-
3503189157 WasherWasher
-
4732601198 Bolt M8 (Long)Bolt M8 (Long)
-
5408200700 Grease Fitting M6Grease Fitting M6
-
6503190275 Rear ArmRear Arm
-
7503144300 Upper Axle (Pivot Arm)Upper Axle (Pivot Arm)
-
8732601197 Bolt M8 (Short)Bolt M8 (Short)
-
9232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
10233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
11234081410 Flat Washer 8 mmFlat Washer 8 mm
-
12503189902 R.H. SpringR.H. Spring
-
503189904 L.H. SpringL.H. Spring
-
13503189657 Spring SupportSpring Support
-
14503188934 Spring Axle GuideSpring Axle Guide
-
15503188929 Retainer CushionRetainer Cushion
-
16205084544 Socket Head Screw M8 x 45Socket Head Screw M8 x 45
-
17233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
18572086000 BushingBushing
-
19503190023 L.H. Cam AdjusterL.H. Cam Adjuster
-
503190022 R.H. Cam AdjusterR.H. Cam Adjuster
-
20234021410 Flat Washer 12 mmFlat Washer 12 mm
-
21293370013 E-CirclipE-Circlip
-
22503189711 Rear Cross ShaftRear Cross Shaft
-
23503168800 Retaining RingRetaining Ring
-
24503190269 Wheel 165 Ass'y. Includes 24 - 25.Wheel 165 Ass'y. Includes 24 - 25.
-
25405404500 Ball Bearing 6205Ball Bearing 6205
-
26206260844 Socket Set Screw M6 x 8Socket Set Screw M6 x 8
-
27205523544 Socket Head Screw M12 x 35 (Scotch Grip)Socket Head Screw M12 x 35 (Scotch Grip)
-
28503189276 WasherWasher
-
29219700417 Synthetic Grease, 400gSynthetic Grease, 400g
