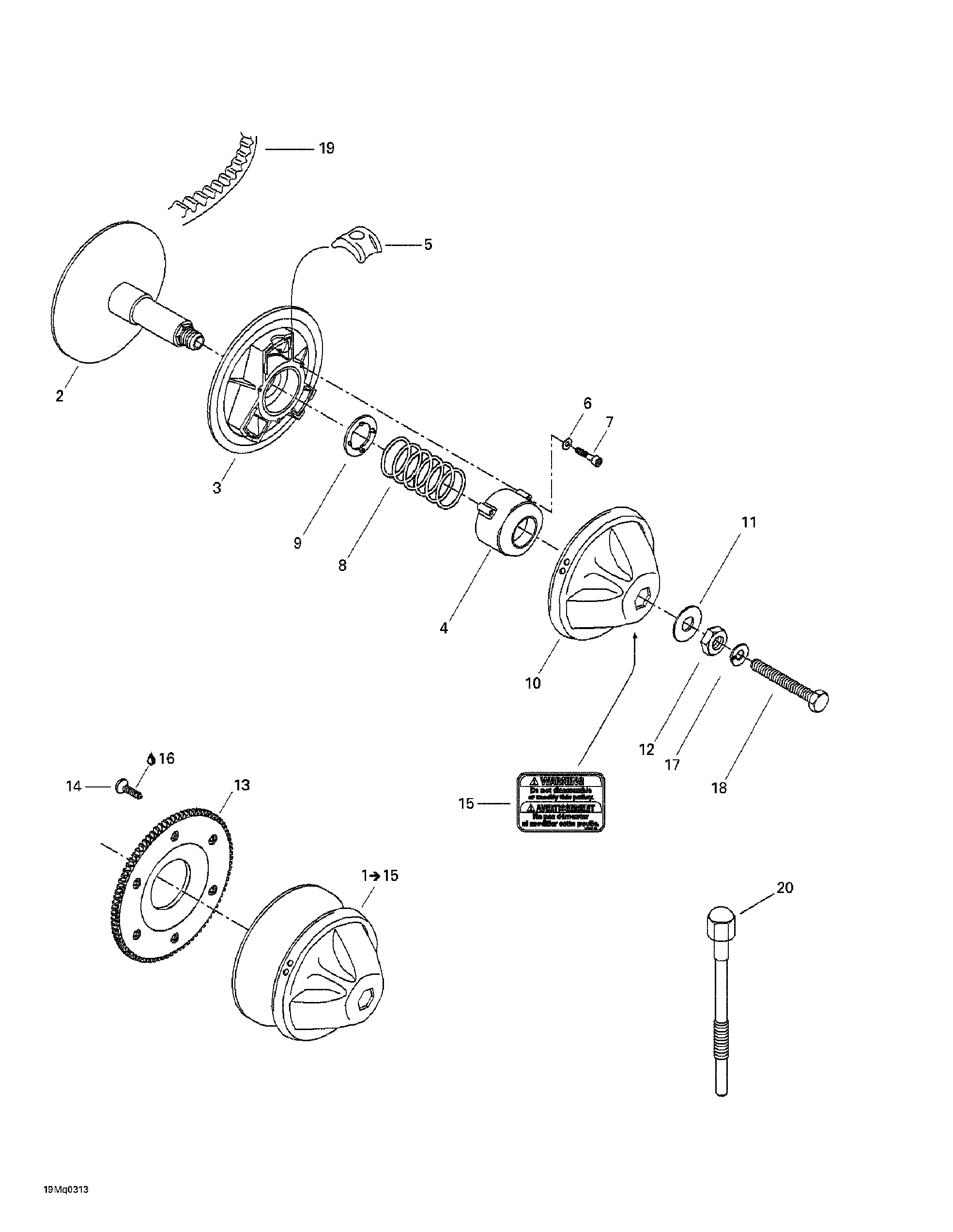

05- Drive Pulley для BRP Ski-Doo Summit 550 F - 2003
-
№АртикулНазвание
-
1417222499 Drive Pulley Ass'y. Includes 1 - 15.Drive Pulley Ass'y. Includes 1 - 15.
-
2415128601 Inner FlangeInner Flange
-
3417126692 Sliding FlangeSliding Flange
-
4415128602 Spring CoverSpring Cover
-
5415128605 Centrifugal BlockCentrifugal Block
-
415128604 Centrifugal Block (Europe)Centrifugal Block (Europe)
-
6420245370 WasherWasher
-
7415128606 Socket Head Screw M6 x 35Socket Head Screw M6 x 35
-
8415128607 Spring (Violet/Yellow)Spring (Violet/Yellow)
-
415128608 Spring (Violet/Yellow) (Europe)Spring (Violet/Yellow) (Europe)
-
9417126694 Seat SpringSeat Spring
-
10415128609 CapCap
-
11415128610 WasherWasher
-
12417118300 NutNut
-
13417300186 Ring Gear (86 Teeth)Ring Gear (86 Teeth)
-
14236281684 Tork Screw M8 x 16Tork Screw M8 x 16
-
15516001726 Security Label (Disassembling)Security Label (Disassembling)
-
16293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
17392002800 Lock Spring WasherLock Spring Washer
-
18417113800 BoltBolt
-
19415060600 Drive BeltDrive Belt
-
20529022400 Puller Inner HalfPuller Inner Half
