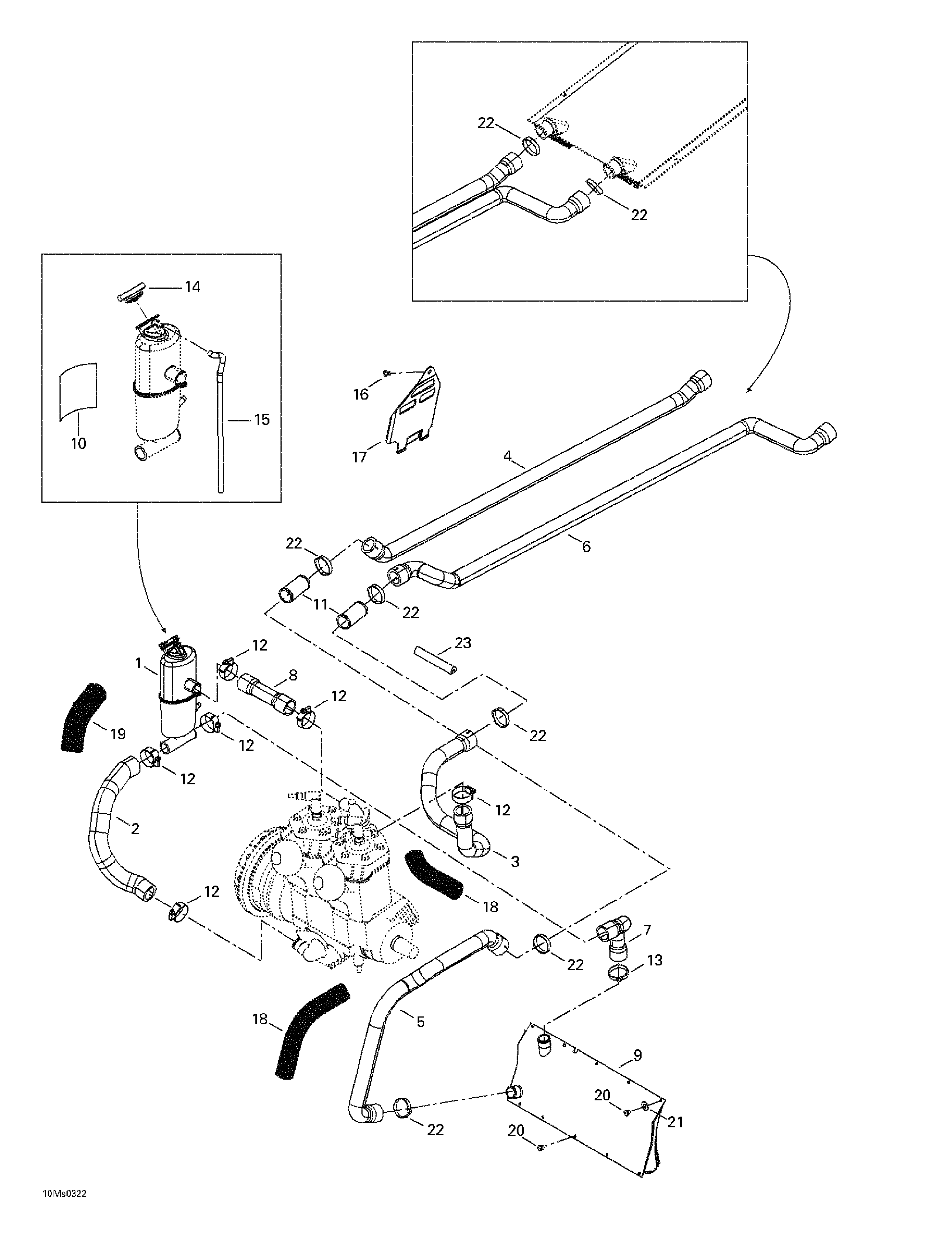

01- Cooling System для BRP Ski-Doo Summit X 800 HO - 2003
-
№АртикулНазвание
-
1509000157 Coolant tankCoolant tank
-
2509000135 Engine inlet hoseEngine inlet hose
-
3509000215 Engine outlet hoseEngine outlet hose
-
4509000240 Rear radiator intake hoseRear radiator intake hose
-
5509000216 Front radiator intake hoseFront radiator intake hose
-
6509000241 Rear engine outlet hoseRear engine outlet hose
-
7509000184 Radiator outlet hoseRadiator outlet hose
-
8509000161 HoseHose
-
9518323387 Front radiatorFront radiator
-
10509000190 Reflective sheetReflective sheet
-
11509000224 FittingFitting
-
12408800400 Tridon clampTridon clamp
-
13509000181 Oetiker clampOetiker clamp
-
14509000187 Pressure capPressure cap
-
15415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
16241151640 Hex flanged screw K50 x 16Hex flanged screw K50 x 16
-
17509000257 DeflectorDeflector
-
18409902200 Tubing 25 mmTubing 25 mm
-
19415084700 Protection ShieldProtection Shield
-
20390402200 Pop rivet 3/16''Pop rivet 3/16''
-
21517225900 Flat washerFlat washer
-
22509000045 Oetiker clampOetiker clamp
-
23509000263 TrimTrim
