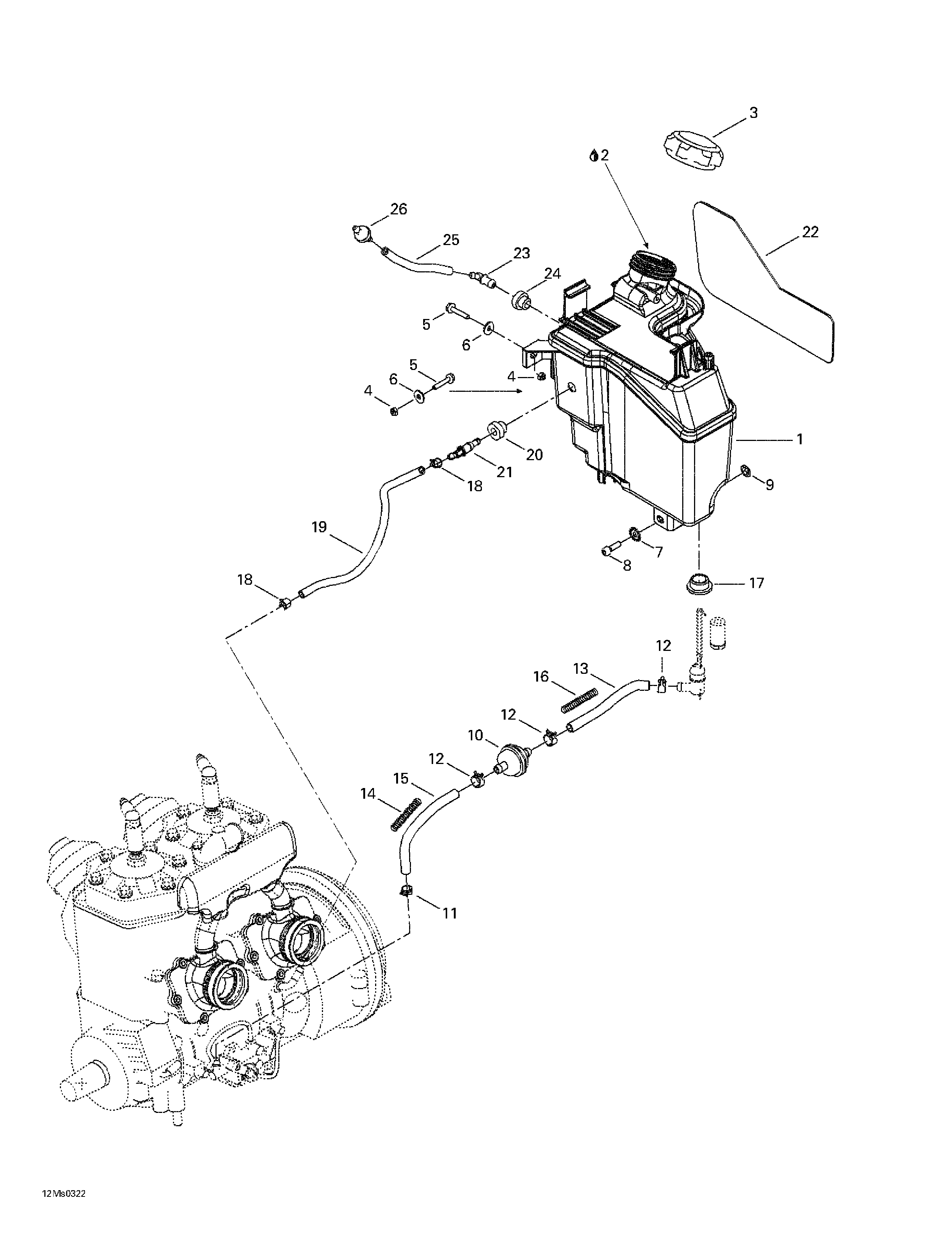

02- Oil Tank для BRP Ski-Doo Summit X 800 HO - 2003
-
№АртикулНазвание
-
1519000067 Oil tankOil tank
-
2413803100 Blizzard oil (12 x 500 ml)Blizzard oil (12 x 500 ml)
-
413802900 Injection oil (12 x 1 Liter)Injection oil (12 x 1 Liter)
-
413803000 Injection oil (3 x 4 Liter)Injection oil (3 x 4 Liter)
-
413803200 Injection oil (205 Liter)Injection oil (205 Liter)
-
413711000 Synthetic injection oil (3 x 4 Liter)Synthetic injection oil (3 x 4 Liter)
-
413710700 Synthetic injection oil (205 Liter)Synthetic injection oil (205 Liter)
-
293600045 Synthetic injection oil (12 x 1 Liter). Formula XP-S-IISynthetic injection oil (12 x 1 Liter). Formula XP-S-II
-
3519000033 CapCap
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5207663044 Hex. flanged screw M6 x 30Hex. flanged screw M6 x 30
-
6391302000 Flat washerFlat washer
-
7250200000 Serrated lock washer M6Serrated lock washer M6
-
8205062044 Socket head screw M6 x 20Socket head screw M6 x 20
-
9732610072 Push nutPush nut
-
10414536500 FilterFilter
-
11414420700 Spring clampSpring clamp
-
12414415200 Spring clampSpring clamp
-
13415080700 HoseHose
-
14519000064 SpringSpring
-
15415080700 HoseHose
-
16519000065 SpringSpring
-
17570023000 Insulated ringInsulated ring
-
18414554800 Spring clampSpring clamp
-
19415080200 HoseHose
-
20570135100 GrommetGrommet
-
21414580700 Elbow Male ConnectorElbow Male Connector
-
22519000054 Reflective sheetReflective sheet
-
23414580700 Elbow Male ConnectorElbow Male Connector
-
24513032908 GrommetGrommet
-
25415080200 HoseHose
-
26275500398 Check valveCheck valve
