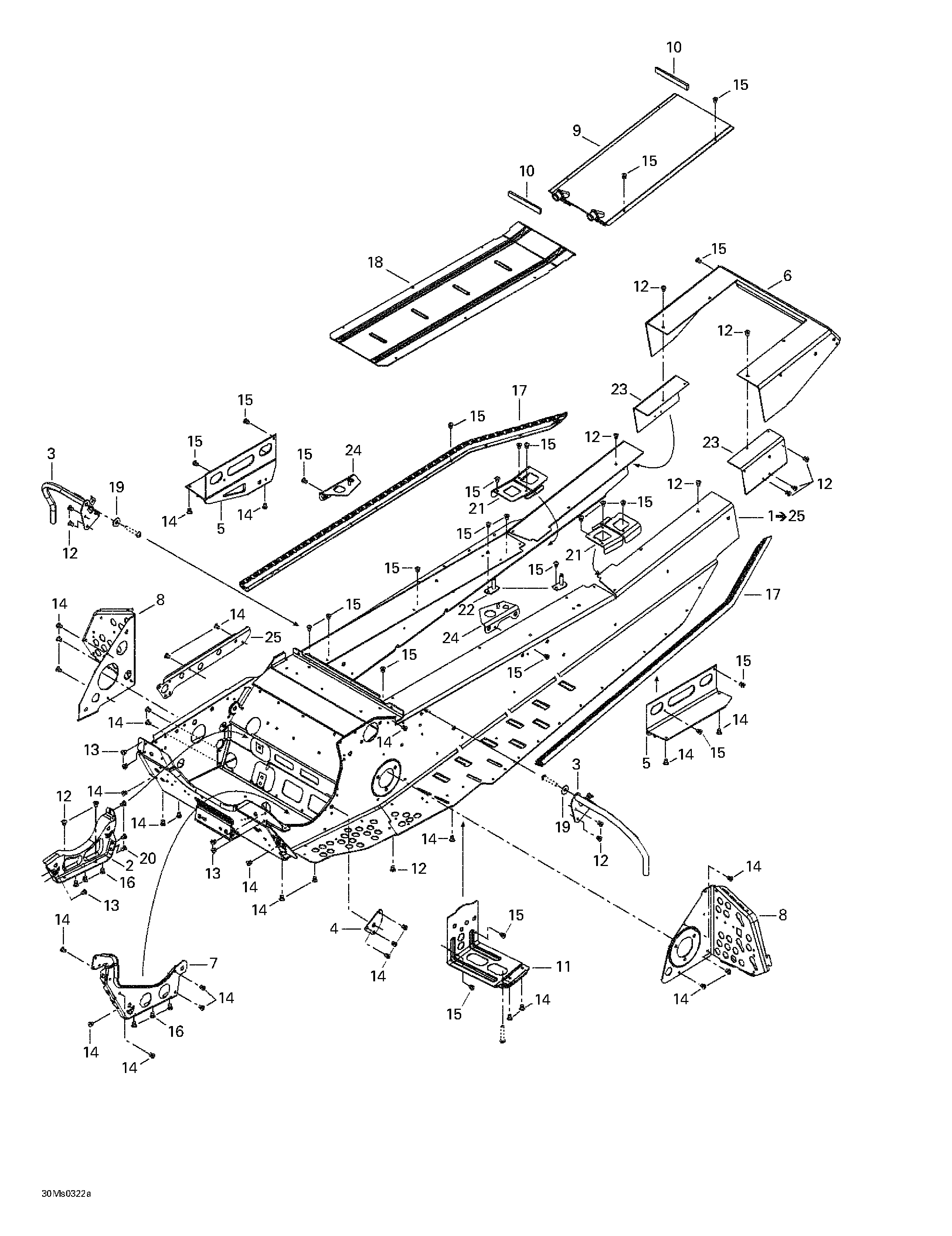

09- Frame для BRP Ski-Doo Summit X 800 HO - 2003
-
№АртикулНазвание
-
1415128561 Frame. Includes 1 - 25.Frame. Includes 1 - 25.
-
2518323346 Engine supportEngine support
-
3518322180 R.h. toe hold supportR.h. toe hold support
-
518322181 L.h. toe hold supportL.h. toe hold support
-
4518323507 Outer reinforcementOuter reinforcement
-
5518323607 R.h. slide bracketR.h. slide bracket
-
518323610 L.h. slide bracketL.h. slide bracket
-
6518323520 Rear capRear cap
-
7518323241 Inner reinforcementInner reinforcement
-
8518323369 R.h. footrest reinforcementR.h. footrest reinforcement
-
518323370 L.h. footrest reinforcementL.h. footrest reinforcement
-
9518323521 Rear radiatorRear radiator
-
10293200003 GasketGasket
-
11518323525 R.h. footrestR.h. footrest
-
518323527 L.h. footrestL.h. footrest
-
12390909200 Rivet avexRivet avex
-
13390909100 Rivet avexRivet avex
-
14390402200 Pop rivet 3/16''Pop rivet 3/16''
-
15390402400 Pop rivet 3/16''Pop rivet 3/16''
-
16390910300 Henrob rivetHenrob rivet
-
17518323529 R.h. rollerR.h. roller
-
518323530 L.h. rollerL.h. roller
-
18518323531 Center plateCenter plate
-
19234082410 Flat washer M8Flat washer M8
-
20293150096 Hemlock rivet 1/4''Hemlock rivet 1/4''
-
21518322959 R.h. frame reinforcementR.h. frame reinforcement
-
518322960 L.h. frame reinforcementL.h. frame reinforcement
-
22518322791 Tank bracketTank bracket
-
23518323598 R.h. frame forming reinforcementR.h. frame forming reinforcement
-
518323599 L.h. frame forming reinforcementL.h. frame forming reinforcement
-
24518323336 R.h. frame reinforcementR.h. frame reinforcement
-
518323337 L.h. frame reinforcementL.h. frame reinforcement
-
25518323328 R.h. frame stiffenerR.h. frame stiffener
