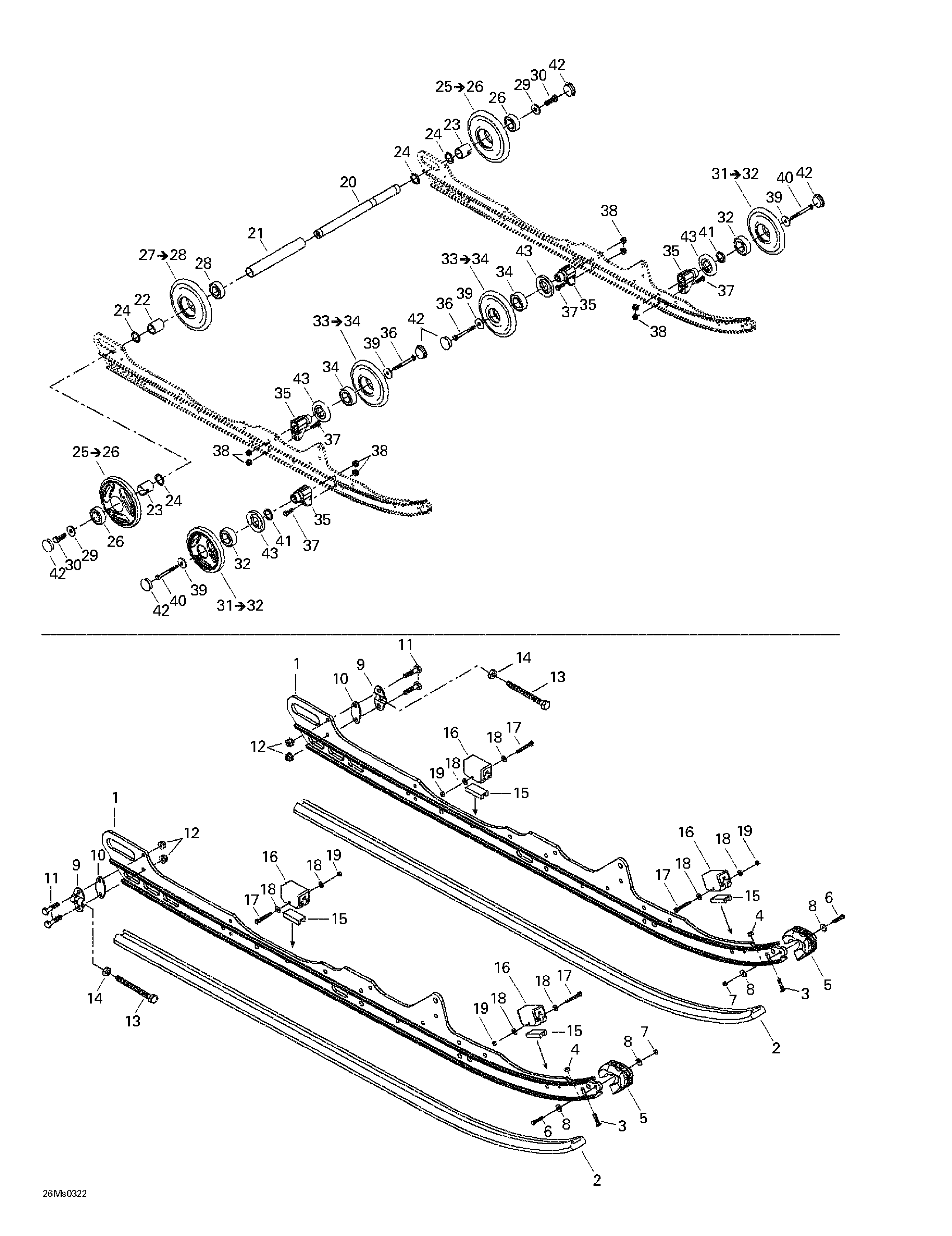

08- Rear Suspension для BRP Ski-Doo Summit X 800 HO - 2003
-
№АртикулНазвание
-
1503190278 Runner (144'')Runner (144'')
-
2503190407 RailRail
-
3208562560 Screw M6 x 25Screw M6 x 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner protectorRunner protector
-
6207152544 Hex screw M5 x 25Hex screw M5 x 25
-
7232551414 Hex elastic nut M5Hex elastic nut M5
-
8391301600 WasherWasher
-
9503155300 TensionerTensioner
-
10503189160 Tensioner spacerTensioner spacer
-
11207063044 Hex screw M6 x 30Hex screw M6 x 30
-
12233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
13230100044 Hex screw M10 x 100Hex screw M10 x 100
-
14233601416 Elastic locking nut M10Elastic locking nut M10
-
15572084800 Stopper reinforcementStopper reinforcement
-
16570063000 Rubber stopperRubber stopper
-
17207054044 Hex screw M5 x 40Hex screw M5 x 40
-
18391301700 WasherWasher
-
19232551414 Hex elastic nut M5Hex elastic nut M5
-
20503160700 Rear axleRear axle
-
21503183000 Long spacerLong spacer
-
22503182900 Short spacerShort spacer
-
23503189809 Outer spacerOuter spacer
-
24503180400 WasherWasher
-
25503190231 Wheel 180 (yellow). Includes 25 - 26.Wheel 180 (yellow). Includes 25 - 26.
-
26503189567 Ball bearing 6205Ball bearing 6205
-
27503190232 Wheel 180. Includes 27 - 28.Wheel 180. Includes 27 - 28.
-
28503189567 Ball bearing 6205Ball bearing 6205
-
29503183300 WasherWasher
-
30250000019 Hex screw with nylonHex screw with nylon
-
31503190212 Wheel 139 (yellow). Includes 31 - 32.Wheel 139 (yellow). Includes 31 - 32.
-
32503189567 Ball bearing 6205Ball bearing 6205
-
33503190213 Wheel 139. Includes 33 - 34.Wheel 139. Includes 33 - 34.
-
34503189567 Ball bearing 6205Ball bearing 6205
-
35503189679 SupportSupport
-
36207088044 Hex screw M8 x 80Hex screw M8 x 80
-
37207182544 Hex screw M8 x 25Hex screw M8 x 25
-
38233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
39503183100 WasherWasher
-
40207088544 Hex screw M8 x 85Hex screw M8 x 85
-
41503173700 WasherWasher
-
42570063600 Wheel capWheel cap
-
43572089000 Labyrinth sealLabyrinth seal
