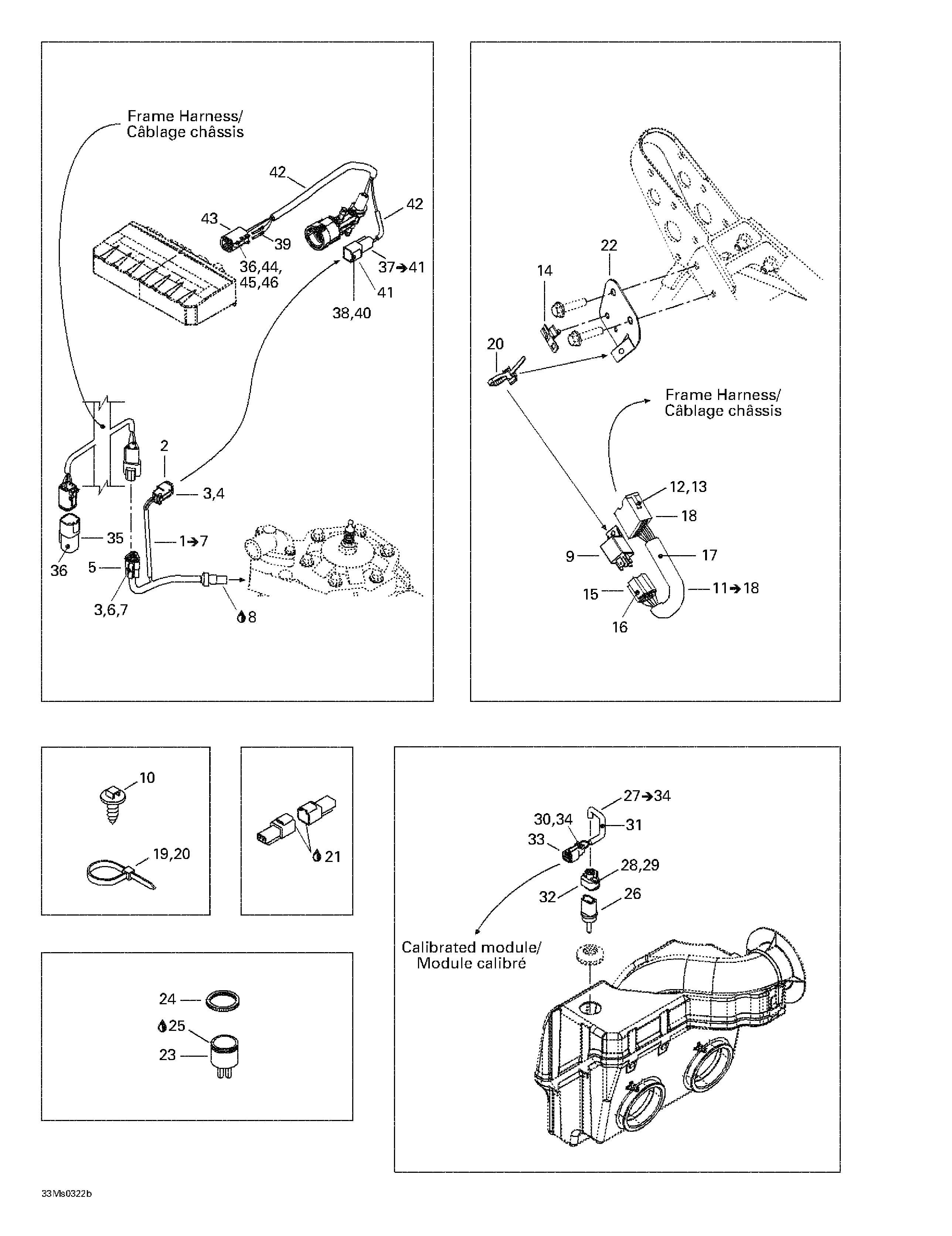

10- Electrical System 2 для BRP Ski-Doo Summit X 800 HO - 2003
-
№АртикулНазвание
-
1515175930 Temperature sensor. Includes 1 - 7.Temperature sensor. Includes 1 - 7.
-
2515175670 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
3278000632 Female terminalFemale terminal
-
4515175675 Female lock (2 circuits)Female lock (2 circuits)
-
5515175671 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
-
6515175676 Female lock (3 circuits)Female lock (3 circuits)
-
7293000052 PlugPlug
-
8293800018 Loctite 592, pipe sealant, 50 mlLoctite 592, pipe sealant, 50 ml
-
9410113200 RelayRelay
-
10293730018 Mount dartMount dart
-
11515175722 Configuration harness. Includes 11 - 18.Configuration harness. Includes 11 - 18.
-
12515175232 Male terminalMale terminal
-
13515175273 Male terminalMale terminal
-
14515175283 Housing supportHousing support
-
15409209900 Female terminal housing (5 circuits)Female terminal housing (5 circuits)
-
16561503100 Female terminalFemale terminal
-
17409901800 TubingTubing
-
18515175720 Male terminal housing (11 circuits)Male terminal housing (11 circuits)
-
19414115200 Tie-rap 180 mmTie-rap 180 mm
-
293750008 Tie-rap 350 mmTie-rap 350 mm
-
20293750009 Tie-rap 160 mmTie-rap 160 mm
-
21293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
22515175918 Harness supportHarness support
-
23515175931 Horn (RER)Horn (RER)
-
24414805101 Plastic nut (RER)Plastic nut (RER)
-
25296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
26270600000 Air sensorAir sensor
-
27515175703 Temperature harness. Includes 27 - 34.Temperature harness. Includes 27 - 34.
-
28278000998 Female terminalFemale terminal
-
29278000999 SealSeal
-
30278000632 Female terminalFemale terminal
-
31515175332 TubingTubing
-
32515175588 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
33515175670 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
34515175706 Female lock (2 Circuits)Female lock (2 Circuits)
-
35515175668 Female terminal housing (5 circuits)Female terminal housing (5 circuits)
-
36293000052 Sealing cap (DPM)Sealing cap (DPM)
-
37515175822 Sensor harness. Includes 37 - 41.Sensor harness. Includes 37 - 41.
-
38278000631 Male terminalMale terminal
-
39278000632 Femelle terminalFemelle terminal
-
40409207500 Male Lock (2 circuits)Male Lock (2 circuits)
-
41515175665 Male terminal housing (2 circuits)Male terminal housing (2 circuits)
-
42409901300 Low temperature tubingLow temperature tubing
-
43515175673 Male terminal housing (6 circuits)Male terminal housing (6 circuits)
-
44515175678 Male Lock (6 circuits)Male Lock (6 circuits)
-
45278000632 Female terminalFemale terminal
-
46278001276 Female terminalFemale terminal
