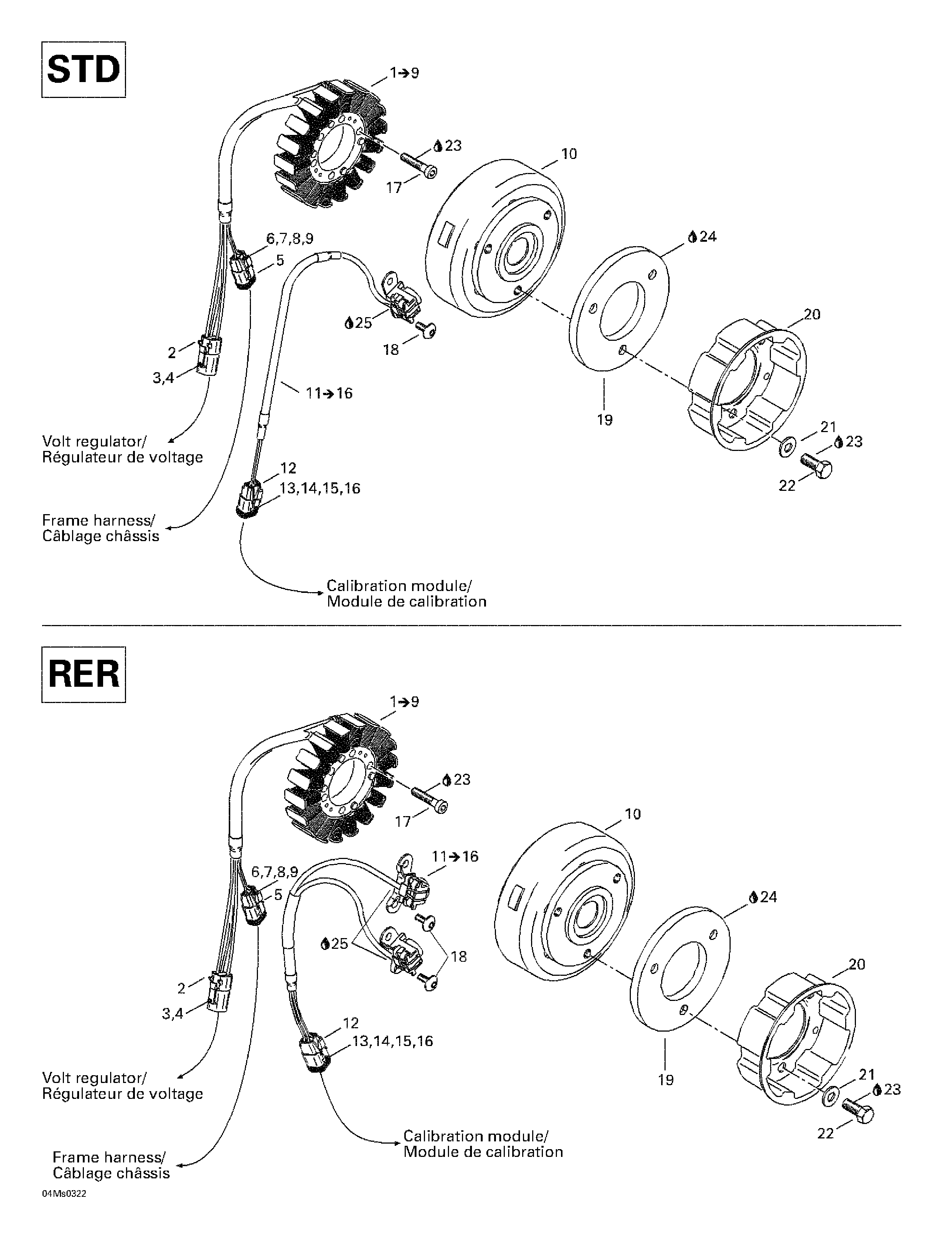

03- Magneto (12V, 360W) для BRP Ski-Doo Summit X 800 HO - 2003
-
№АртикулНазвание
-
1410922946 Stator Plate. Includes 1 - 9.Stator Plate. Includes 1 - 9.
-
2278001473 Female terminal housing (4 circuits)Female terminal housing (4 circuits)
-
3515175568 Male TerminalMale Terminal
-
4278001474 Female lock (4 circuits)Female lock (4 circuits)
-
5515175670 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
6278000632 Female terminalFemale terminal
-
7278001661 Female terminalFemale terminal
-
8515175675 Female lock (2 circuits)Female lock (2 circuits)
-
9293000052 PlugPlug
-
10410922953 FlywheelFlywheel
-
410922947 Flywheel (RER)Flywheel (RER)
-
11410922951 Pick-up ass'y. Includes 11 - 16.Pick-up ass'y. Includes 11 - 16.
-
410922948 Pick-up ass'y (RER)Pick-up ass'y (RER)
-
12515175670 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
515175672 Female terminal housing (4 circuits) (RER)Female terminal housing (4 circuits) (RER)
-
13278000632 Female terminalFemale terminal
-
14278001661 Female terminalFemale terminal
-
15515175675 Female lock (2 circuits)Female lock (2 circuits)
-
515175677 Female lock (4 circuits) (RER)Female lock (4 circuits) (RER)
-
16293000052 PlugPlug
-
17205063044 Socket head screw M6 x 30Socket head screw M6 x 30
-
18420640321 Screw M5 x 16 (STD)Screw M5 x 16 (STD)
-
420640321 Screw M5 x 16 (RER)Screw M5 x 16 (RER)
-
19420866756 Counter weightCounter weight
-
20420852532 Pulley startingPulley starting
-
21420827405 Flat washerFlat washer
-
22207182044 Hex. screw M8 x 20Hex. screw M8 x 20
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
25293530011 Sealant, Sikaflex black # 221Sealant, Sikaflex black # 221
